Lengths Available: |
6in, 10in, 12in, 1.5ft, 3ft, 6ft, 10ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-USB-ACB590-6IN, FE-USB-ACB590-10IN, FE-USB-ACB590-12IN, FE-USB-ACB590-01, FE-USB-ACB590-03, FE-USB-ACB590-06, FE-USB-ACB590-10, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Standard Type A Male |
Specification: |
USB 2.0 |
|
Connector B: |
USB Standard Type A Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
480Mbps |
|
Feature / Style: |
Data Transfer and Charge |
Images Length/Size Shown: |
6 IN |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|

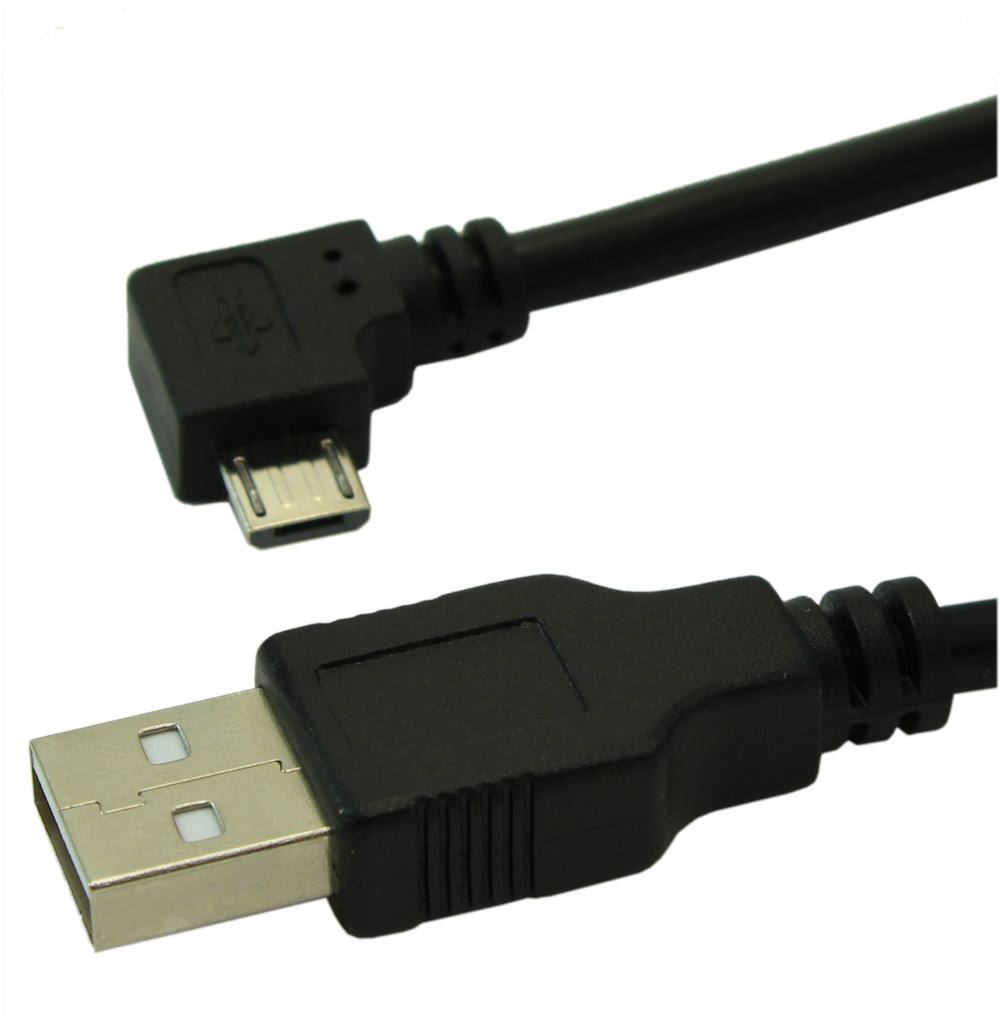

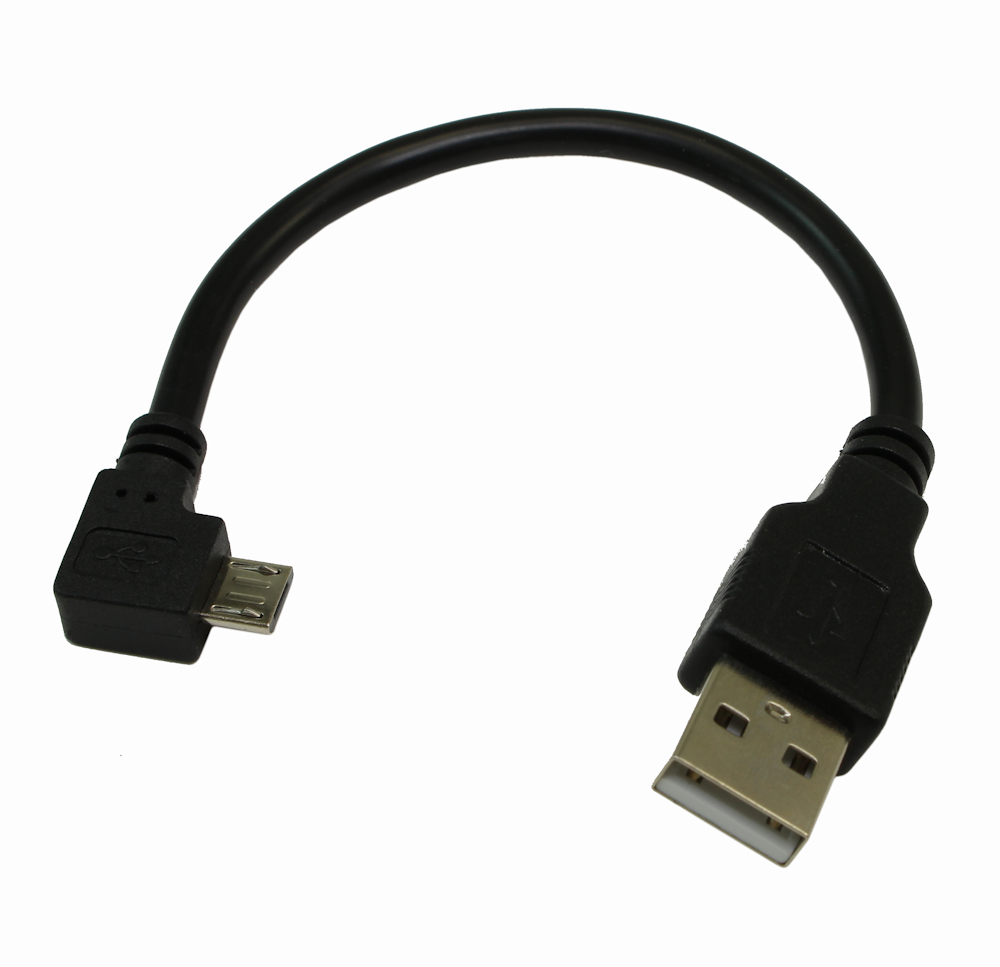

USB A Male to 90 degree ANGLED Micro USB 5 pin Male Cable, Black. This USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers. This cable uses a much thicker 24AWG for is conductor cables to ensure proper data transfer and optimal charging. The angled Micro-B connector is ideal for connecting smart-phones and other devices where the connection is at the bottom of such device, allowing the cable to immediately be angled to the side for easy access.
Cable Specifications:
- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
- Wire: CU (Pure Copper)
- Connector 1: 90 degree angled Micro-B 5 Pin Connector, Male
- Connector 2: Straight USB 2.0 Type A Connector, Male
- Outer Cable Diameter: 4.5mm.
Cable compatible with most Android and Windows smart-phones, and Blackberry phones manufactured since 2010 using the MICRO-B USB Connector. Newer model Samsung Galaxy phones and tablets, however, may now be using the USB Type-C connectors.
|
