USB 2.0 Type A Male to RIGHT ANGLED Micro-B 5-Pin Cable


 Lengths Available: 6in, 10in, 12in, 1.5ft, 3ft, 6ft, 10ft,
 Colors Available:
 Part Numbers this model: FE-USB-ACB590-6IN, FE-USB-ACB590-10IN, FE-USB-ACB590-12IN, FE-USB-ACB590-01, FE-USB-ACB590-03, FE-USB-ACB590-06, FE-USB-ACB590-10,

 Sales Category: USB Cables  Wire Gauge (AWG): 24 AWG, 28 AWG
 Connector A: USB Standard Type A Male  Specification: USB 2.0
 Connector B: USB Standard Type A Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate: 480Mbps
 Feature / Style: Data Transfer and Charge Images Length/Size Shown: 6 FT
# Positions: Shielding: Shielded
Convert From/To: Type:

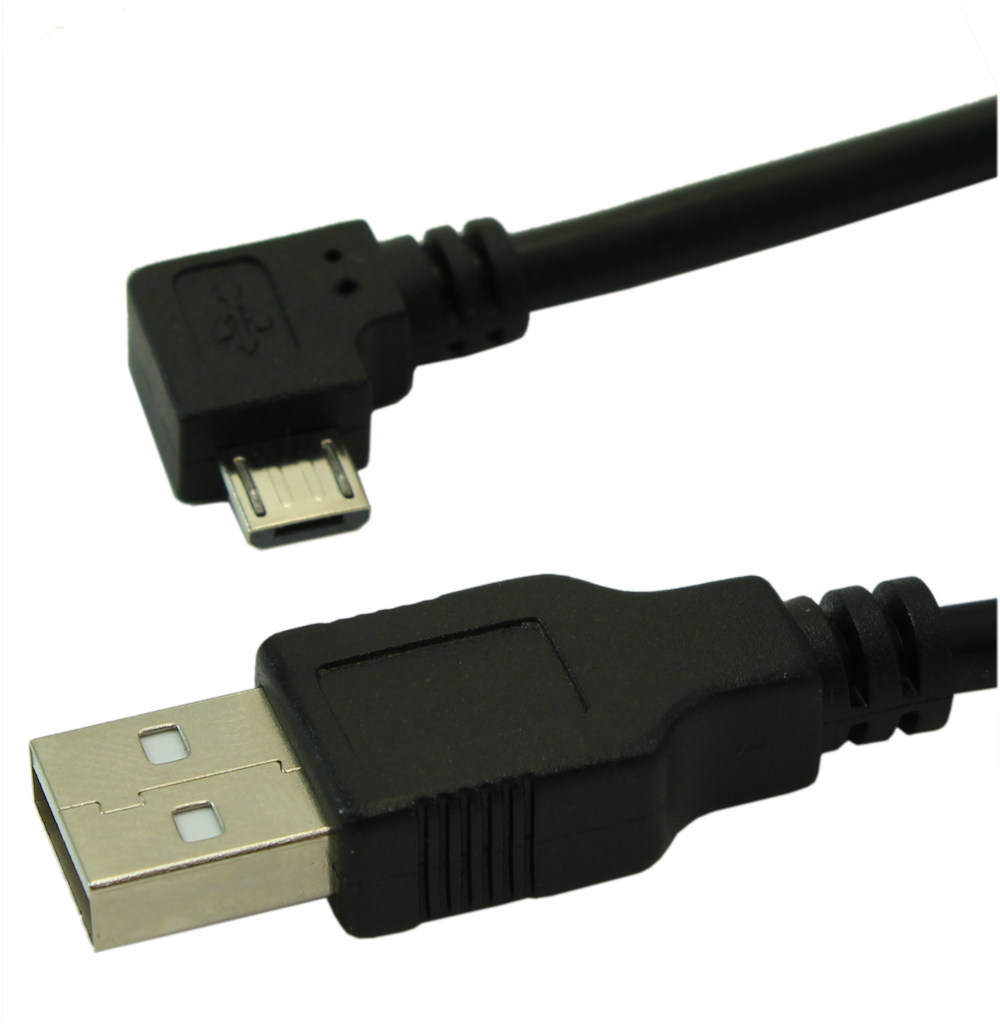

USB A Male to 90 degree ANGLED Micro USB 5 pin Male Cable, Black. This USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers. This cable uses a much thicker 24AWG for is conductor cables to ensure proper data transfer and optimal charging. The angled Micro-B connector is ideal for connecting smart-phones and other devices where the connection is at the bottom of such device, allowing the cable to immediately be angled to the side for easy access.
Cable Specifications:
  • Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
  • Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
  • Wire: CU (Pure Copper)
  • Connector 1: 90 degree angled Micro-B 5 Pin Connector, Male
  • Connector 2: Straight USB 2.0 Type A Connector, Male
  • Outer Cable Diameter: 4.5mm.

Cable compatible with most Android and Windows smart-phones, and Blackberry phones manufactured since 2010 using the MICRO-B USB Connector. Newer model Samsung Galaxy phones and tablets, however, may now be using the USB Type-C connectors.
