USB 2.0 Type A Male to SLIM Micro-B 5-Pin Cable, Nickel Plated


 Lengths Available: 6in, 8in, 10in, 1.5ft, 2ft, 3ft, 6ft, 10ft, 15ft,
 Colors Available:
 Part Numbers this model: FE-USB-ACB5-6IN, BE-150148, FE-USB-ACB5-10IN, FE-USB-ACB5-01, FE-USB-ACB5-02, FE-USB-ACB5-03, FE-USB-ACB5-06, FE-USB-ACB5-10, FE-USB-ACB5-15,

 Sales Category: USB Cables  Wire Gauge (AWG): 24 AWG, 28 AWG
 Connector A: USB Standard Type A Male  Specification: USB 2.0
 Connector B: USB Standard Type A Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate: 480Mbps
 Feature / Style: Data Transfer and Charge Images Length/Size Shown: 6 IN
# Positions: Shielding: Shielded
Convert From/To: Type:

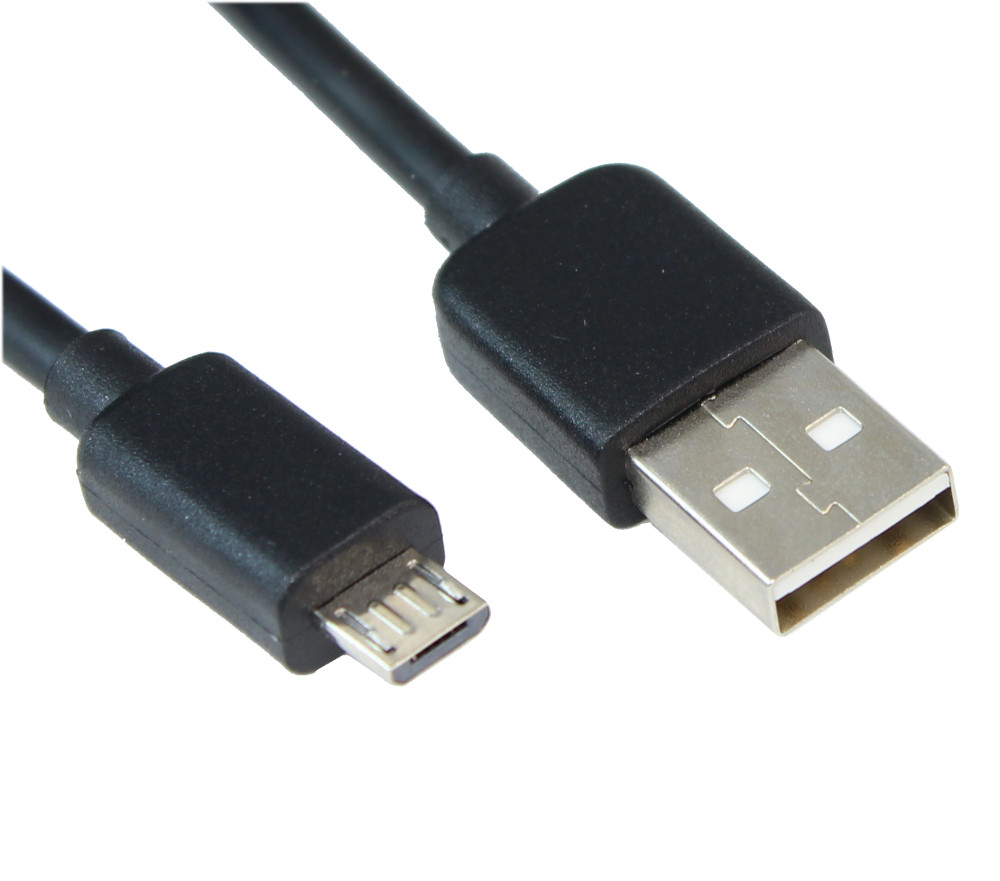

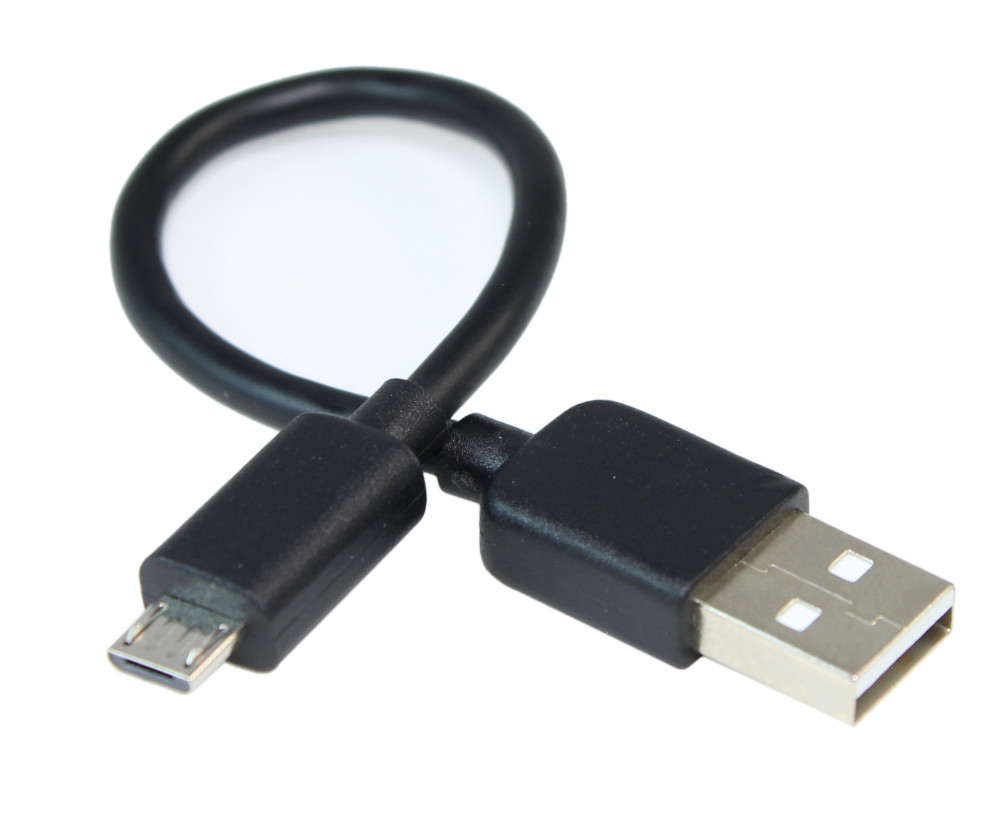

USB A Male to Micro USB 5 pin Male Cable, Black. This USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers. This cables is the most common USB cable used to charge and transfer data for most SMART-PHONES using the Android and Windows operating system.

When comparing our cables to our competitors, please note the WIRE THICKNESS of 28AWG (1P) + 24AWG*2C. Most of our competitors use 28/28AWG cables resulting in signal loss, slower charging times, and overall amperage loss.
Cable Specifications:
  • Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
  • Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
  • Wire: CU (Pure Copper)
  • Newer SLIM model providing thinner Micro-B connector end (7mm x 10.5mm)
  • RoHS Compliant
  • Outer Cable Diameter: 4.5mm.
