13 Port USB 2.0 Hub and USB Data Center, Powered

Lengths Available:
Colors Available:
Part Numbers this model:	FE-UH2-13

Sales Category:	Power (110 and 12v) Cables & Adapters	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Power 2-Prong 1-15P Male	Specification:
Connector B:	Power 2-Prong 1-15P Male	Number Ports:	N/A
Export Tariff Code (HST):	8471801000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	13 PORT
# Positions:		Shielding:
Convert From/To:		Type:

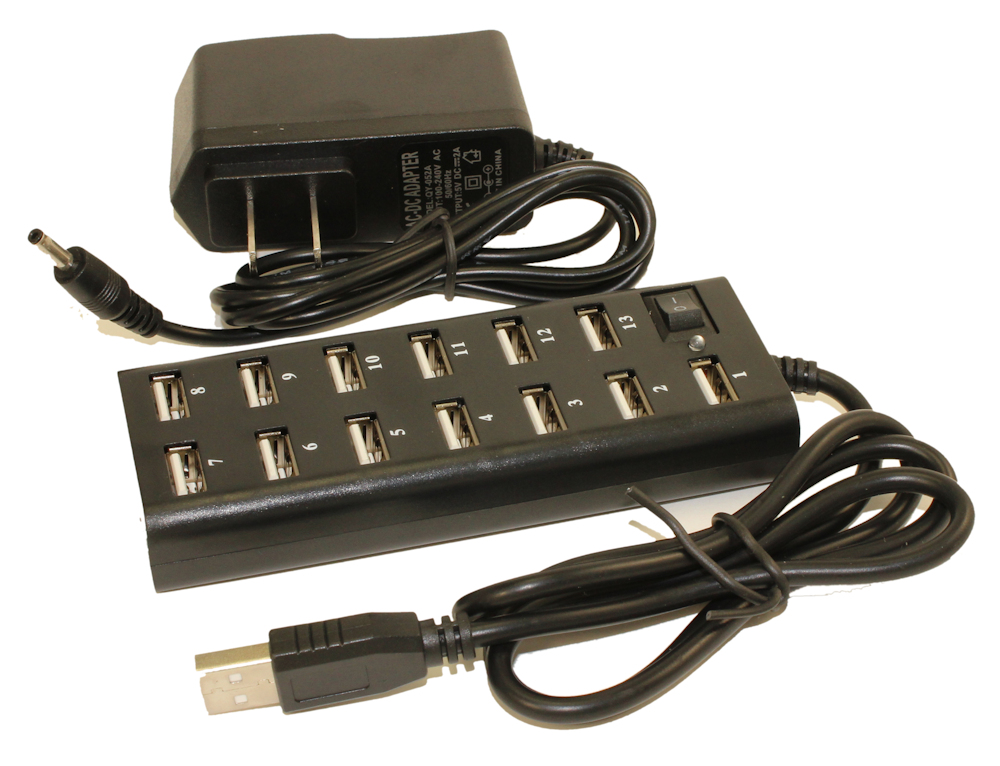

Connect 13 USB peripherals such as printer, scanner, flash drive, webcam, and microscope into a single USB port. Its independent power on/off switch allows you to use the BarHub as LOW AMP charging bay without turning on the computer. Includes universal AC power adaptor.

WARNING: The maximum power supplied per port is 500mA with a total drawing power of 2A for all connected devices. This device should NOT be used as a "charging center hub" to charge large quantities of devices such as smart-phones or iPads as such power draw will easily exceed the maximum 2 Amps total provided

Features:

13 USB 2.0 Ports

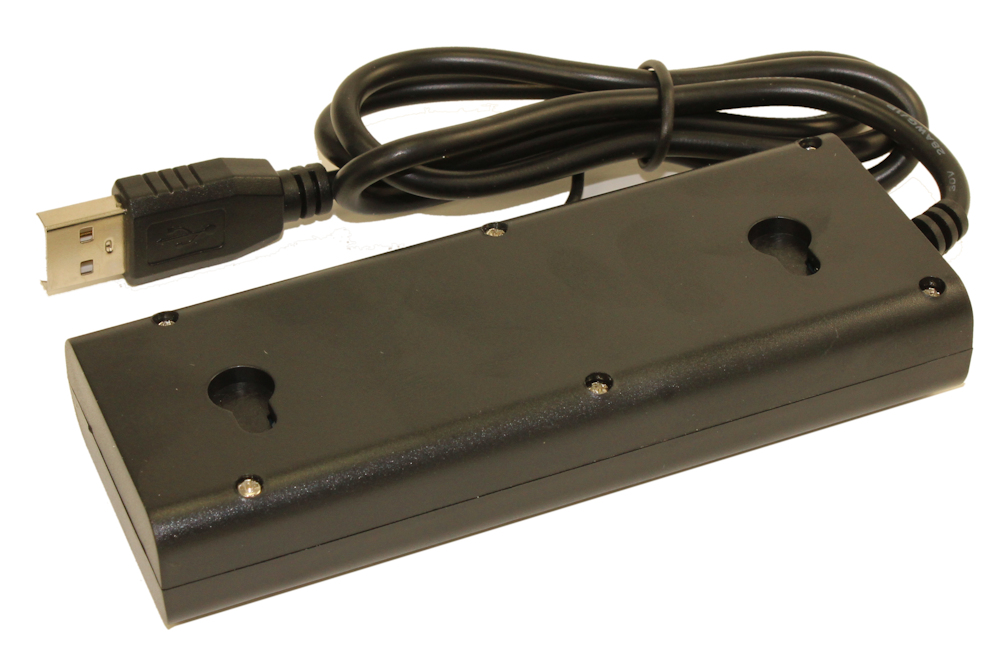

Space Saver Design with rear screw-tab mounts (screws not included)
5ft USB cable
500mA PER PORT maximum draw
2 Amp Power supply 5V/110/240v TOTAL AVAILABLE POWER
Uses a 3.5mm OD, 1.3mm ID barrel connector to provided external power to unit.
USB 2.0, FCC, CE
LED On indicator light
On/Off Power Button

Installation Note: The transformer barrel connector when inserted into the unit, protrudes approx. 1/4 inch. This is normal.
