Speakon/NL4 (TM) Speaker Wire/Cable, Stranded Copper, 2 Conductor


 Lengths Available: 3ft, 6ft, 10ft, 15ft, 20ft, 25ft, 50ft,
 Colors Available:
 Part Numbers this model: FE-SPKON-03, FE-SPKON-06, FE-SPKON-10, FE-SPKON-15, FE-SPKON-20, FE-SPKON-25, FE-SPKON-50,

 Sales Category: Speaker Wire  Wire Gauge (AWG): 12 AWG
 Connector A: Speakon (2-Pole) Female  Specification:
 Connector B: Speakon (2-Pole) Female  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 3 FT
# Positions: Shielding:
Convert From/To: Type:

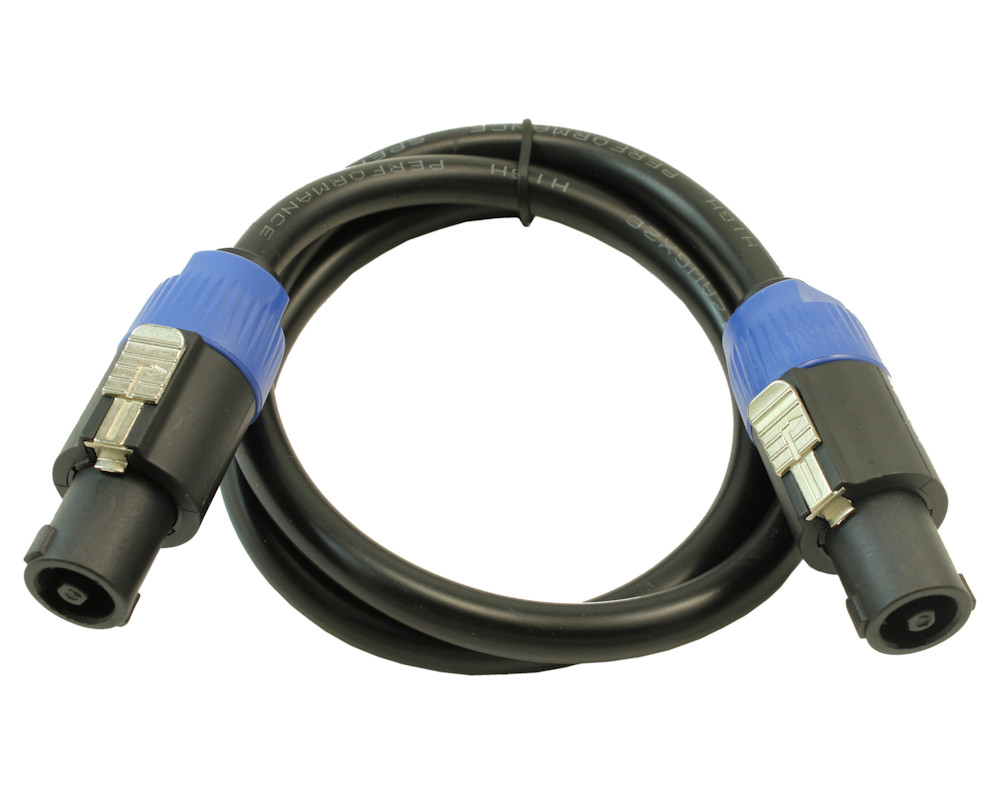

Connector your SPEAKON(TM) NL4 receiver to your SPEAKON speakers using these high-quality 12AWG stranded copper wire cables. 12AWG speaker wire is suitable for high wattage speaker systems (up to 600 watts at 16 ohms to 100ft). The locking SPEAKON connectors provided for a secure connection to both the receiver and speaker system. These 2-conductor speaker connection cables are made with high-purity, 12 AWG copper wire for maximum current handling capability. They feature black and blue colored plastic NL4FC connectors at each end, with spring-loaded lock release latches. These cables are TWO CONDUCTOR cables. While the SPEAKON end connectors supports 4 separate conductors, this cable is wired as one pair and wired to 1+/1-. Please see the TECHNICAL DOCUMENT for further clarity.

Details and Specifications:
  • 12AWG CU (Pure Copper) stranded cables
  • 2 SPEAKON 2/NL4 twist connectors at each end of the speaker wire (NL4FC type)
  • Strand Count (per wire): 65 wires
  • Gauge: 12AWG (Suitable for up to 600watts at 100ft)
  • Cable Tech Spec: 12AWG(65/0.254BC) * 2C OD: 10.0mm Black
NOTE: SpeakON is a registered trademark (TM) of Neutrik. This product is NOT manufactured by Neutrik.
