Lengths Available: |
1ft, 1.5ft, 2ft, 3ft, 6ft, 8ft, 10ft, 12ft, 15ft, 20ft, 25ft, 50ft, 75ft, 100ft, 150ft, 200ft, 250ft, 500ft, 1000ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-1FT-SDI6, FE-SDI6-01, FE-SDI6-02, FE-SDI6-03, FE-SDI6-06, FE-SDI6-08, FE-SDI6-10, FE-SDI6-12, FE-SDI6-15, FE-SDI6-20, FE-SDI6-25, FE-SDI6-50, FE-SDI6-75, FE-SDI6-100, FE-SDI6-150, FE-SDI6-200, FE-SDI6-250, FE-SDI6-500B, FE-SDI6-1000B, |
| |
|
|
Sales Category: |
SDI (Serial Digital Interface) Cables |
Wire Gauge (AWG): |
18 AWG |
|
Connector A: |
BNC Male |
Specification: |
|
|
Connector B: |
BNC Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Double Shielded |

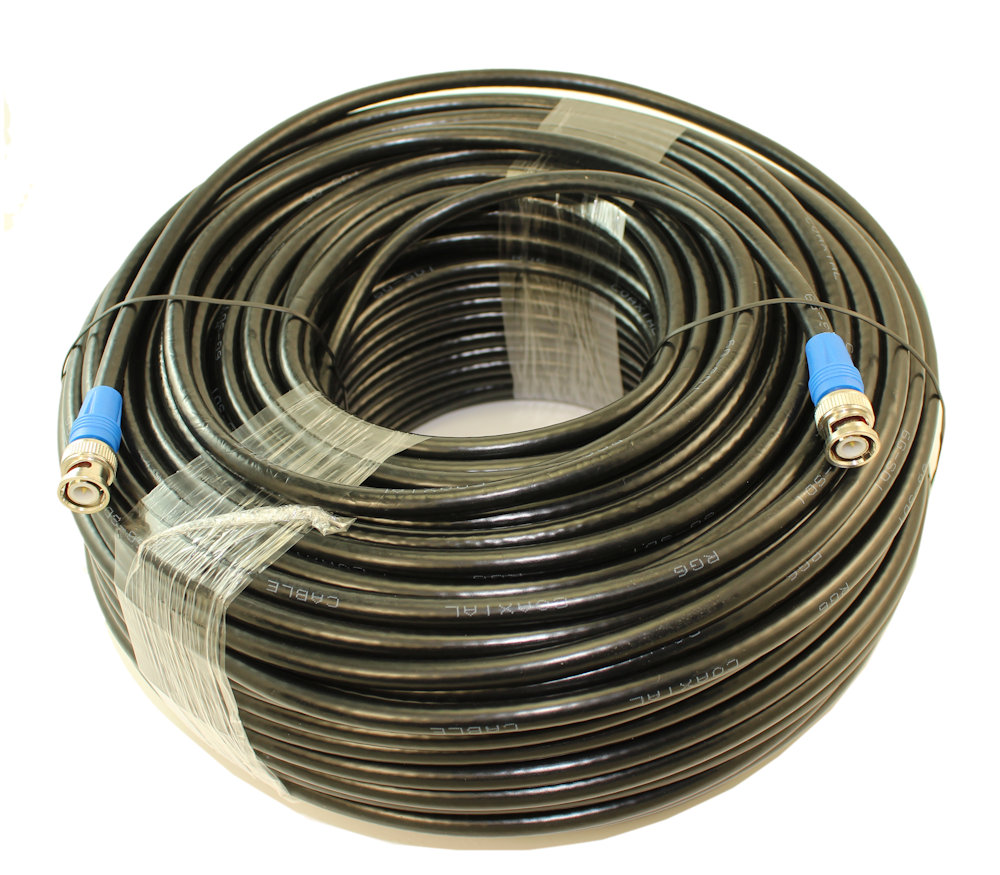

Images Length/Size Shown: |
200 FT |
|
# Positions: |
|
Shielding: |
Double Shielded |
|
Convert From/To: |
|
Type: |
|
|
This specialize BNC cable meets the 6G-SDI (Serial Digital Interface) standards to support 6 Gbps, and maximum resolutions to 4Kx2K (2160P30 YUV 4:2:2) at 30Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 6G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, and 3G-SDI specifications (SMPTE 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 6G-SDI cabling instead of HD-SDI, or 3G-SDI provides the future-proofing you need!
Specifications- Meets SMPTE ST-2081 6G-SDI Standards
- Supports to 6 Gbps or better
- Supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2
- Cable Spec: RG6/U (Solid PURE Copper) 18AWG, Dual Shielded

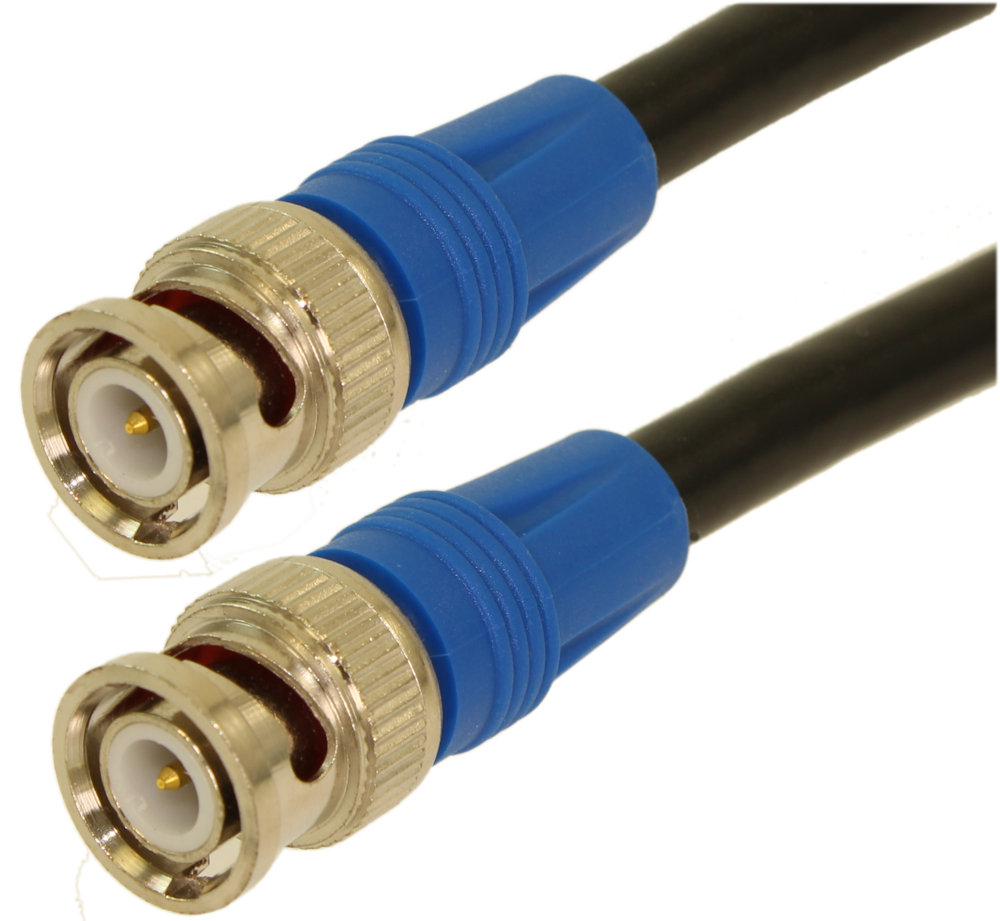

- Gold plated center connecting pin, nickel plated outer BNC ground connector
- Professional quality BNC connector with fully-wrapped shielding end-to-end
- Color: Black, with Blue PVC molded end connectors
- 75 Ohm
|
