RG6/18AWG 6G-SDI (4K) Bulk Coax HD Video Cable, 6Ghz, Black


 Lengths Available: 1ft, 1.5ft, 2ft, 3ft, 6ft, 8ft, 10ft, 12ft, 15ft, 20ft, 25ft, 50ft, 75ft, 100ft, 150ft, 200ft, 250ft, 500ft, 1000ft,
 Colors Available: Black
 Part Numbers this model: FE-1FT-SDI6, FE-SDI6-01, FE-SDI6-02, FE-SDI6-03, FE-SDI6-06, FE-SDI6-08, FE-SDI6-10, FE-SDI6-12, FE-SDI6-15, FE-SDI6-20, FE-SDI6-25, FE-SDI6-50, FE-SDI6-75, FE-SDI6-100, FE-SDI6-150, FE-SDI6-200, FE-SDI6-250, FE-SDI6-500B, FE-SDI6-1000B,

 Sales Category: SDI (Serial Digital Interface) Cables  Wire Gauge (AWG): 18 AWG
 Connector A: Blunt Cut  Specification:
 Connector B: Blunt Cut  Number Ports: N/A
 Export Tariff Code (HST): 8544492000  Transfer Rate:

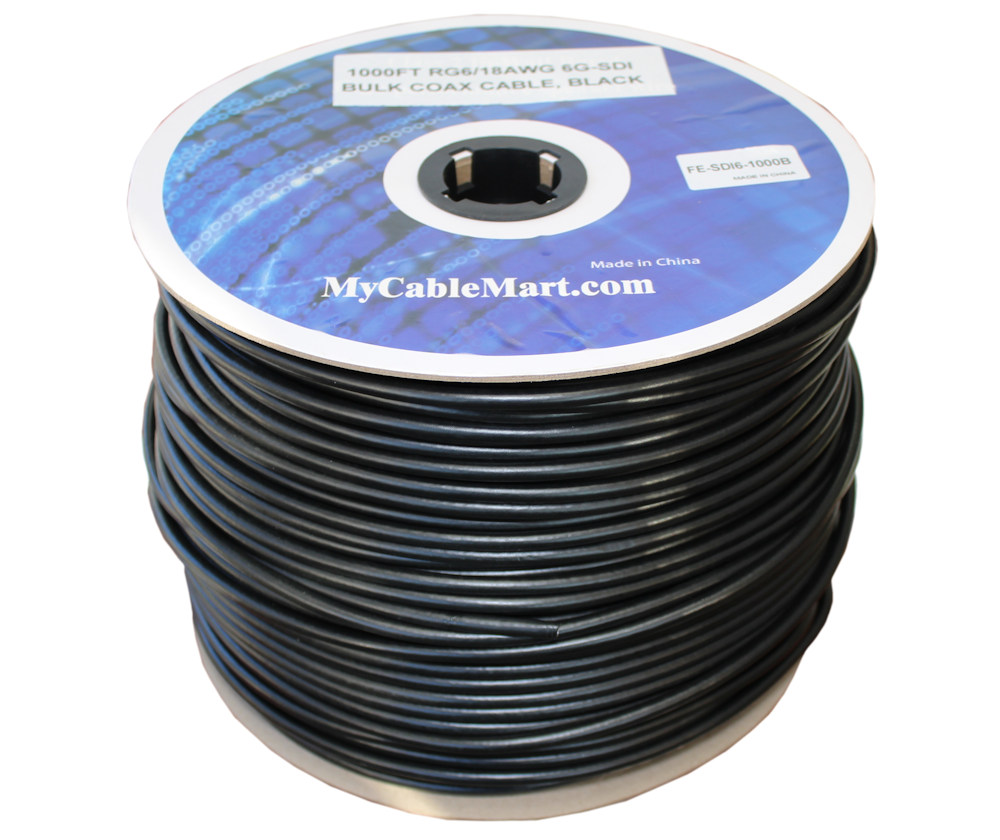

 Feature / Style: Quad Shield Images Length/Size Shown: 1000 FT
# Positions: Shielding:
Convert From/To: Type:

This specialized 6G-SDI (Serial Digital Interface) standards to support 6 Gbps, and maximum resolutions to 4Kx2K (2160P30 YUV 4:2:2) at 30Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 6G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, and 3G-SDI specifications (SMPTE 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 6G-SDI cabling instead of HD-SDI, or 3G-SDI provides the future-proofing you need!

Specifications:
  • 6G-SDI RG6 Coaxial Cable
  • Meets SCTE IPS-SP-001, UL1655, UL13, UL444
  • RoHS 3 Compliant
  • 18AWG bare solid copper core (1.0mm)
  • Nominal Thickness: 0.07 inches
  • Diameter from Shielding: 5.4mm
  • Outer Insulation Diameter: 7.0mm
  • Diameter from Dielectric: 4.8mm
  • Braided and Foil shielded
  • Temperature Rating: -20 to 60 C
  • Impendence: +-3.0 Ohms 75
  • Conductor DCR@20C: 28.6
  • Capacitance: 15.5 pF/ft
  • Performance: 1Mhz to 3000Mhz: 0.89 to 37.88 db/100m) - see PDF document for complete table

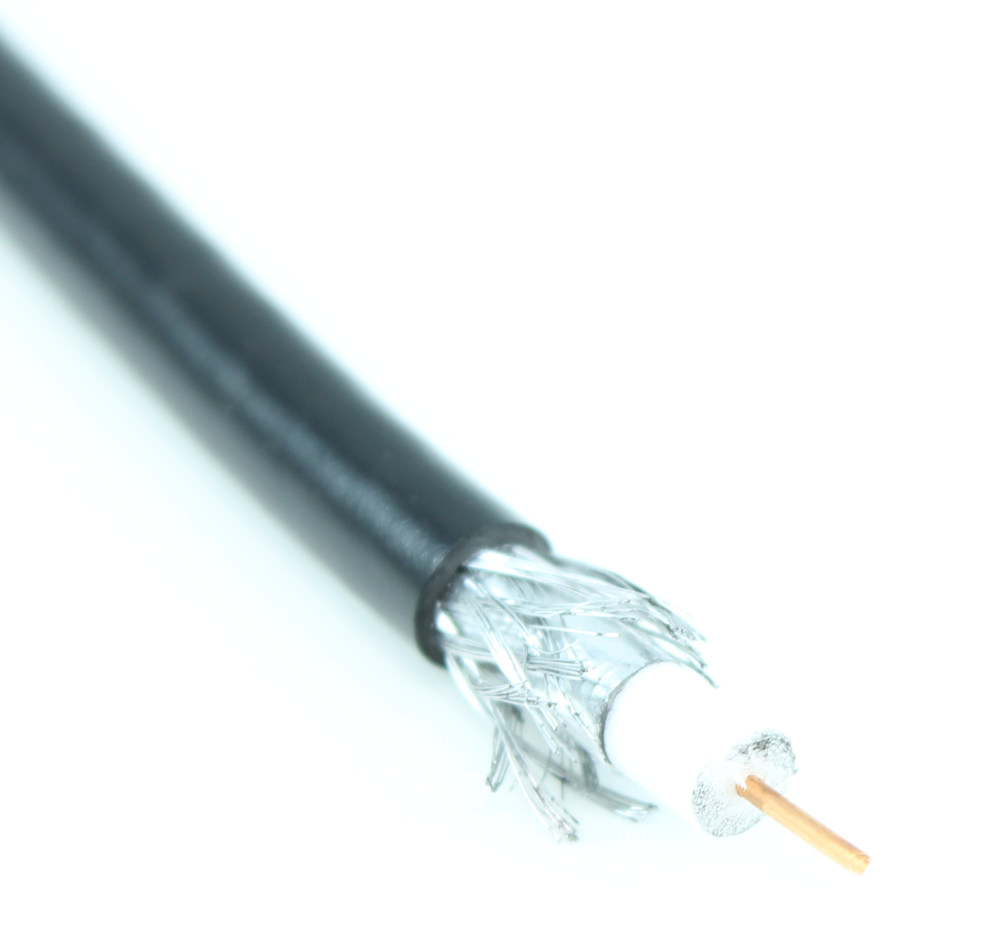

Installation Tip: Strip off 1/2inch of the insulation, shielding, AND dielectric (white insulation material) leaving just the solid copper core exposed. Using our FE-ADT-366 connector end, attach the brass center connection pin to the copper core wire, and insert it through the female opening, through the small hole. Some force will be required to do this, until the brass pin is flush to the opening of the BNC connector. Now proceed to use the compression tool to tighten the connector to the outer insulation.


UL Standards Met:
UL1655: Standard that outlines the requirements for the safety of coaxial and coaxial/optical-fiber cables, including their construction, testing, and marking. It applies to both single and multiple cables
UL13: This is one type of mark that is given to cables that meet the UL 13 "Power-limited Circuit" standard, which is designed to test the safety of cables when they are installed in buildings. There are other similar marks in the UL 13 standard for different kinds of installation, and CL2 indicates general use
UL444: Signals industry stakeholders that a product has undergone comprehensive evaluation and meets the rigorous safety standards outlined in UL 444, Standard for Safety of Communications Cables, which is a binational consensus standard for the U.S. and Canada
