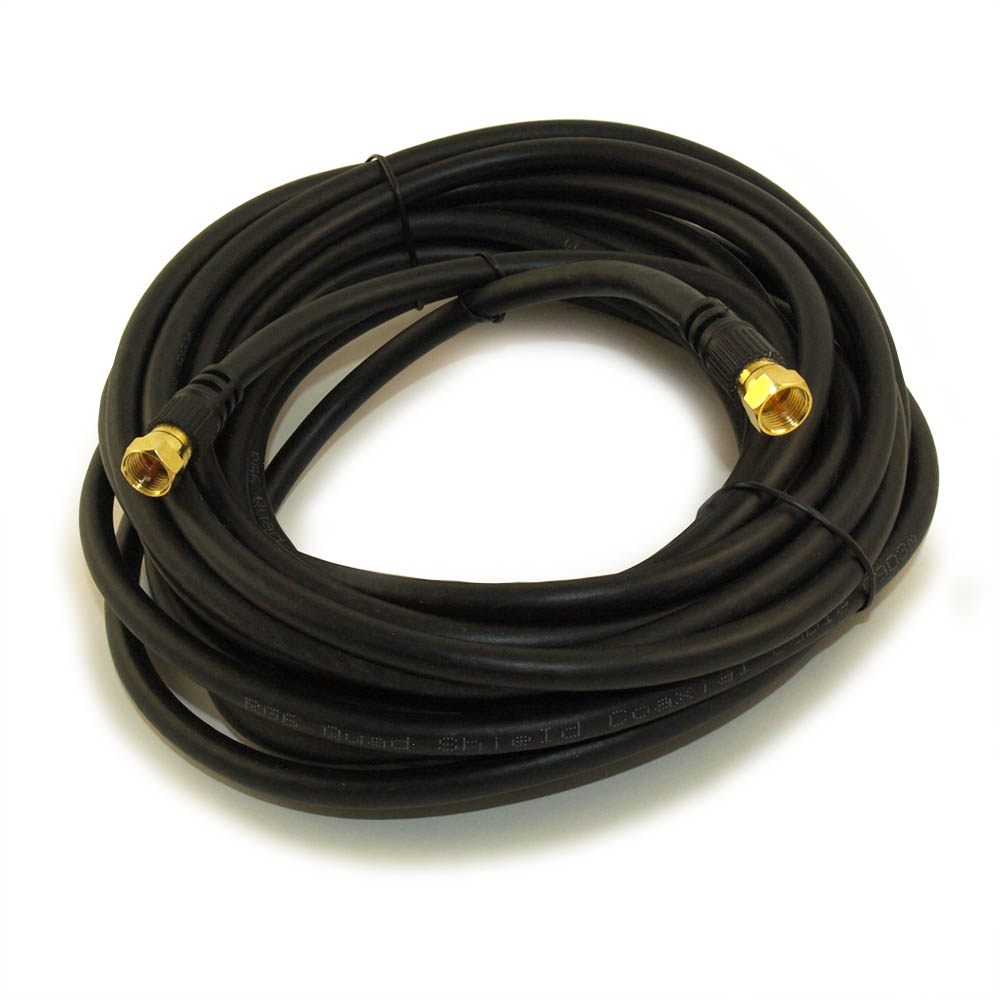

RG6 QUAD SHIELD Black HI-BANDWIDTH Coax Cable F-type Gold Plated

Lengths Available:	8in, 1.5ft, 2ft, 3ft, 6ft, 12ft, 15ft, 20ft, 25ft, 35ft, 50ft, 75ft, 100ft, 1000ft,
Colors Available:	Black, White,
Part Numbers this model:	FE-RG6-8IN, FE-RG6-01, FE-RG6-02, FE-RG6-03, FE-RG6-06, FE-RG6-12, FE-RG6-15, FE-RG6-20, FE-RG6-25, FE-RG6-35, FE-RG6-50, FE-RG6-75, FE-RG6-100, WN-RG6QPWH4,

Sales Category:	RG6 Coax Cables and Adapters	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Coax F-Type Male	Specification:
Connector B:	Coax F-Type Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:	Double Shielded	Images Length/Size Shown:	25 FT
# Positions:		Shielding:	Quad Shielding
Convert From/To:		Type:

This premium RG6 Type F Cable is perfect for connecting up your Satellite or Cable Box receiver. Each end is gold-plated to ensure a perfect connection and to resist oxidation. It is satellite rated and CL-2 (Class 2) rated for in-wall installation. RG6 QUAD SHIELD coax cable is recommended for all newer satellite and cable box receivers to ensure perfect 1080P and 4Kx2K Ultra HD signal connectivity. While this specific cable is not rated for outdoor use, use of the cable to connect to an outdoor off-air antenna should provide years of trouble-free use as well.

Specifications:

Standard Coax F-type connection
Quad (4 times) shielded to virtually eliminate any outside interference
Insulation Material: PVC 45pa
Aluminum Braid / Foil / Braid / Foil shielded
Cable Outer Diameter: 7.0mm
Color: Black
18 AWG center core wire (.040 +- Bare Copper-Clad Steel Conductor)
75 Ohm Rated
Frequency Rating: 2200Mhz (Sweep Tested to 3.0GHz)
RoHS Compliant

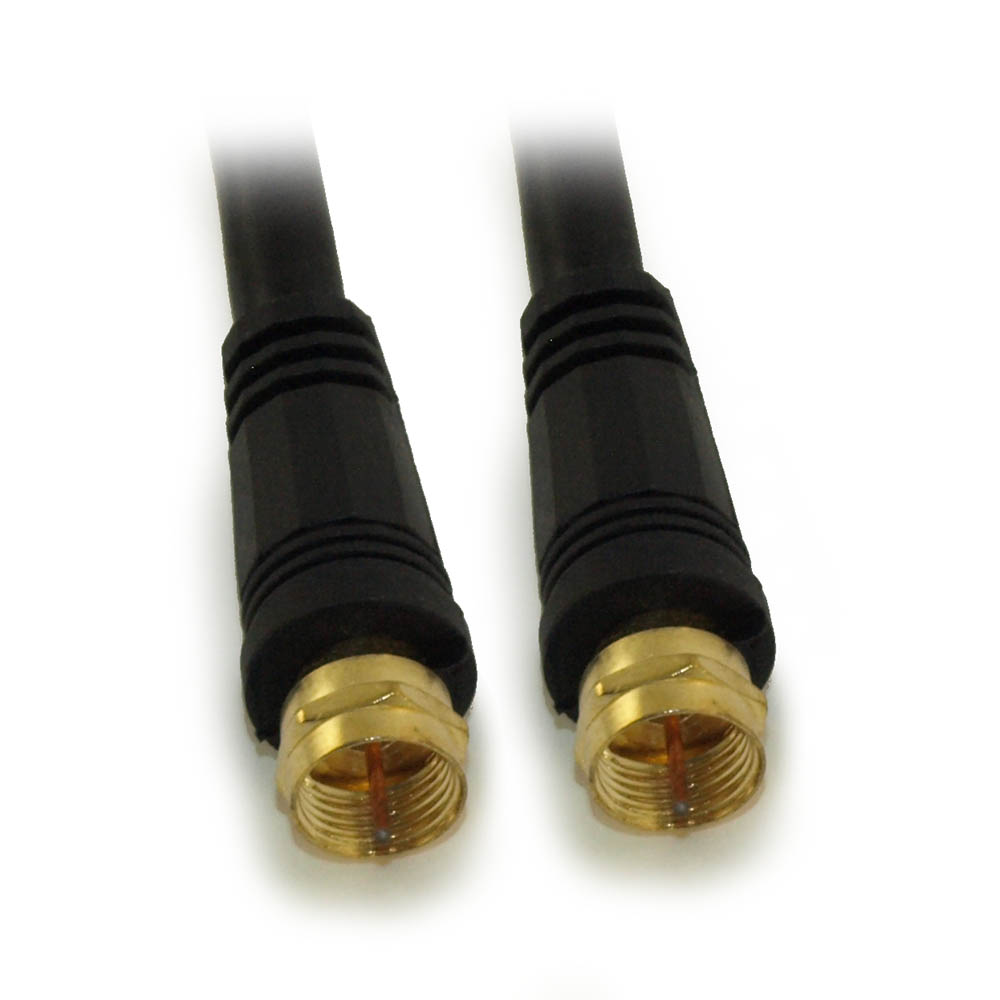

Gold plated connector ends
In-wall (CL-2) rated
