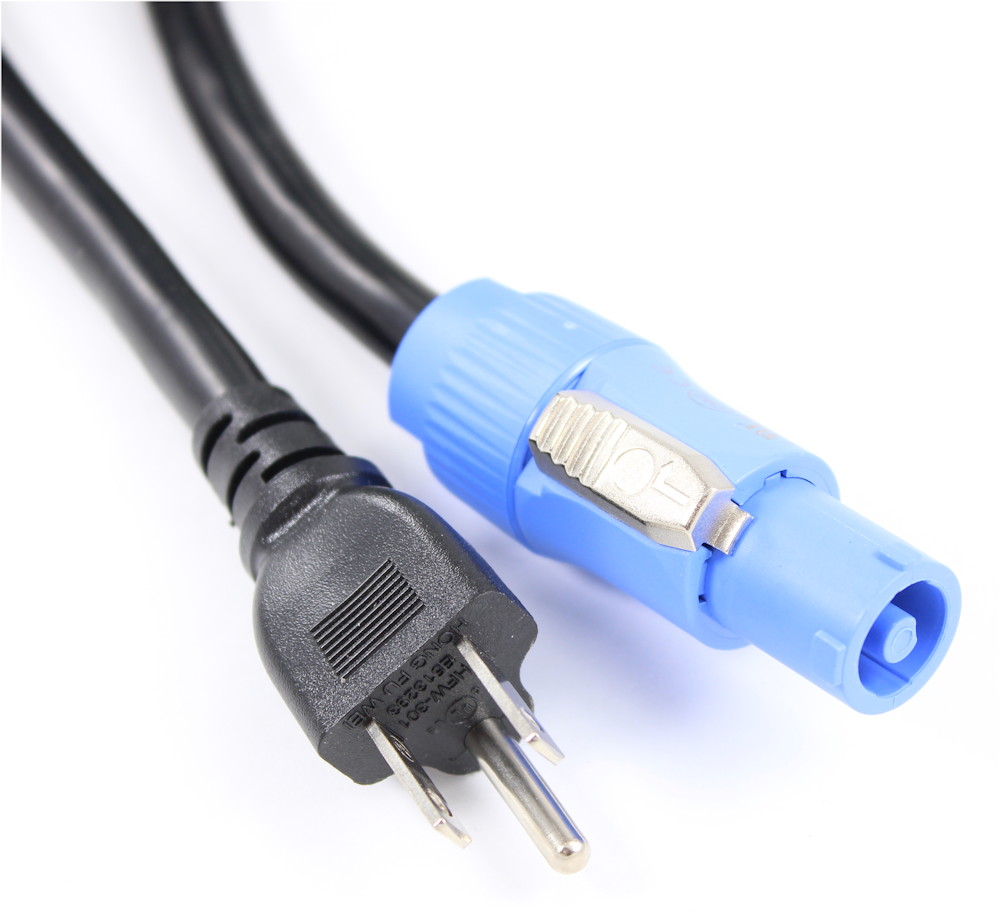

PowerCON 20Amp NAC3FCA to 5-15P 12AWG UL Listed Cable

Lengths Available:	1ft, 3ft, 6ft, 10ft, 15ft, 25ft, 50ft,
Colors Available:
Part Numbers this model:	FE-PCA515-01, FE-PCA515-03, FE-PCA515-06, FE-PCA515-10, FE-PCA515-15, FE-PCA515-25, FE-PCA515-50,

Sales Category:	PowerCON Cables	Wire Gauge (AWG):	12 AWG
Connector A:	NAC3FCA Power In Blue	Specification:
Connector B:	Power 3-Prong 5-15P Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:

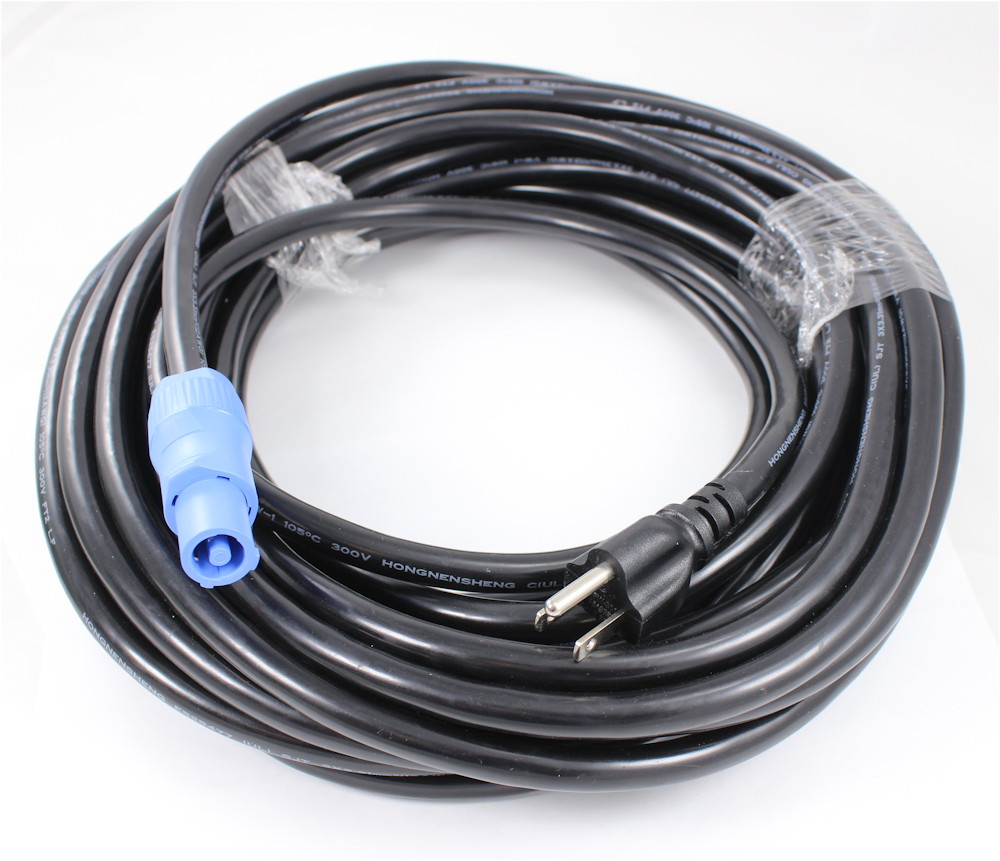

Feature / Style:		Images Length/Size Shown:	50 FT
# Positions:		Shielding:
Convert From/To:		Type:

powerCON is an electrical connector originally manufactured by Neutrik for connecting mains power to equipment in a small space. It looks and works similarly to the Speakon connector, with the line connector inserted in the chassis connector and twisted to make contact and lock. Both line and chassis connectors are fully insulated even when disconnected.

Specifications and Details:

Rating: 20 Amps
Connector Colors: Type A (NAC3FCA) Blue, 5-15P (Black) Gray
Wire Gauge: 12AWG
UL Listed
IP65 Rated (dust and water resistant)
