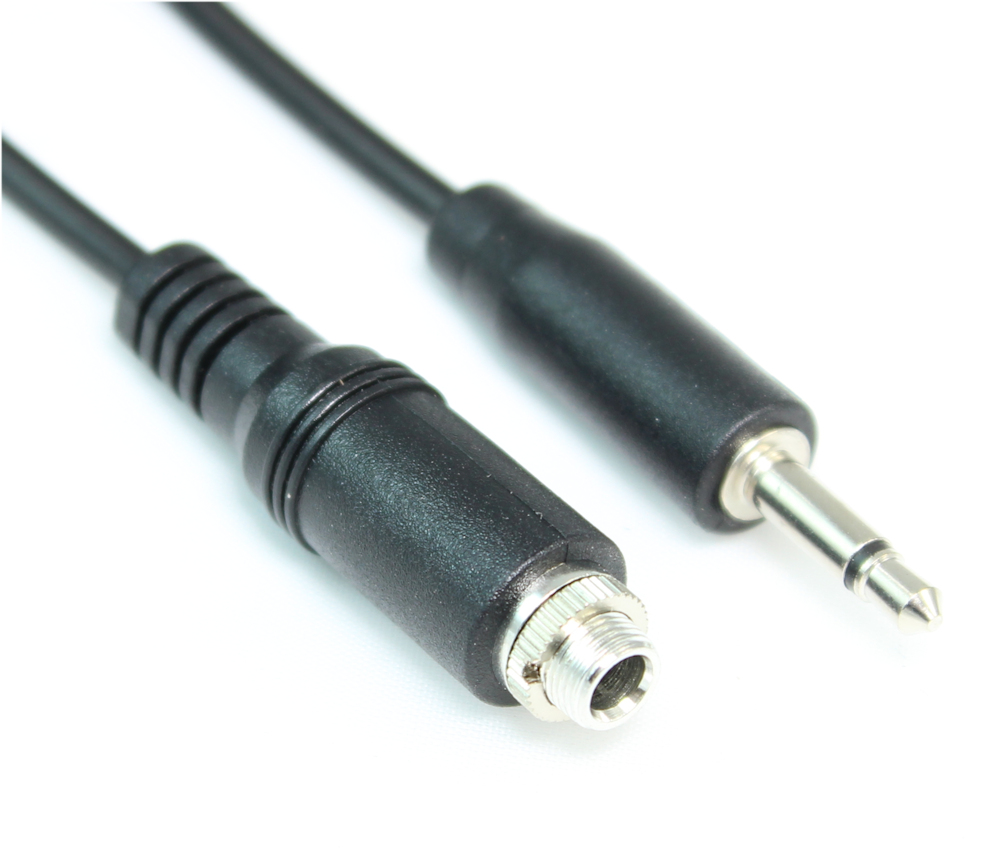

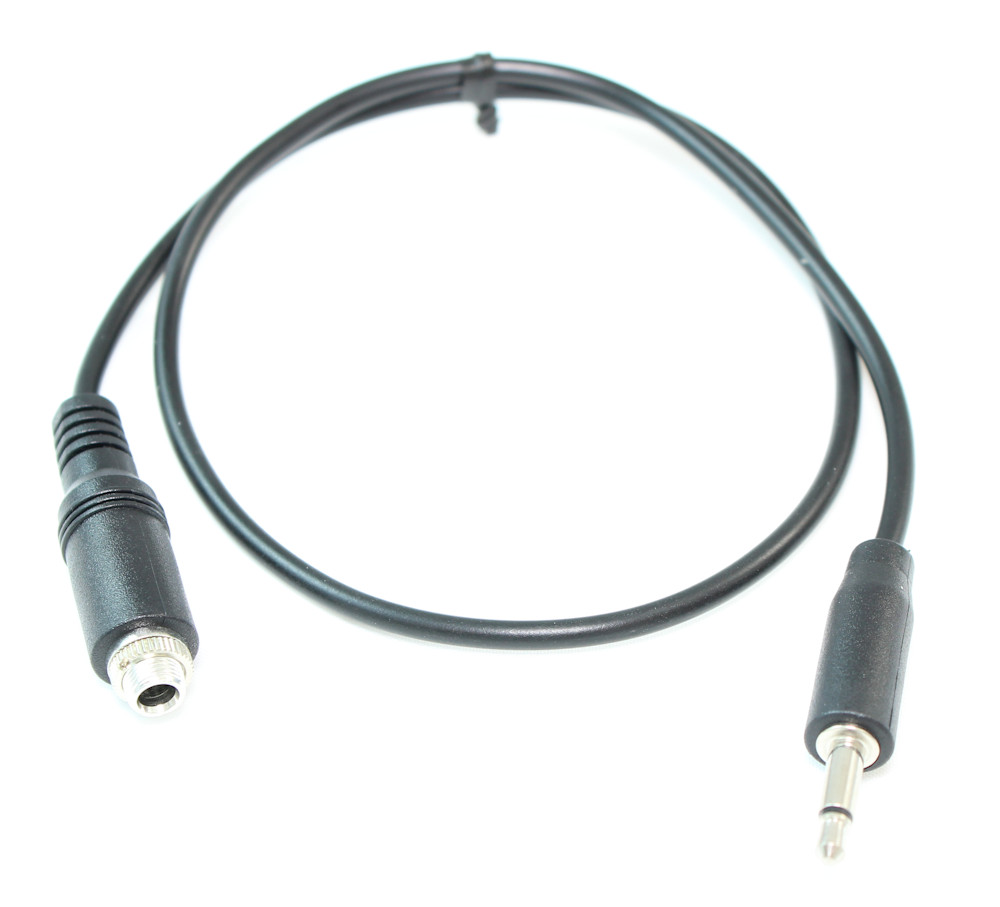

3.5mm MONO TS Male to Female Panel-Mount Extension Cable
|
|
|
|
|
|
|
Lengths Available: |
6in, 1.5ft, 3ft, 6ft, 10ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-MONOPM-6IN, FE-MONOPM-01, FE-MONOPM-03, FE-MONOPM-06, FE-MONOPM-10, |
| |
|
|
Sales Category: |
3.5MM & 2.5MM Cables and Adapters |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
3.5mm TS Mono Male |
Specification: |
|
|
Connector B: |
3.5mm TS Mono Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Mono |
Images Length/Size Shown: |
1.5 FT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Specifically design for computer audio applications, it works with any PC sound card, speaker, headset, portable CD players, and microphone with a 2 conductor (1 black ring) 3.5mm MONO (1 channel) connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This cable is ideal for general purchase audio. The FEMALE connector end can be PANEL-MOUNTED by loosing the ring-bolt from the threaded end
Specifications:- Connector: 1 3.5mm (1/8'') Male, 1 3.5mm (1/8'') Female
- Outer Diameter of Cable: 3.00mm
- 2 Conductor MONO TS, 28AWG CCS
- Nickel Plated Connectors
- Insulation Type: PVC 1.00mm
- Outer Diameter of Molded Connector: 10.3mm
- Cable Shielding: No
- Panel-Mountable (Max panel material width: 3mm)
- Ferrite Cores: No
|
