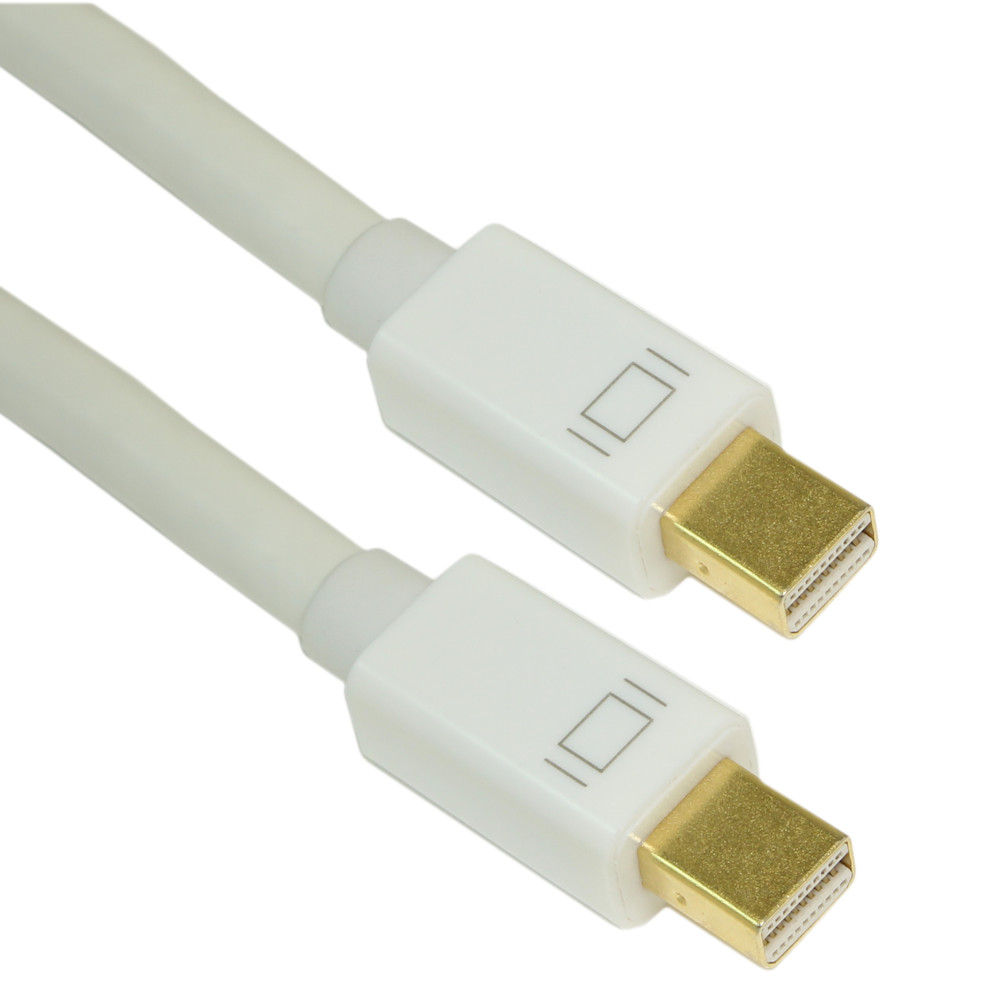

Mini DisplayPort (v1.4/8K@30) Cable, 30AWG, Gold Plated, White


 Lengths Available: 3ft, 6ft, 10ft,
 Colors Available: White
 Part Numbers this model: FE-MDMD14-03, FE-MDMD14-06, FE-MDMD14-10,

 Sales Category: Display Port and Mini-Display Port  Wire Gauge (AWG): 30 AWG
 Connector A: Mini DisplayPort Male  Specification:
 Connector B: Mini DisplayPort Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 6 FT
# Positions: Shielding: Double Shi
Convert From/To: Type:

DisplayPort version 1.3 was approved on 15 September 2014. DisplayPort v1.3 offers dazzling resolutions up to 8K@30Hz, with support also for 4K@120Hz, and of course previous v1.2 resolutions and features. This standard increases overall transmission bandwidth to 32.4 Gbit/s with the new HBR3 mode featuring 8.1 Gbit/s per lane (up from 5.4 Gbit/s with HBR2 in version 1.2), for a total data throughput of 25.92 Gbit/s after factoring in 8b/10b encoding overhead. This bandwidth is enough for a 4K UHD display (3840 x 2160) at 120 Hz with 24 bit/px RGB color, a 5K display (5120 x 2880) at 60 Hz with 30 bit/px RGB color, or an 8K UHD display (7680 x 4320) at 30 Hz with 24 bit/px RGB color.

Resolutions actually obtained will be dependent on quality of source output and display input. Not all device hardware will support these resolutions. Support to 8K@30Hz may be limited to 6ft maximum cable length

Specifications and Features
  • Supports DP v1.3
  • Connectors: MINI DisplayPort to MINI DisplayPort
  • Resolution support to 8K@30Hz
  • HBR3 (High Bit Rate 3): 8.10 Gbit/s per lane
  • Maximum Total Bandwidth: 32.40 Gbit/s
  • Maximum Total Data Rate (Sustained): 25.92 Gbit/s
  • ITU-R BT.2020 Support
  • Audio: Sample Rate - 768 kHz / 24bits / 8channels
  • 30AWG
  • Color: White

This cable is NOT a Thunderbolt(TM) cable - it is a MINI-DISPLAYPORT cable. This MAY or MAY NOT be compatible with Apple(TM) products that require it use Thunderbolt(TM) technologies
