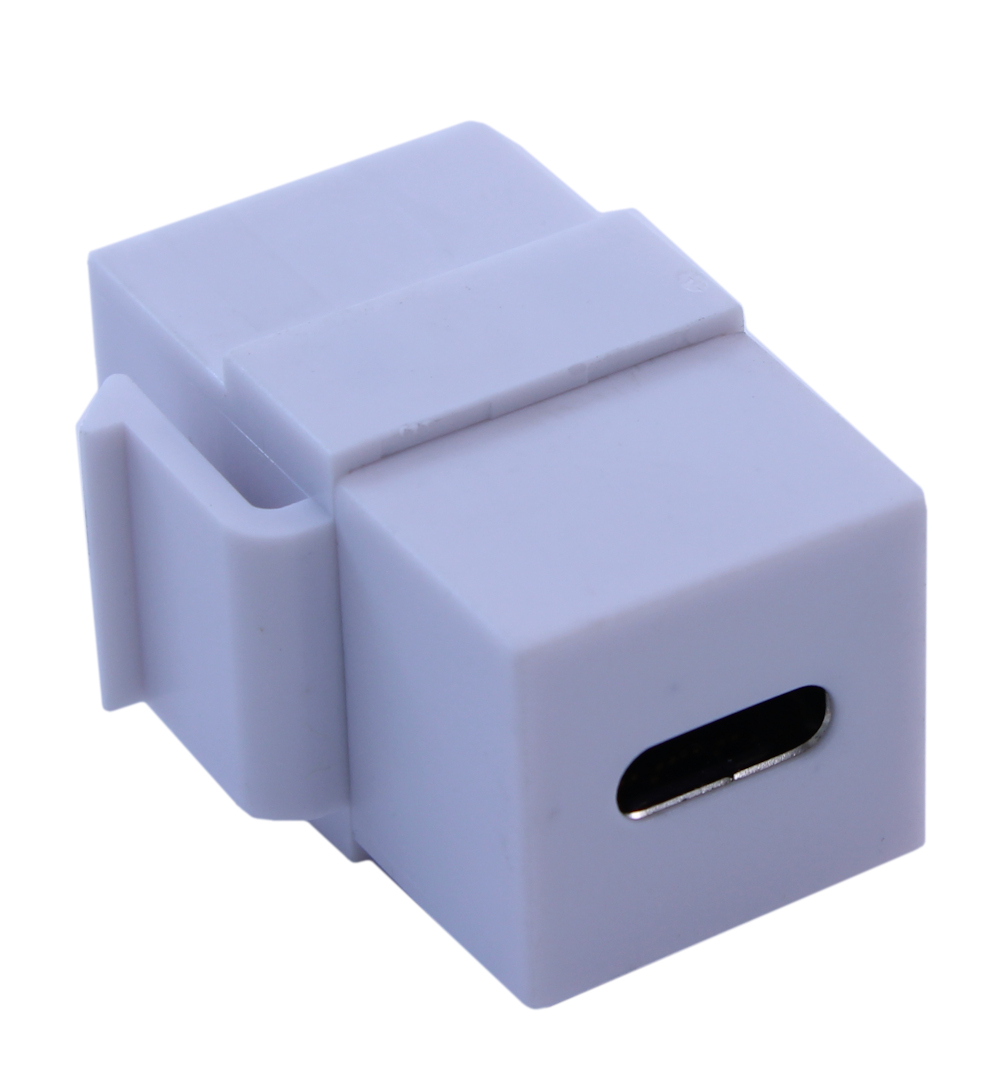

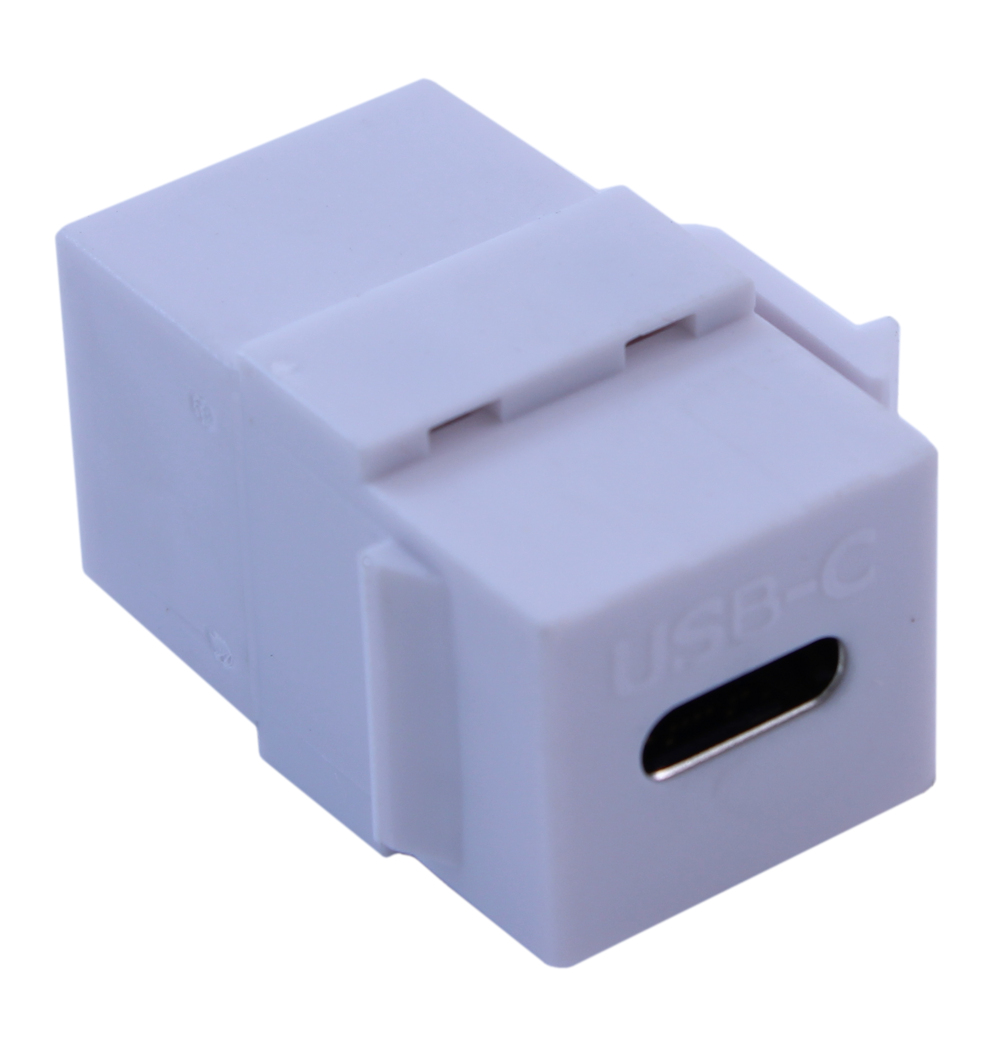

Keystone Jack Insert/Coupler USB 3 Type C to C, Female, Coupler Type, White
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
Black, White,
|
|
Part Numbers this model: |
FE-KEY-USB-C-WH |
| |
|
|
Sales Category: |
Wallplate: Keystone |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
USB Type C Female |
Specification: |
|
|
Connector B: |
USB Type C Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694030 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
This is a COUPLER TYPE keystone connector for USB v3.1, with female type C connections on both sides.
Specifications- USB 3.1 Type C Female to Female Connectors
- Support for up to 5Gbps
- Supports 60 Watt and 100 Watt power delivery mode
- Can be used as a USB Type C Coupler
- Color: White
- NOTE: Use of long USB cables with this keystone insert WILL degrade performance
IMPORTANT NOTE ABOUT CONNECTED CABLE ORIENTATION: Most USB-C cables will have a chip embedded in ONE or BOTH connector ends. When TWO USB-C cables are used in a circuit (coupled with this connector for example), the joined USB cable circuit will ONLY work with the USB-C cables attached to the coupler in ONE orientation. This is a design limitation of coupling 2 USB-C cables together and MAY require you to "mark" one side of the end of your visible USB-C cable to identify which orientation supports data. Charging capabilities (which is NOT affected) will work in EITHER orientation.
|
