Keystone Jack Insert/Punch-down - Cat 6 RJ45 Networking, White
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
Blue, Gray, Green, Ivory, Metallic, Orange, Red, White, Yellow,
|
|
Part Numbers this model: |
FE-KEY-CAT6KIT-WH |
| |
|
|
Sales Category: |
Wallplate: Keystone |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
RJ45 Ethernet Female |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694030 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |

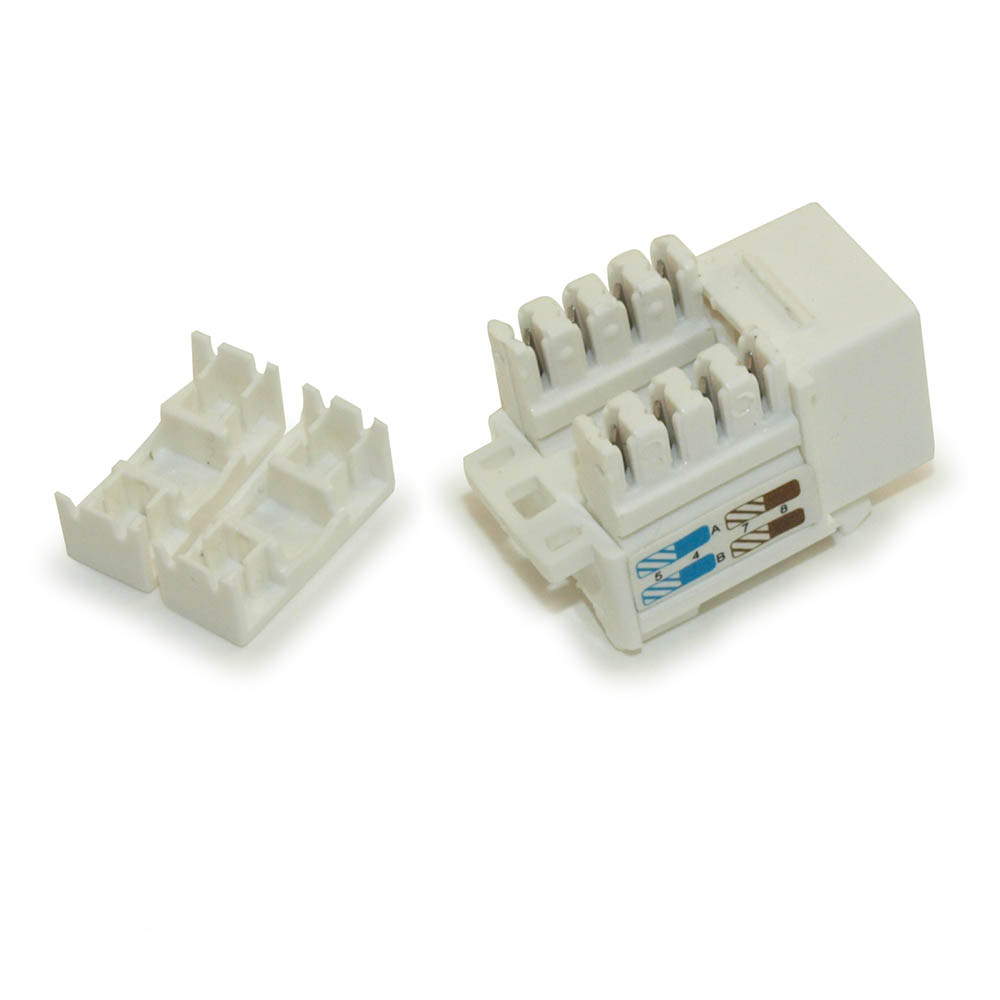

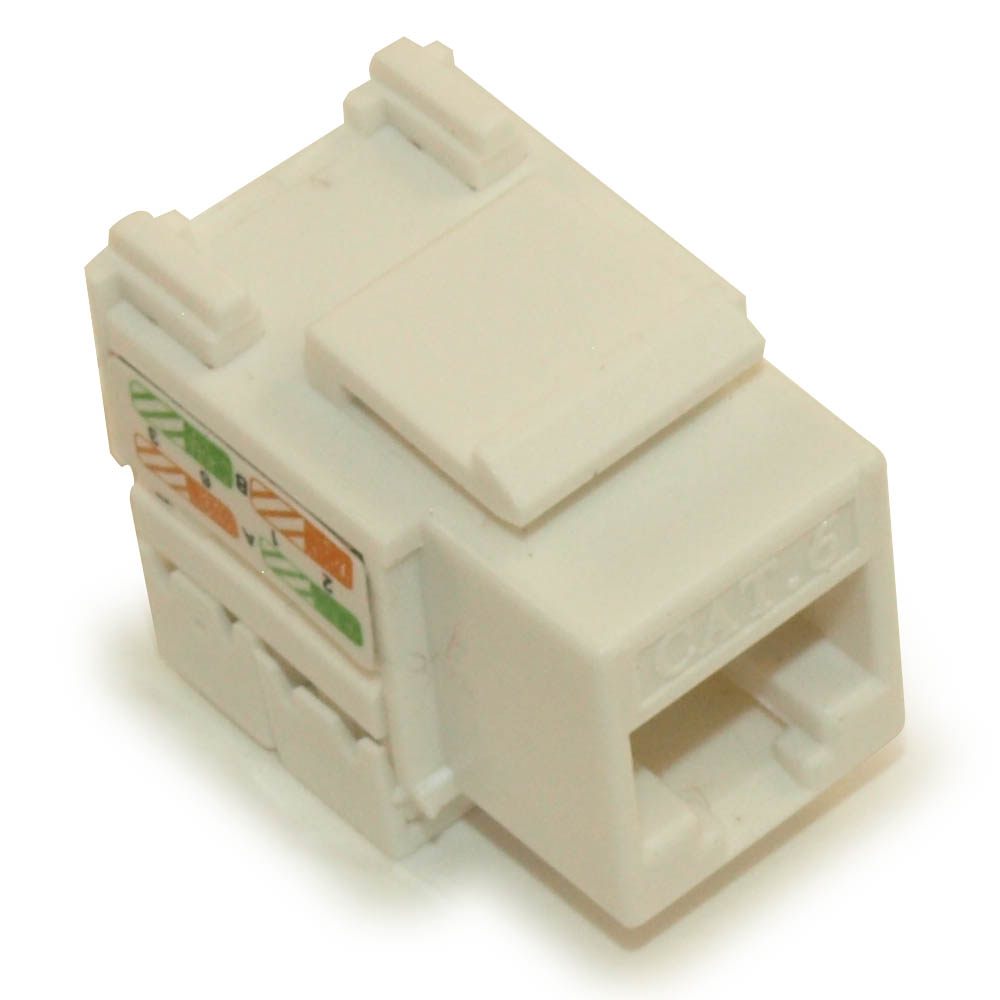

Cat 6 (also suitable for Cat 5E) style Keystone jack.
- For use with Keystone panels or wall plates (not included, sold seperately)
- Front is RJ-45 8 wire connection (A or B standard color coded)
- Top caps included
- Punch-out type connections for rear
- Note: Knowledge of networking and wiring is required to properly connect.
- Max width (at back): 18.0mm
Installation Note: When using our 4 and 6 hole Decora Plate Inserts, these inserts can NOT be installed "side-by-side" as the hole inserts are spaced too closely
|
