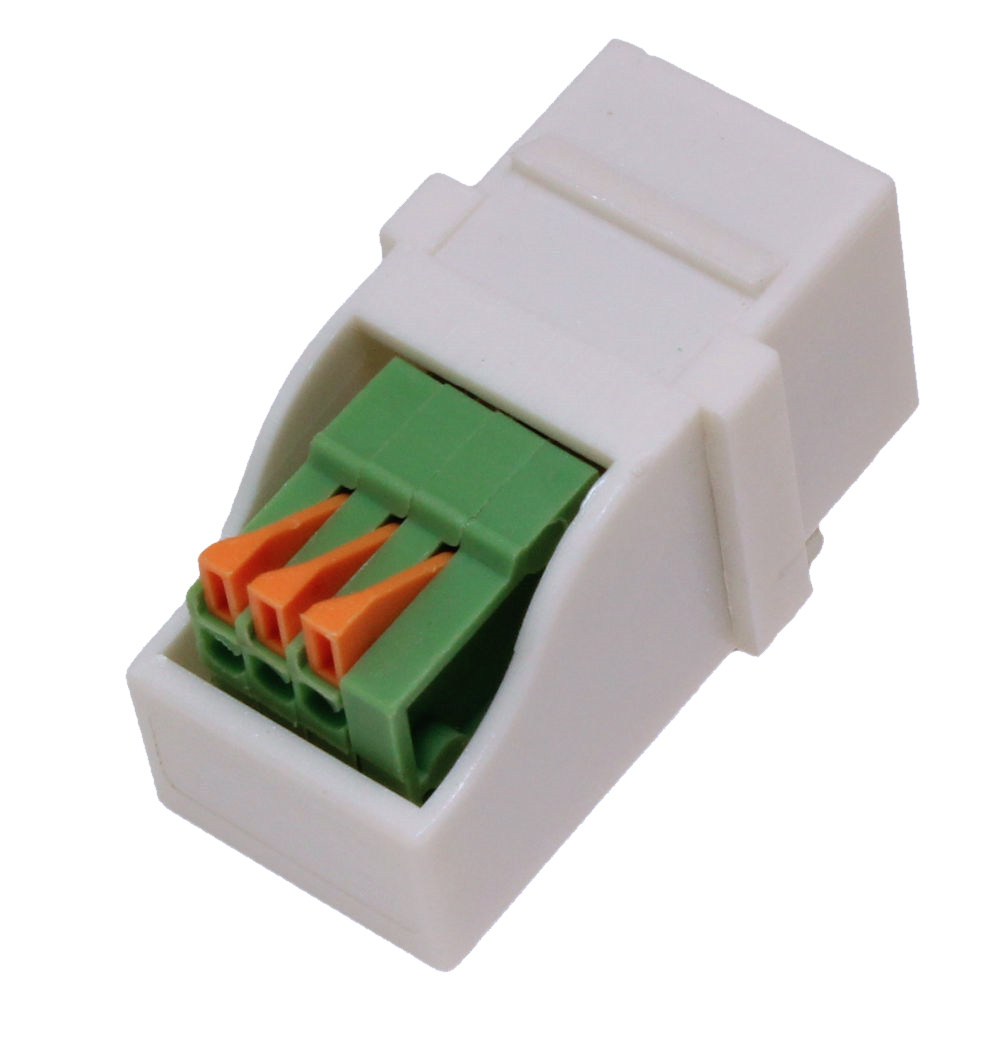

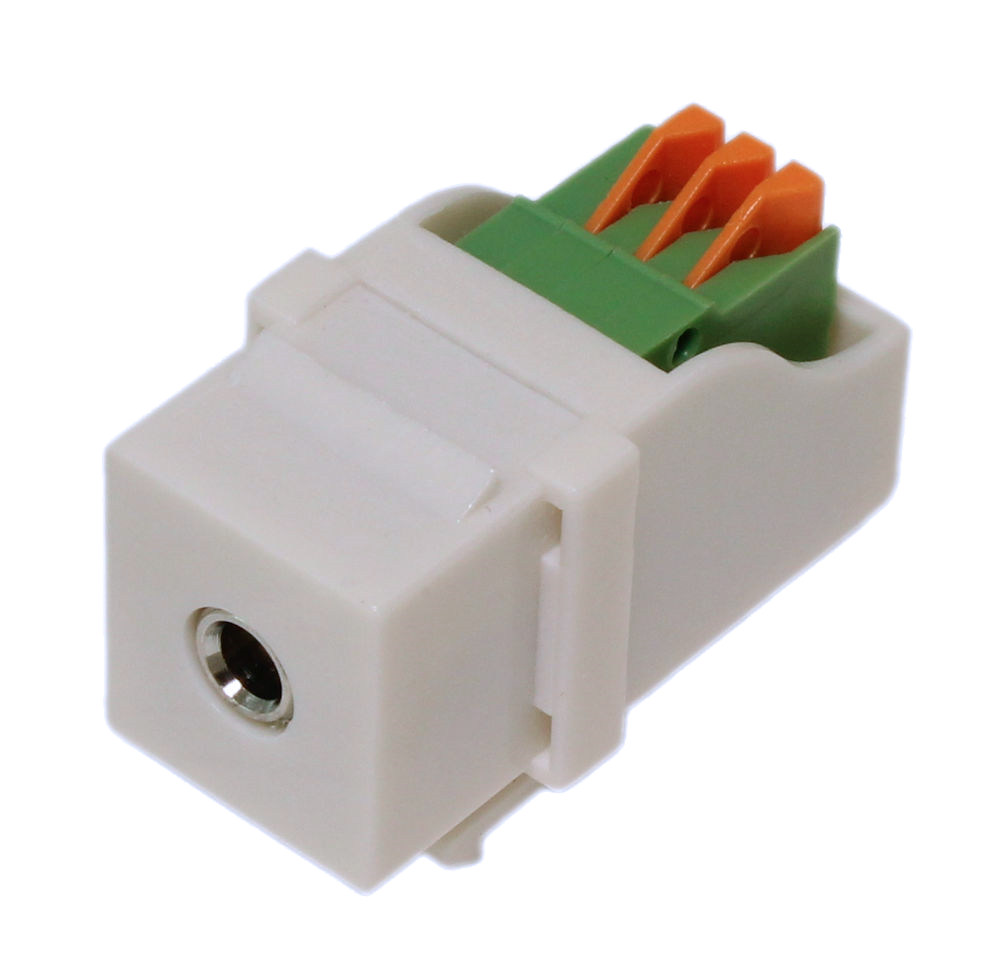

This keystone insert features a standard 3.5mm three-conductor female jack which may be used in two or three conductor applications. It is ideal any time a 3.5mm connector is needed at a wall plate. Rear mounted block connector allows simple, fast connection to unterminated Cat5 or CAT3 cable, or any 20-26AWG solid or stranded, UTP or shielded wire. Maximum voltage: 24VAC/DC, 1A. Solid wire is recommended, but stranded wire can be used if properly twisted tightly before insertion. Block will also support a MONO TS type connection simply by not connecting a wire one of the spring blocks
Specifications and Features- Remote location of headphone jacks
- Remote microphone connections
- Remote input from PC sound card, MP3 player or iPod
- IR repeater connection
- Accepts 20-26AWG stranded or solder wire
- Remote triggering of A/V components
- Low voltage DC connection
- Wire Legend: R(ight)=Tip, L(eft)=Ring, G(round)=Sleeve, rear of product is labeled RLG. This product is mislabeled, in the United States, Left audio is typically on the Tip and Right audio is on the ring, wire appropriately.
- Color: Bright White
Installation Note: Due to the WIDER (rear) product profile of this product, using MULTIPLE PRODUCTS side-by-side in certain wall-plates is not possible
|
