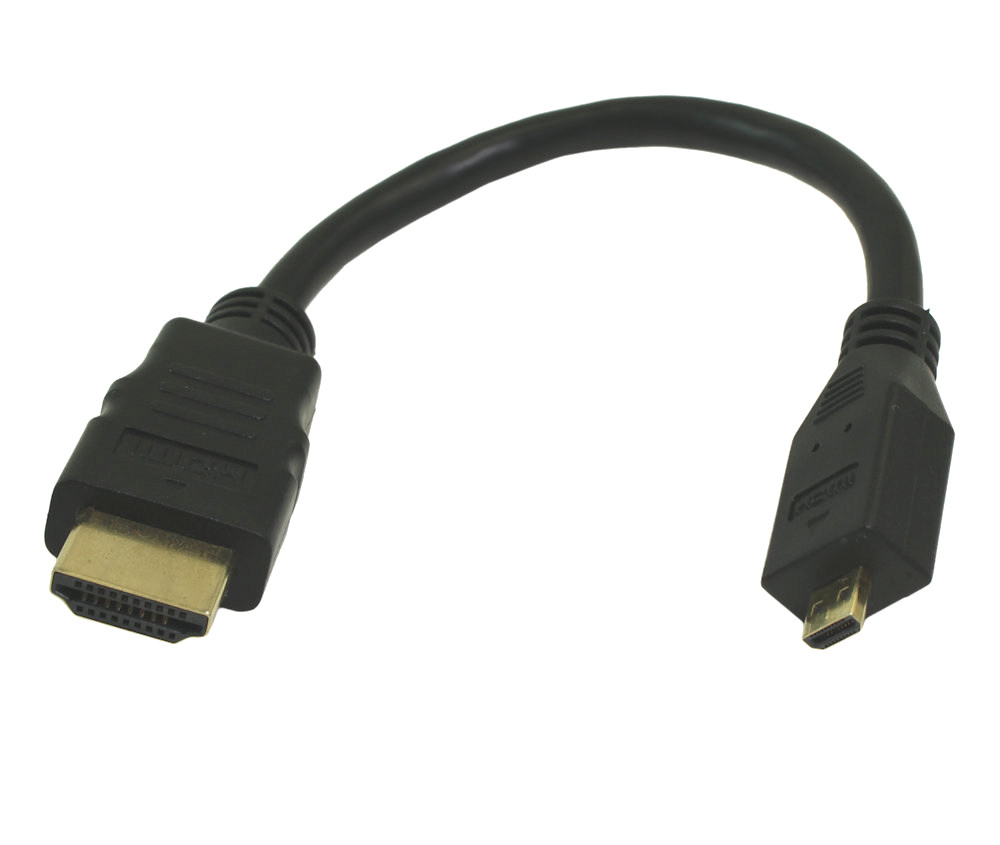

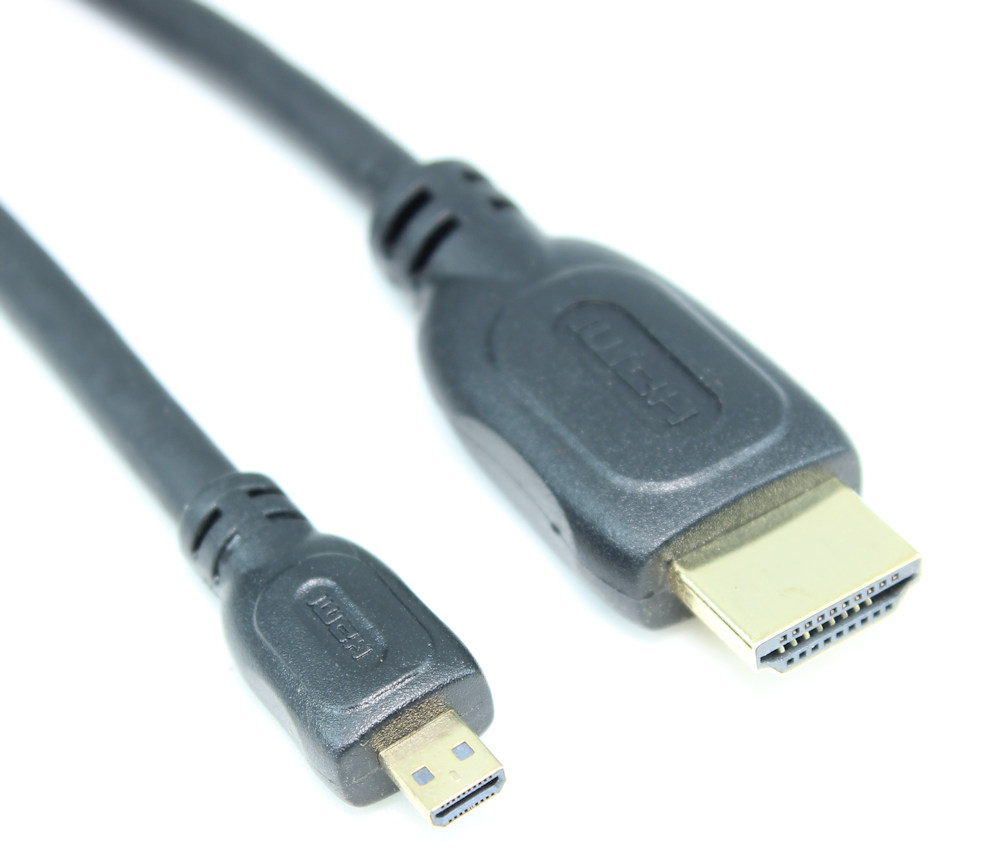

MICRO-HDMI (Type D) to Standard HDMI M to M 30AWG Cable
|
|
|
|
|
|
|
Lengths Available: |
6in, 10in, 1.5ft, 3ft, 6ft, 10ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-HHD14-6IN, FE-HHD14-10IN, FE-HHD14-01, FE-HHD14-03, FE-HHD14-06, FE-HHD14-10, |
| |
|
|
Sales Category: |
HDMI Cables |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
HDMI Type D Micro Male |
Specification: |
|
|
Connector B: |
HDMI Type D Micro Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
10 IN |
|
# Positions: |
80 |
Shielding: |
Double Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
Connects any MICRO-HDMI, or other device that has an MICRO-HDMI TYPE D female port to another HDMI device (such as newer HD-TVs, or projectors).
Specifications:- Wire Gauge: 30AWG
- Certified for HDMI 1.4A/2.0 (and backward compatible to all previous versions)
- Supports the following resolutions: 720i, 720p, 1080i, 1080p, 1280x1024, and beyond (WITHOUT the need of a booster)
- Supports ARC (Audio Return Channel) and HEAC (HDMI over Ethernet Channel)
- Standard 19pin connection, Male to Male, Type A (standard) to Type D (Micro) Connection
- Silver-tinned copper wire for maximum conductivity - without ANY harmful lead
- These premium HDMI certified cables support high-bandwidth, uncompressed video and multi-channel digital audio
- Double shielding for maximum video performance and prevents signal loss & screen ghosting.
- Support for One Bit Audio format
- UL / CSA listed, have matched impedance
- PVC jacket, molded ends, Inner hood soldered 360 degrees to the connector for complete end to end shielding.
- Certified for compatibility with Sony PlayStation 3, Dolby TrueHD, DTS-HD Master Audio, Blue-Ray HD DVD, and HD-DVD
- 24K Gold-plated connecting pins AND ground connections to ensure excellent connectivity.
- Is RoHS Green Certified. Production process that uses laser jacket stripping & aluminum foil cutting with precise machine soldering.
|
