Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 15ft, 20ft, 25ft, 35ft, 50ft, 75ft, 100ft, |
|
Colors Available: |
Black, Black, Gray,
|
|
Part Numbers this model: |
FE-C6A-6IN-BLK, FE-C6A-01-BLK, FE-C6A-02-BLK, FE-C6A-03-BLK, BE-100854BK, FE-C6A-05-BLK, FE-C6A-06-BLK, BE-100857BK, FE-C6A-10-BLK, BE-100859BK, FE-C6A-20-BLK, FE-C6A-25-BLK, BE-100862BK, BE-100863BK, BE-100810BK, FE-C6A-100-BLK, |
| |
|
|
Sales Category: |
CAT 6 Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Molded Plug, Strain Relief Plug to Plug |
Images Length/Size Shown: |
3 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|

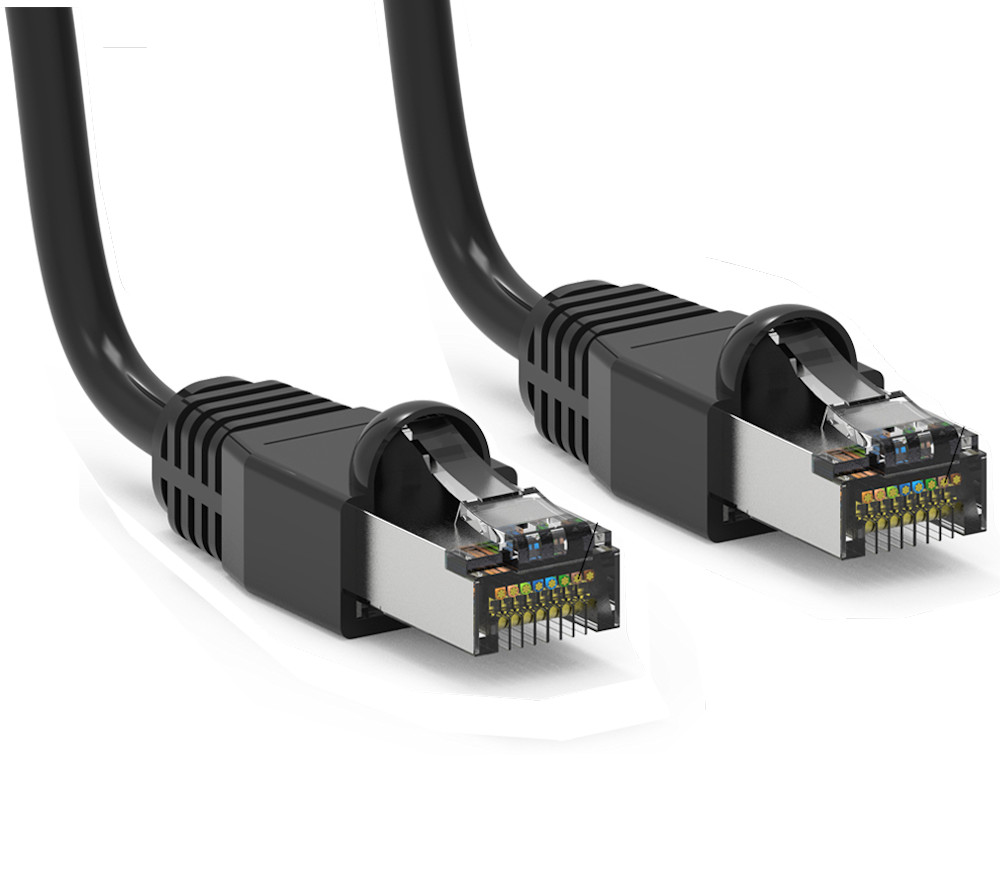

Connects any CAT6 or CAT6A (Shielded) application such as computer to hub, patch panel or wall jack. Augmented CAT-6 or CAT-6A as it is referred is capable of supporting data transfer rates of up to 10Gbps at a maximum bandwidth of 500MHz. CAT-6A has additional and tighter twists, with additional insulation to reduce cross talk.CAT-6A is also backwards compatible with CAT-6 and CAT-5e, however, speeds are always limited and will perform to the lowest category cable or connector that is installed in the link.CAT-6A is fast becoming the lowest cost effective solution as it is seen as a future proof cable system. CAT-6A components are used in Class EA networks as defined in ISO/IEC 11801 and TIA/EIA 568. CAT6A is now the recommended standard for PoE installations. CAT6A is fully backward compatible to CAT6 standards.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit, 1GB network standards up to 330ft segment runs
- 550Mhz Category 6, exceed IEEE standards suitable for 1Gbit networks.
- SHIELDED Twisted pairs (STP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards
- Double shielded: Each pair foil shielded / 4 pair braid shielded
- Metal shielded RJ-45 connectors
- 50u Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS-2 Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
|
