Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 20ft, 25ft, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
FE-C690-6IN-BLK, FE-C690-01-BLK, FE-C690-02-BLK, FE-C690-03-BLK, FE-C690-04-BLK, FE-C690-05-BLK, FE-C690-06-BLK, FE-C690-07-BLK, FE-C690-10-BLK, FE-C690-14-BLK, FE-C690-20-BLK, FE-C690-25-BLK, |
| |
|
|
Sales Category: |
CAT 6 Networking Cables |
Wire Gauge (AWG): |
24 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Molded Plug, Strain Relief Plug to Plug, Angled Up |
Images Length/Size Shown: |
4 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|

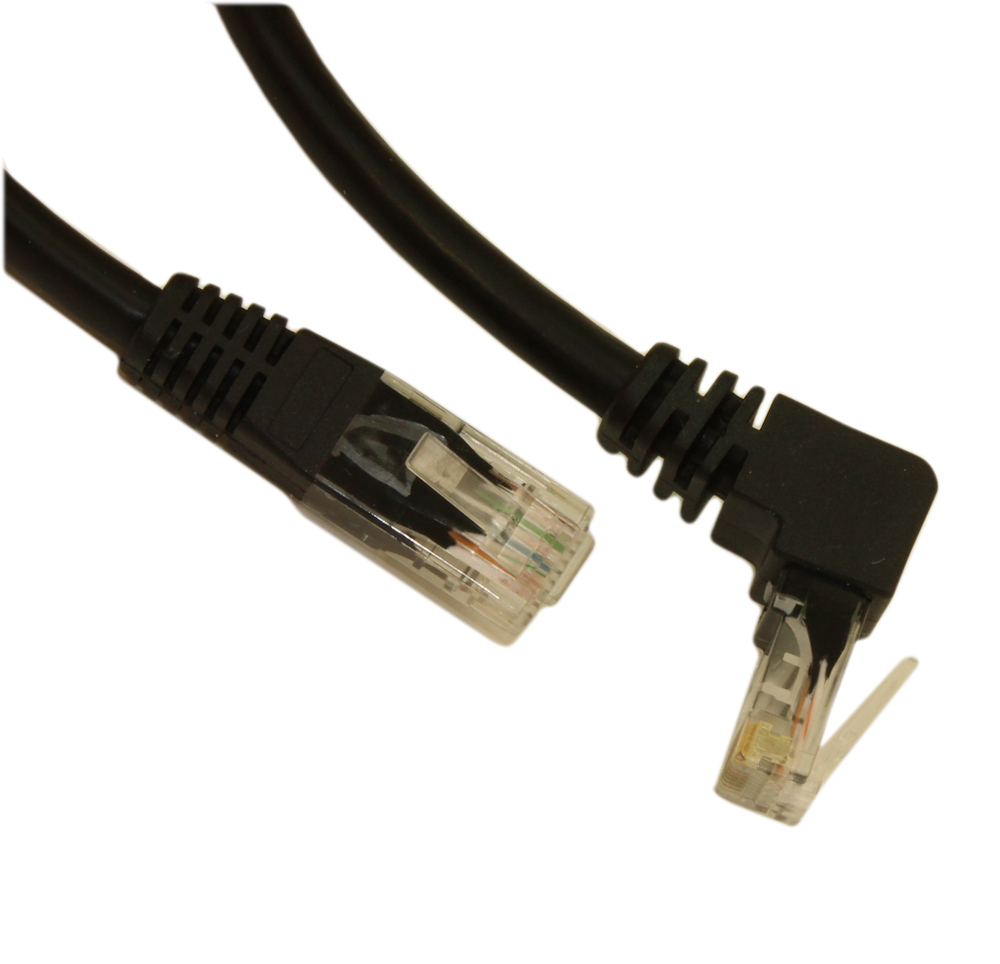

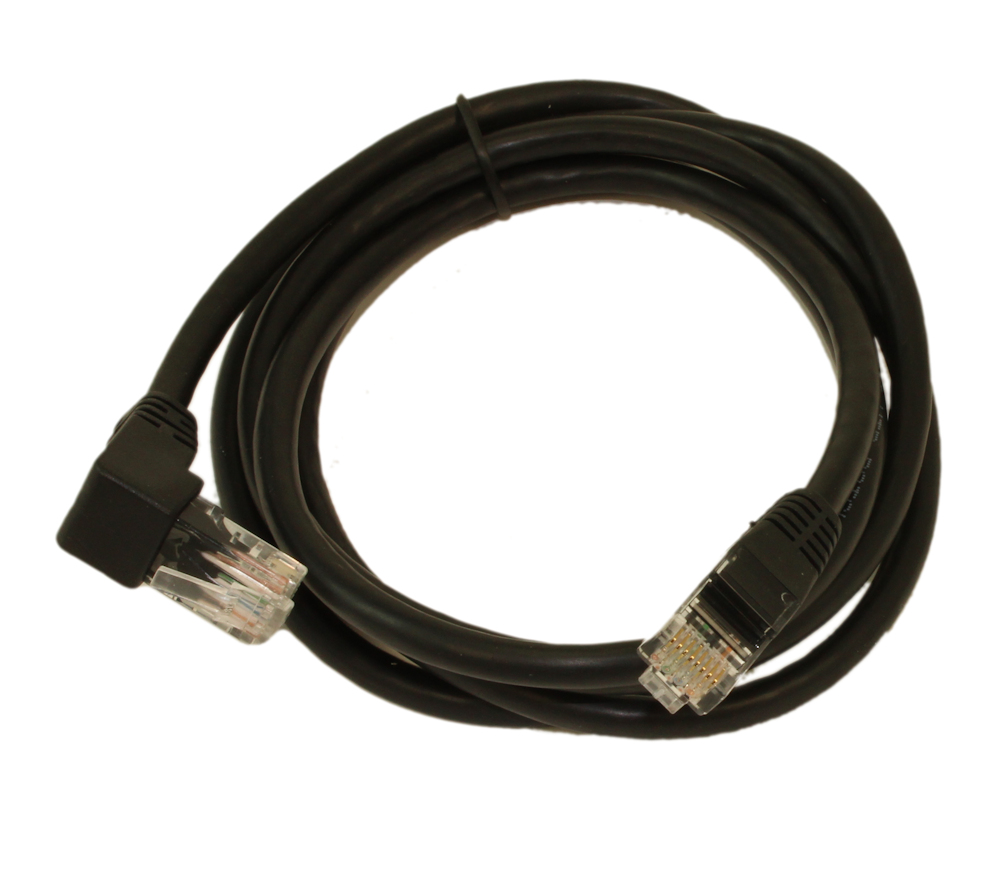

Connects any CAT6 application such as computer to hub, patch panel or wall jack. This 550MHz CAT6 PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT6 and other high speed applications. One end is ANGLED 90 degrees. When plugged into a female jack, this will normally have the cable angle UPWARDS
It has stranded wires for added cable flexibility.
Technical Specifications:- 24AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit, & 1Gbit network standards up to 1000ft segment runs
- 550 Mhz Category 6, exceed IEEE standards
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- Cable Category: CM NEC Rated for In-wall installation (Home or business)
- EIA/TIA TSB-40A ETL Verified, for Stranded 568B standards
- 50u" Gold Plated contacted
- 1 End 90 Degree ANGLE, the other end STRAIGHT
- Molded Strain Relief boot connectors
- RoHS Compliant
- UL & CSA Listed
|
