Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 20ft, 25ft, |
|
Colors Available: |
Black, Blue, Gray, Green, Orange, Purple, Red, White, Yellow,
|
|
Part Numbers this model: |
HA-C6-06IN-GRN, FE-C6-01-GRN, BE-100702GN, FE-C6-03-GRN, BE-100700GN, FE-C6-05-GRN, FE-C6-06-GRN, FE-C6-07-GRN, HA-C6-10-GRN, HA-C6-14-GRN, BE-100714GN, BE-100708GN, |
| |
|
|
Sales Category: |
CAT 6 Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|

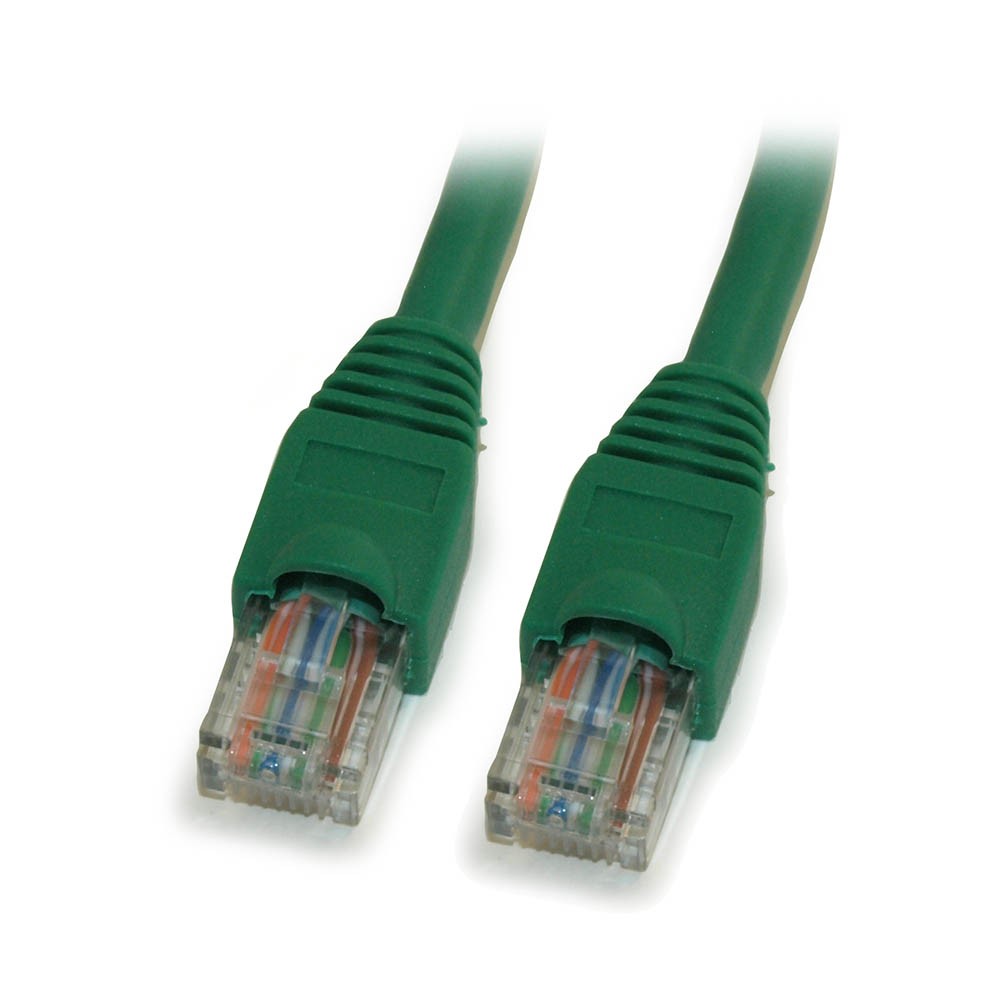

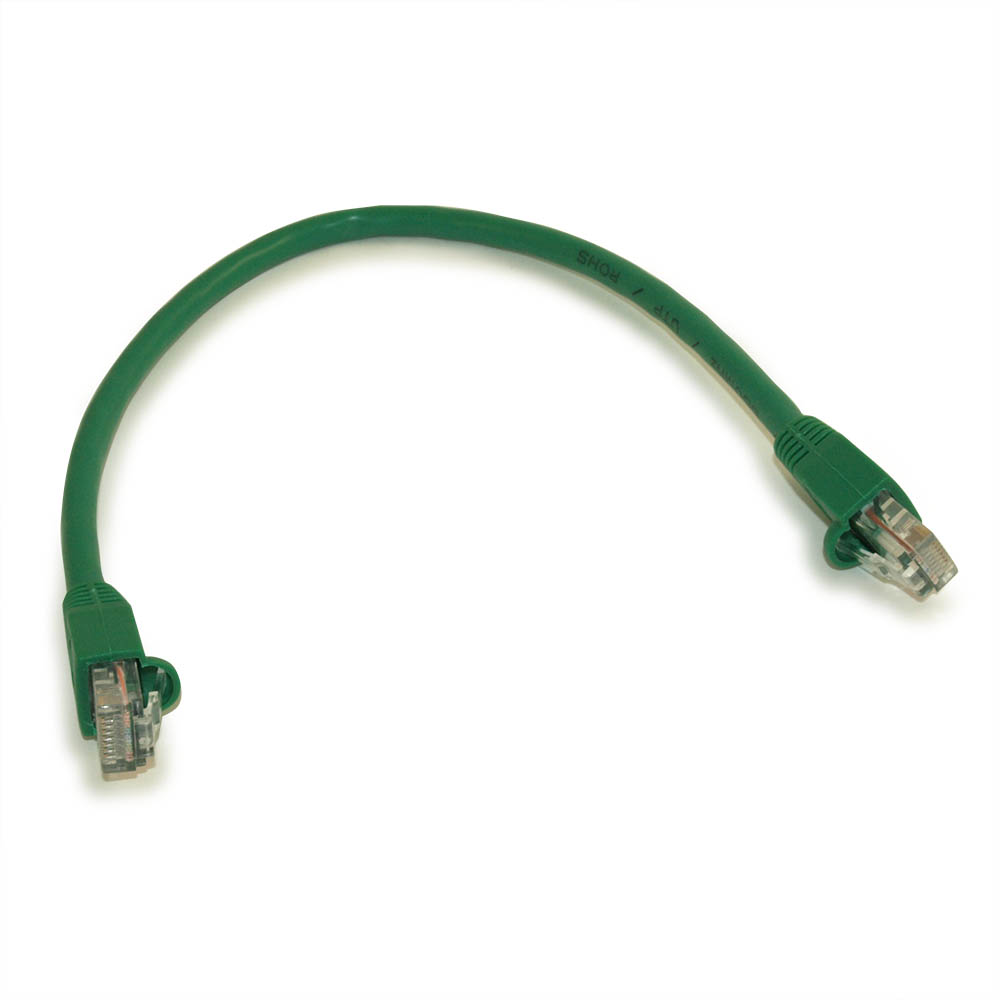

Images Length/Size Shown: |
1 FT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
Connects any CAT6 application such as computer to hub, patch panel or wall jack. This 550MHz CAT6 PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT6 and other high speed applications. It has stranded wires for added cable flexibility.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit, 1GB network standards up to 330ft segment runs
- 550Mhz Category 6, exceed IEEE standards suitable for 1Gbit networks.
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards
- 50u Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS-2 Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
|
