Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 20ft, 25ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-C590-6IN-BLU, FE-C590-01-BLU, FE-C590-02-BLU, FE-C590-03-BLU, FE-C590-04-BLU, FE-C590-05-BLU, FE-C590-06-BLU, FE-C590-07-BLU, FE-C590-10-BLU, FE-C590-14-BLU, FE-C590-20-BLU, FE-C590-25-BLU, |
| |
|
|
Sales Category: |
CAT 5E Networking Cables |
Wire Gauge (AWG): |
24 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Molded Plugs Plug to Plug, Angled Up |
Images Length/Size Shown: |
6 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|

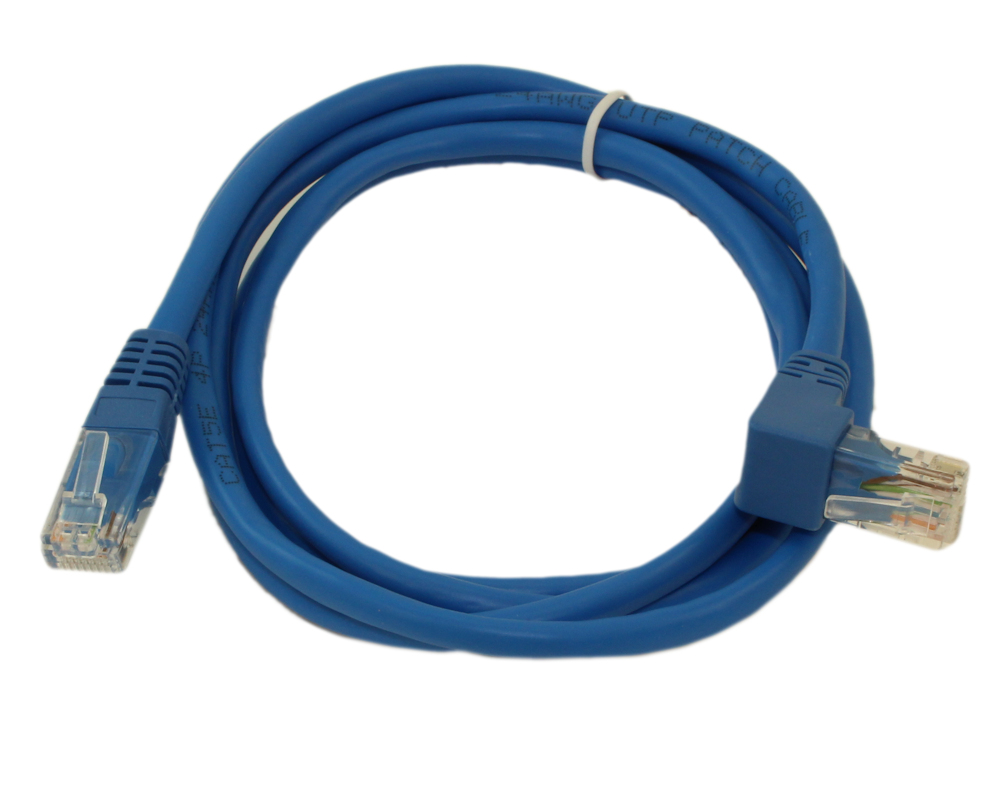

Connects any CAT5 application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. It has stranded wires for added cable flexibility. One end is ANGLED 90 degrees. When plugged into a female jack, this will normally have the cable angle UPWARDS
Technical Specifications:- 24AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 1000ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for up to 1Gbit Networks in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- Cable Category: CM NEC Rated for In-wall installation (Home or business)
- EIA/TIA TSB-40A ETL Verified, for Stranded 568B standards
- 50u" Gold Plated contacted
- 1 End 90 Degree ANGLE, the other end STRAIGHT

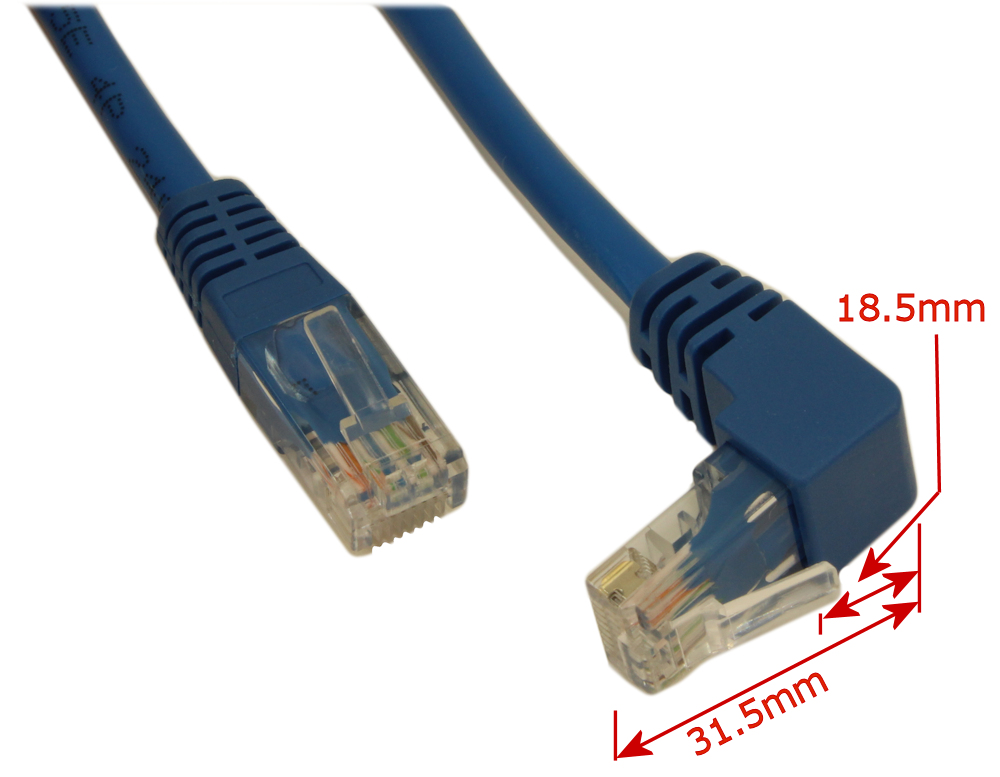

- Angled End Measurement: 31.5mm (Approx 1.2 inches) END to END
- Angled End Measurement: 18.5mm (Approx 0.73 inches) protruding from standard RJ45 socket
- See TECHNICAL DRAWING for detailed measurements
- RoHS Compliant
|
