Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 15ft, 20ft, 25ft, 50ft, |
|
Colors Available: |
Black, Blue, Gray, Green, Orange, Red, White, Yellow,
|
|
Part Numbers this model: |
HA-C5-06IN-YEL, FE-C5-01-YEL, FE-C5-02-YEL, FE-C5-03-YEL, FE-C5-04-YEL, BC-C5MB-5YEL, BE-100513YW, HA-C5-07-YEL, BE-100506YW, BC-C5MB-14YEL, BE-100507YW, MR-C5MB-20YEL, FE-C5-25-YEL, BE-100509YW, |
| |
|
|
Sales Category: |
CAT 5E Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
USB 40Gbps (USB4 40Gbps) |
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
40Gbps |
|
Feature / Style: |
Molded/Snagless Plug to Plug |
Images Length/Size Shown: |
25 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|

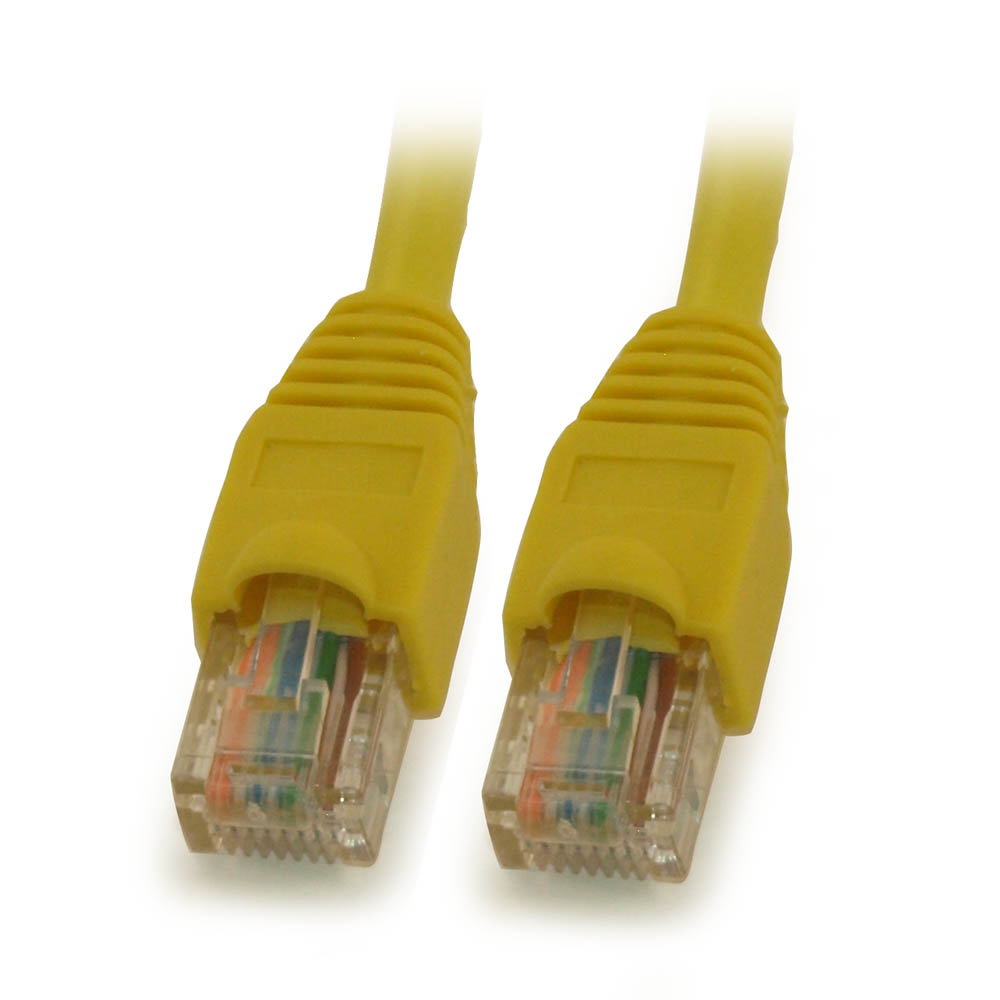

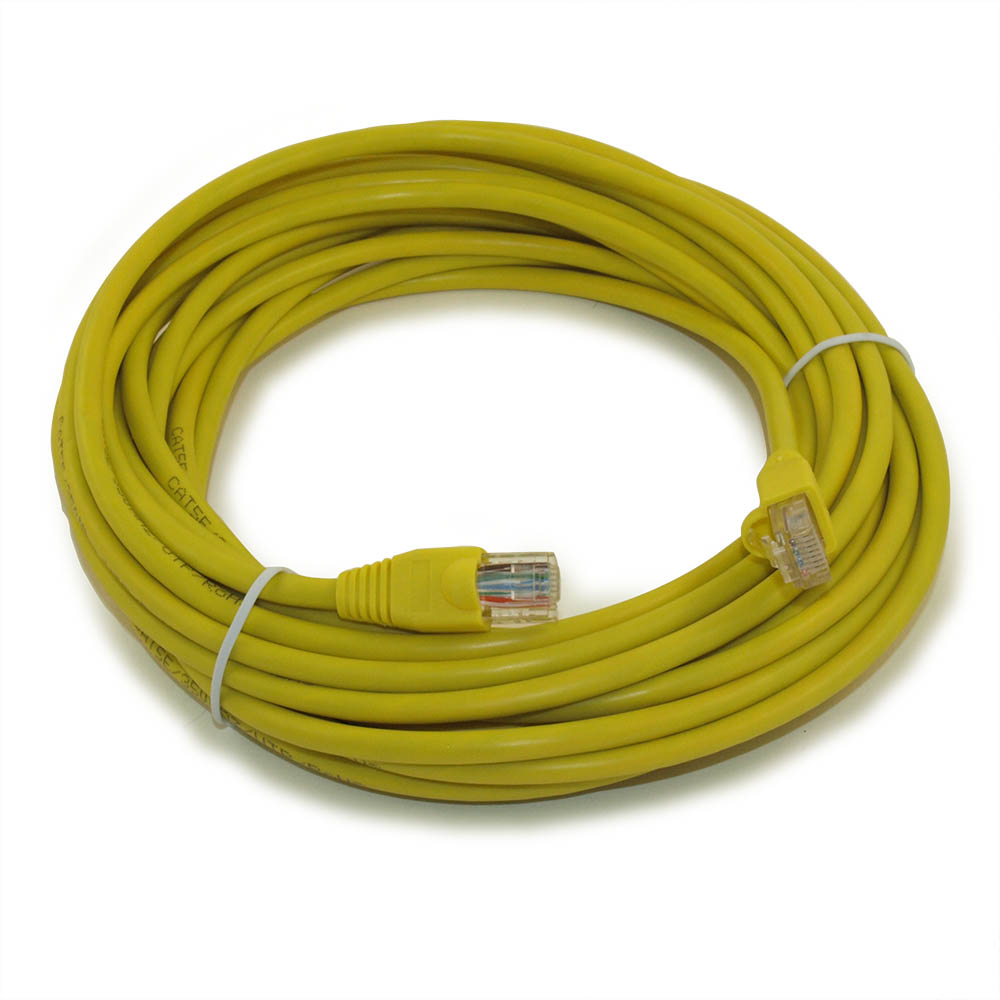

Connects any CAT5 or CAT5E (Enhanced) application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. Uses stranded wires for added cable flexibility.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 330ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for 100Mbit networks. May support 1Gbps in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards
- 50u Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
|
