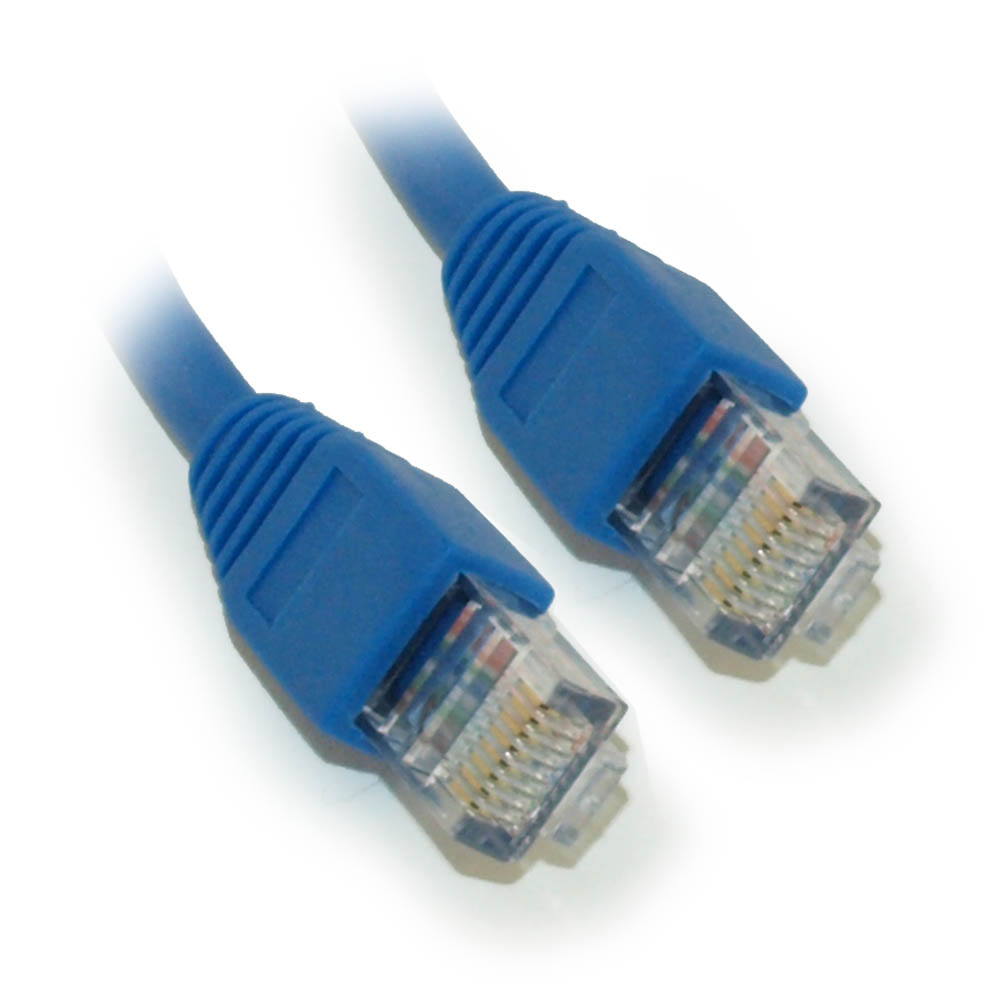

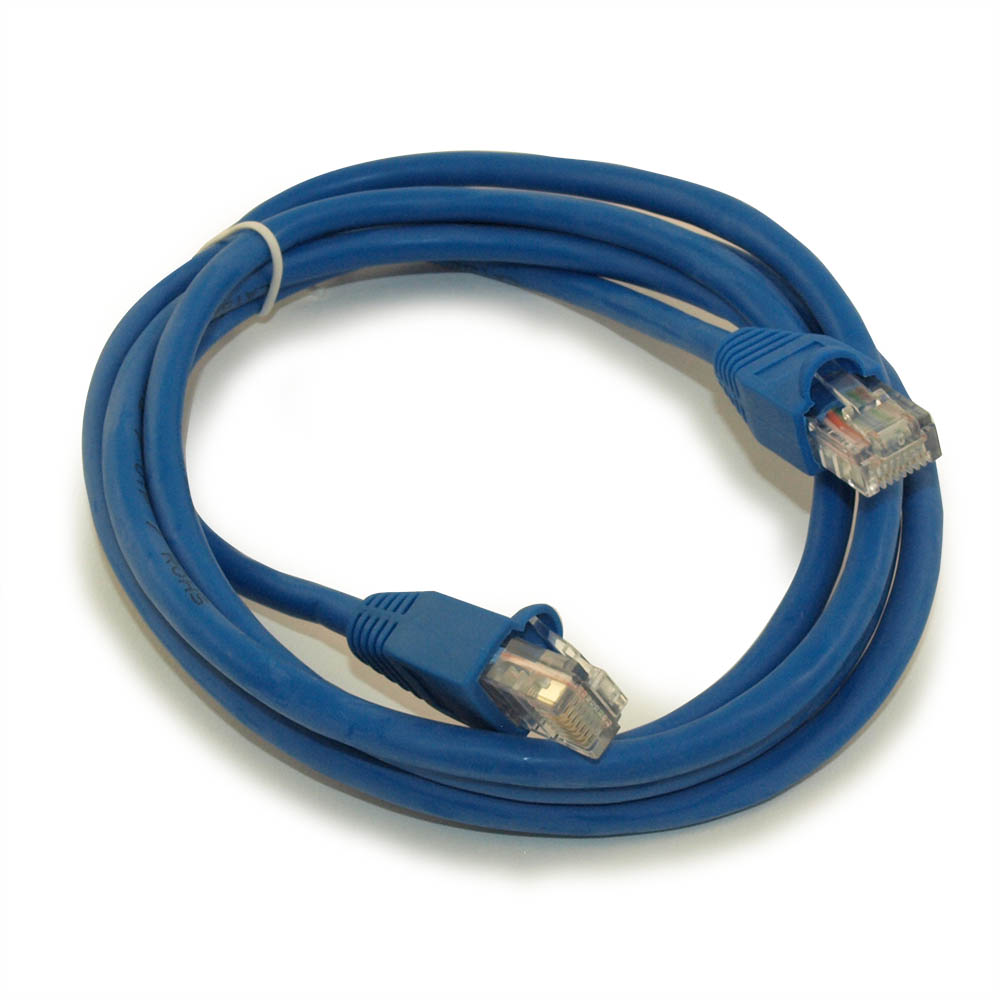

Cat5E Ethernet RJ45 Patch Cable, Stranded, Snagless Booted, BLUE


 Lengths Available: 6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 15ft, 20ft, 25ft, 30ft, 35ft, 40ft, 50ft, 60ft, 75ft, 100ft, 200ft,
 Colors Available: Black, Blue, Gray, Green, Orange, Purple, Red, White, Yellow,
 Part Numbers this model: HA-C5-06IN-BLU, FE-C5-01-BLU, FE-C5-02-BLU, BE-100503BL, FE-C5-04-BLU, FE-C5-05-BLU, BE-100513BL, FE-C5-07-BLU, BE-100506BL, FE-C5-14-BLU, BE-100507BL, BE-100514BL, BE-100508BL, BE-100519BL, FE-C5-35-BLU, BE-100520BL, BE-100509BL, FE-C5-60-BLU, BE-100510BL, BE-100511BL, BE-100515BL,

 Sales Category: CAT 5E Networking Cables  Wire Gauge (AWG): 26 AWG
 Connector A: RJ45 Ethernet Male  Specification: USB 40Gbps (USB4 40Gbps)
 Connector B: RJ45 Ethernet Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate: 40Gbps
 Feature / Style: Molded/Snagless Plug to Plug Images Length/Size Shown: 5 FT
# Positions: 8p8c (RJ45, Ethernet) Shielding: Unshielded
Convert From/To: Type: Round Cable

Connects any CAT5 or CAT5E (Enhanced) application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. Uses stranded wires for added cable flexibility.
Technical Specifications:
  • 26AWG Copper twisted pairs
  • Suitable for any 10Mbit, 100Mbit network standards up to 330ft segment runs
  • 350 Mhz Category 5E, exceed IEEE standards suitable for 100Mbit networks. May support 1Gbps in shorter lengths
  • Unshielded Twisted pairs (UTP) suitable for most business and home network installations
  • CM NEC Rated for In-wall installation (Home or business)
  • Meets EIA/TIA TSB-40A for Stranded 568B standards
  • 50u Gold Plated contacted
  • Molded Strain Relief boot connectors
  • RoHS Compliant
  • See TECH DOC for drawing and additional technical information
  • NOT UL Listed, but meets UL standards
