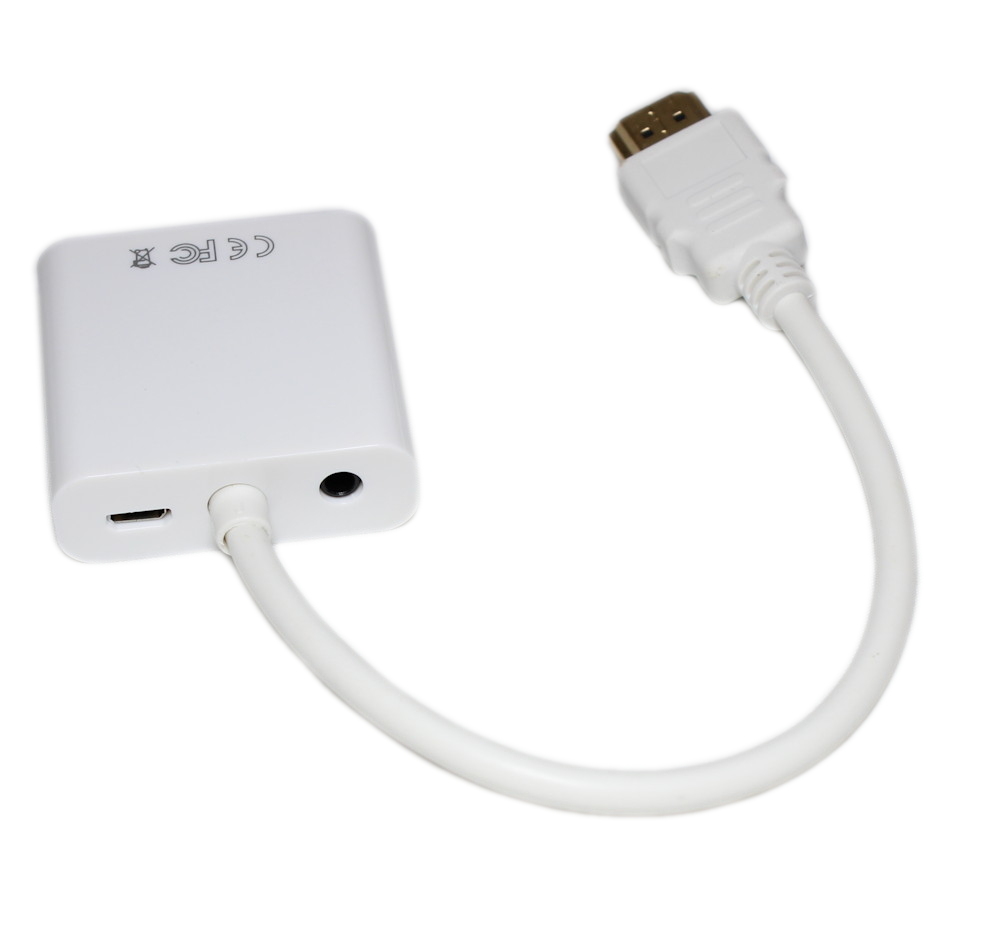

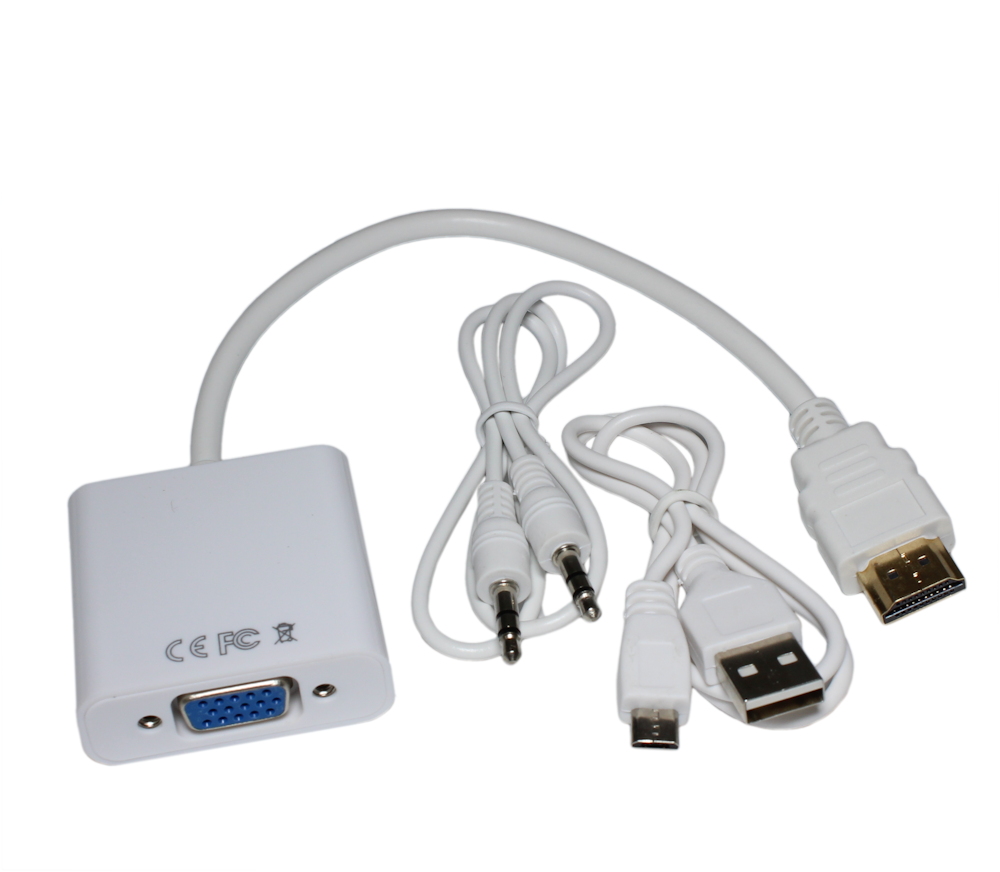

This HDMI to VGA Converter is an adapter which integrates video and audio output from an HDMI source such as a computer and converts the signal to VGA with 3.5mm audio. Use this device to connect a computer with HDMI to a monitor with VGA. In addition, with the built-in audio decoder, it connects to a speaker or a headphone directly without any converter. 3.5mm audio cable, and USB power cable (optionally to use) included.
Features:- on-chip HDMI receiver with Equalizer
- On-chip HDMI Receiver core which is compliant with HDMI 1.3a specification
- Supports video output up to UXGA and 1080p with an on-chip 16-bit DAC
- On-chip Audio Decoder supports 2-channel audio output
- Supports audio soft mute
- Low stand-by current at power down mode
Specifications:- Host interface: Standard HDMI (A-Type)
- Output: Female VGA / 15 pin
- Audio: 3.5mm stereo female jack (Left/Right channels)
- 3.5mm TRS/Stereo audio cable included
- Dimension: 74 x 41 x 14mm (LxWxH) approx
- Housing Material: Metal and Plastic
- Power Mode: Bus Power 5V & Self Power 5V, 1675 mW Max
- 2ft 3.5mm White Audio cable, and Micro-B USB Power Cable INCLUDED (Optional USB Power Block NOT included)
- Resolution: 1920 x 1080, 1680 x 1050, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480
- Compliance: CE, FCC
|
