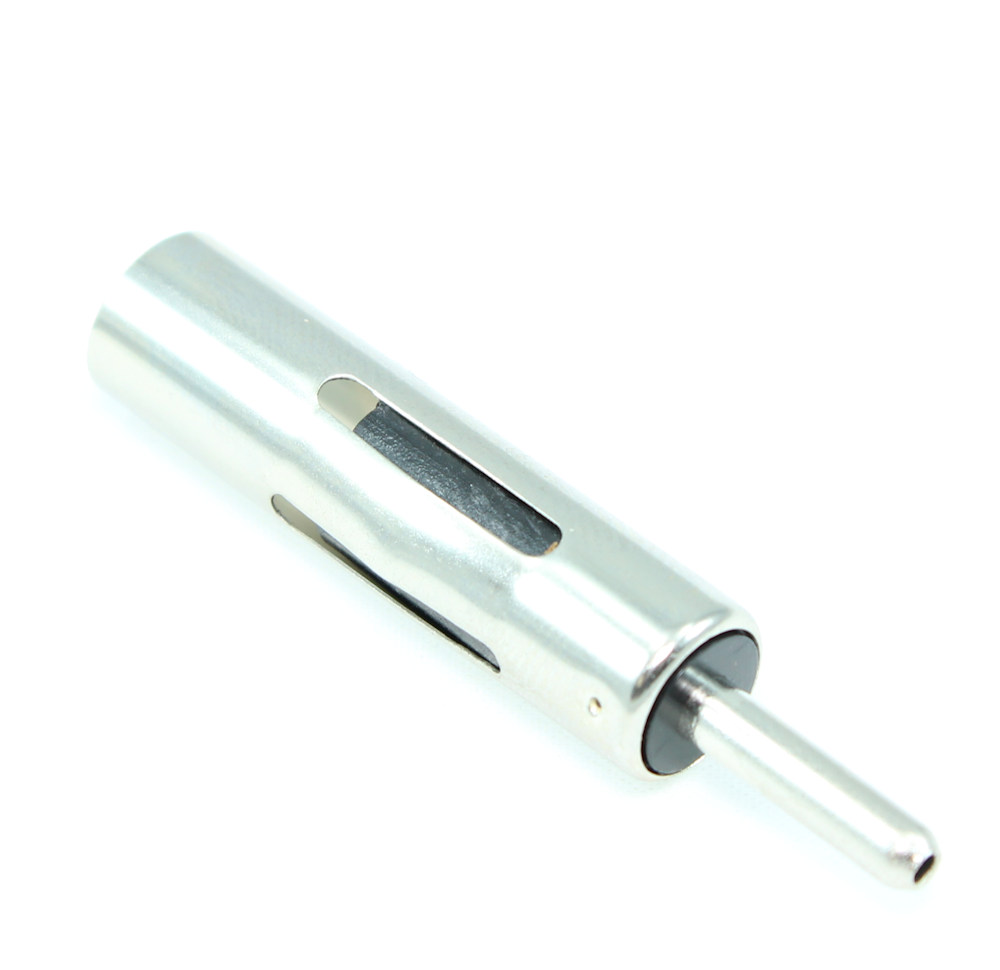

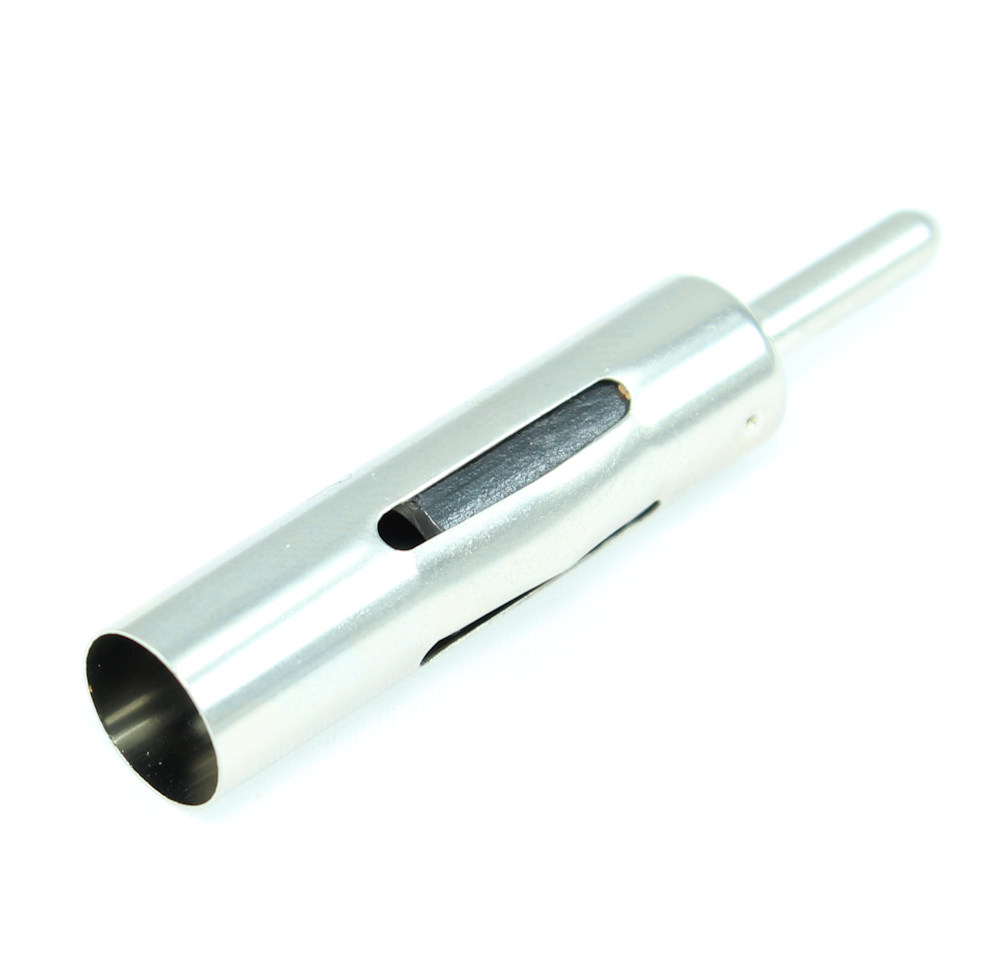

Car Antenna Plug (Motorola DIN 41585)
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ADT-425 |
| |
|
|
Sales Category: |
Adapters (All Types) |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
Coax Antenna Plug Motorola Male |
Specification: |
|
|
Connector B: |
Coax Antenna Plug Motorola Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Auto, boat, and other application antenna connector
Specifications:- Designed for RG58, RG59, or RG6 coax dual shield cable
- Tip Diameter 3.20mm
- Tip Length: 13.2mm
- Sleeve Length: 35.25mm
- Sleeve Inside Width: 8.6mm, Outside Width: 9.0mm
- Total Length, end to end: 45mm
- PVC Over-mold covering NOT included. This is the "bare connector"
- See drawing for additional dimensions
|
