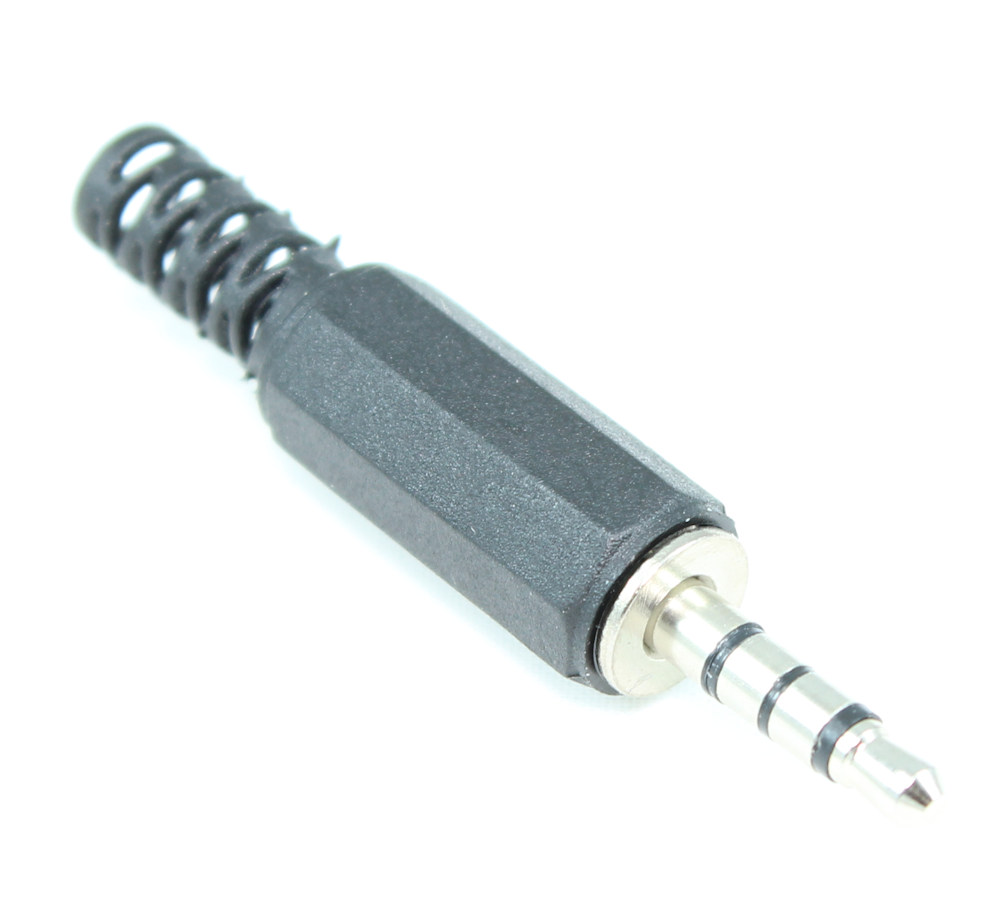

3.5mm Plug/Jack, 4 Conductor TRRS, Self Solder, Male
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ADT-269 |
| |
|
|
Sales Category: |
3.5MM 4 Conductor Cables and Adapters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
3.5mm TRRS 4 Conductor Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |

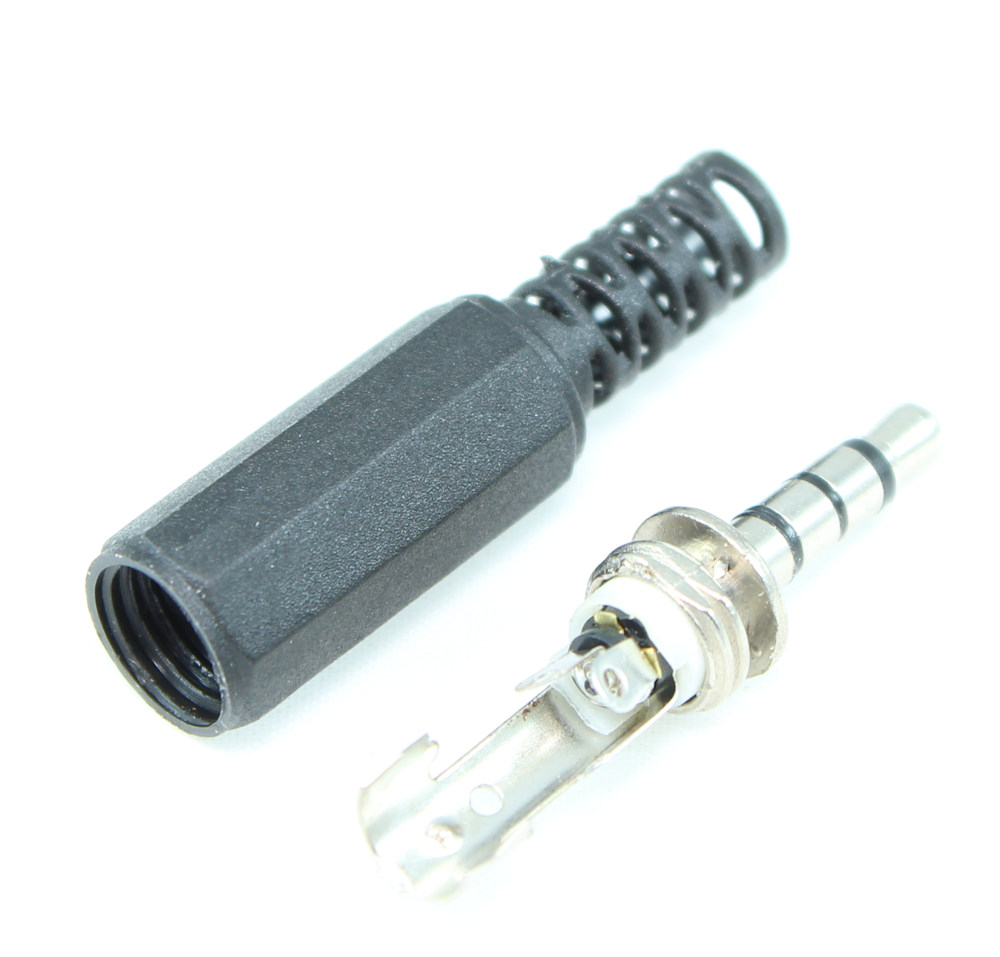

Connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This connector MAY also be suitable for left/right audio, 1 video (composite) and ground. Great for making your own 3.5mm 4 conductor Cables, or for repairing existing cables. Wire terminals are attached using solder (not included).
Features- 3.5mm 4 conductor (3 band) plug
- Nickel Plated
- Strain relief
- Outer Dimensions (at PVC outer molding): 9.1mm-9.6mm
- Outer Dimensions (with PVC outer molding REMOVED): 8.0mm
- Connector Length: 15.0mm
- Total Length (from end to end): 49.5mm
- Thread Type: M8*1
- Self-solder
|
