Headphone and Microphone (PC) Combine to Apple(TM) Headset with Microphone
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ADT-259 |
| |
|
|
Sales Category: |
Adapters (All Types) |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
3.5mm TRRS 4 Conductor Female |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Combine your PC/Windows based 3.5 stereo audio and 3.5mm mono microphone to the Apple(TM) based standard for headset with Microphone use. Uses APPLE(TM) wiring standard. Not suitable for NON-Apple headset products. The APPLE(TM) standard uses the TIP of a 4 conductor connection as the microphone connector, bands 1 and 2 for the audio, band 3 for the common ground, and band 4 for microphone (mono). Please see PRODUCT MANUAL for drawing and pin-out diagram. This adapter device is primarily used when you have a PC/WINDOWS based computer to plug in both the male connectors into the HEADPHONES and MICROPHONE port, to provide a suitable FEMALE port to plug in an Apple branded headphone set. This adapter cable MAY have other possible uses.
- Length: Approx 6 inches
- Combine your 3.5mm Windows/PC audio and microphone to Apple Output
- Nickel Plated

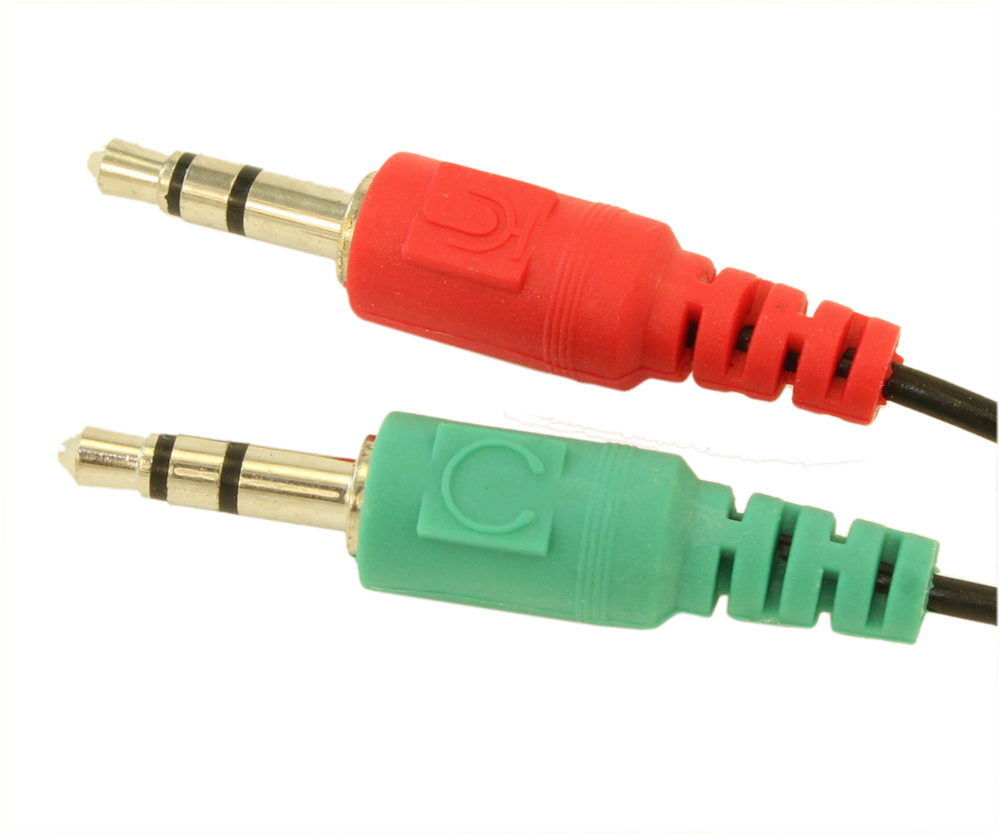

- Color Marked (Green - Headphone, Red - Microphone)

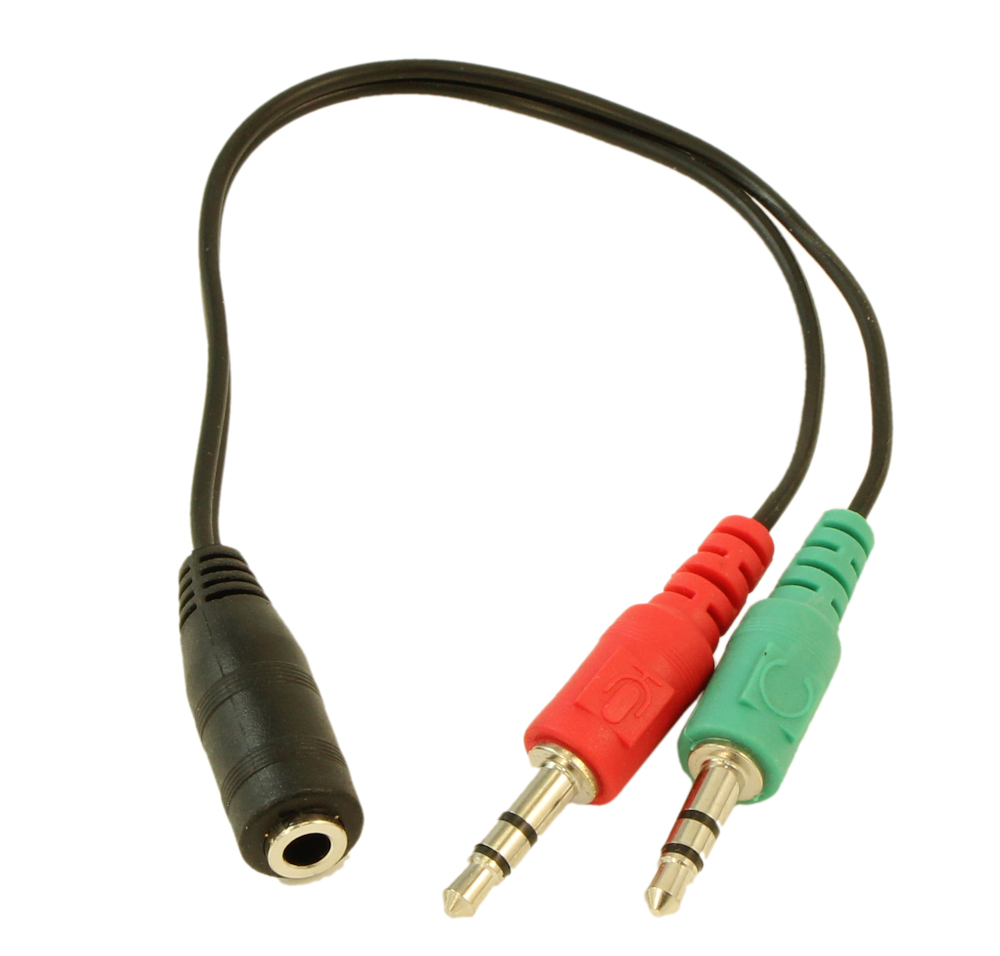

- 2 x 3.5mm Male Connectors, 1 3.5mm 4 conductor Female Connector
|
