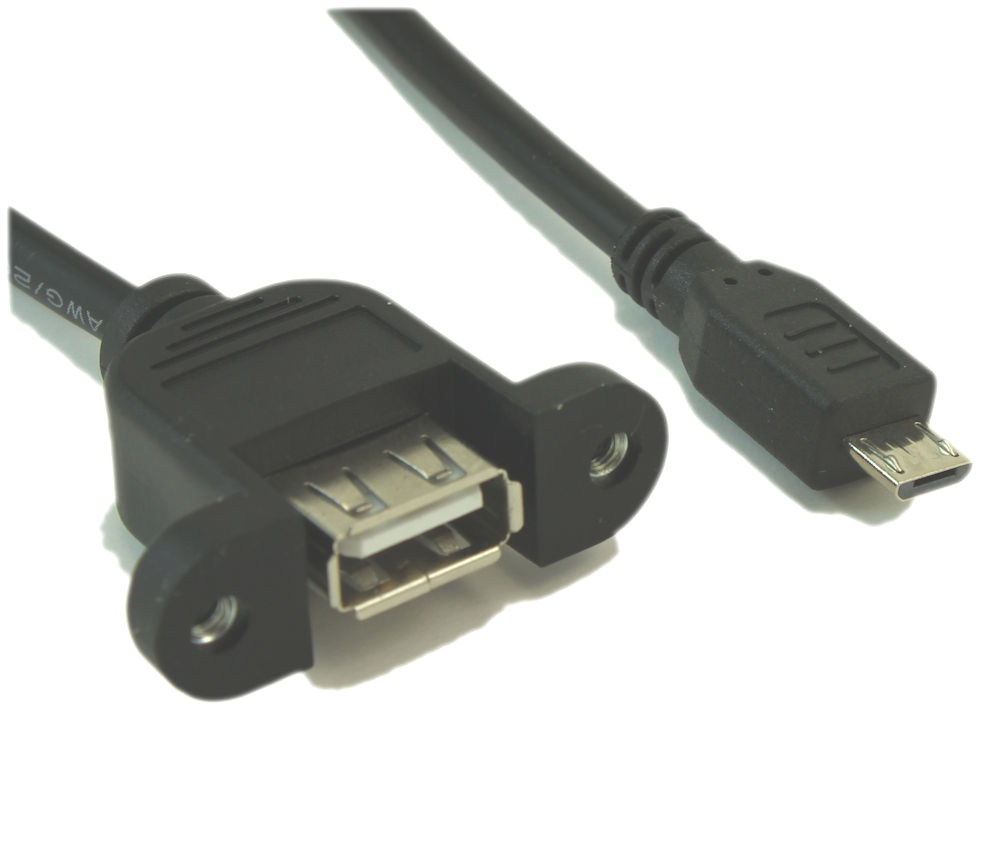

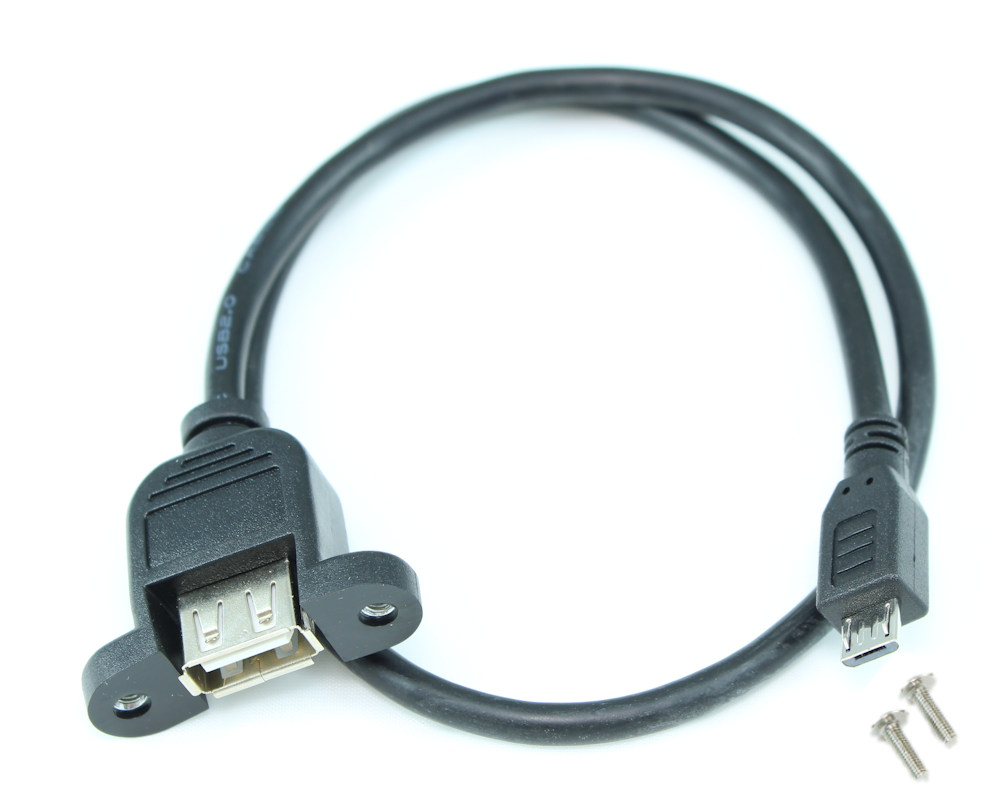

USB 2.0 Micro-B 5 MALE pin to A Female PANEL MOUNT Cable
|
|
|
|
|
|
|
Lengths Available: |
12in, 18in, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ACB5-PM-12IN, FE-ACB5-PM-18IN, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Type Micro-B Male |
Specification: |
USB 2.0 |
|
Connector B: |
USB Standard Type A Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
480Mbps |
|
Feature / Style: |
Panel Mount |
Images Length/Size Shown: |
18 IN |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
This is a PANEL MOUNT product. Supports USB speed up to 480Mbp. Micro-B Male connector is commonly found on many android phone devices. 2 mount screws included.
Technical Specifications:- USB v2.0 compliant
- Supports Hi-Speed, 480 Mbps
- Connector A: USB 2.0 Micro-B 5pin Male
- Connector B: USB 2.0 Female Panel Mount
- Panel Connector Dimension: 11.8mm Width, 38.0mm Height
- Panel Connector between bolt hole measurement: 29.0mm
- Shielded (Foil), 100% Copper (CU)
- 28AWG(7/0.12BC)*1P + 24AWG(7/0.2BC)*2C+AL+D
- Nickel plated conductors
- 2 Mounting bolts included
- Cable Outer Diameter: 4.5mm
- Color: Black
- RoHS-2 Compliant
|
