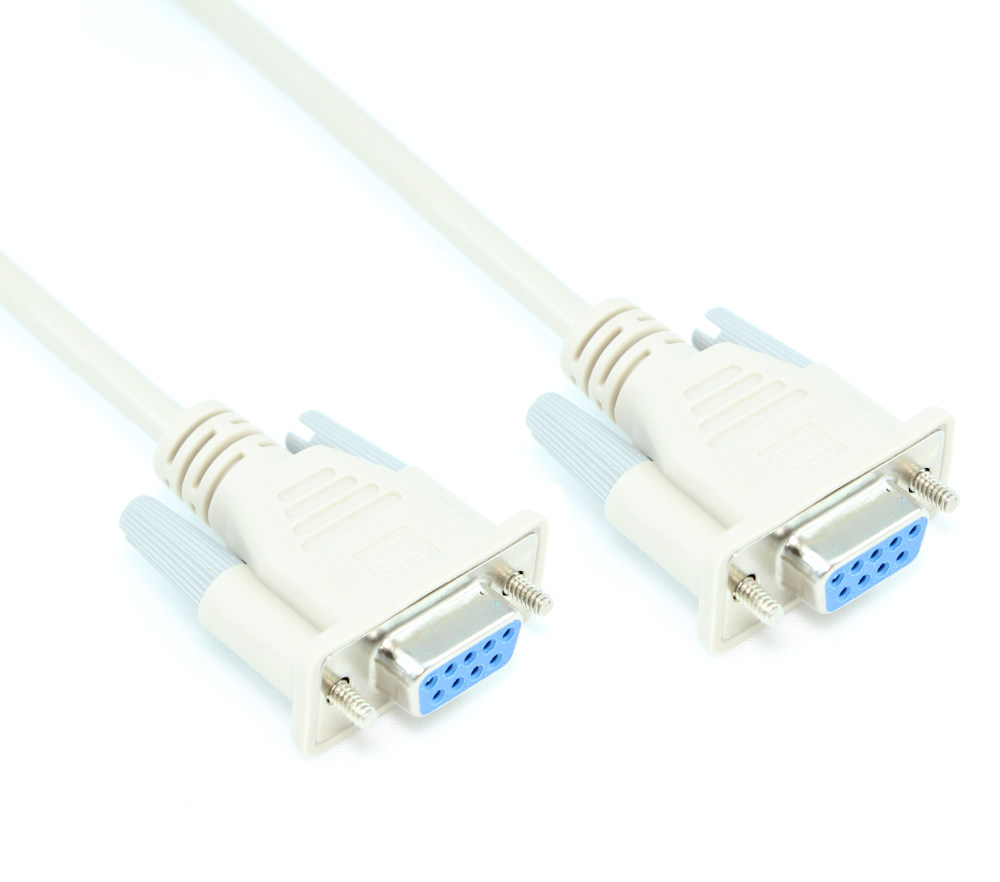

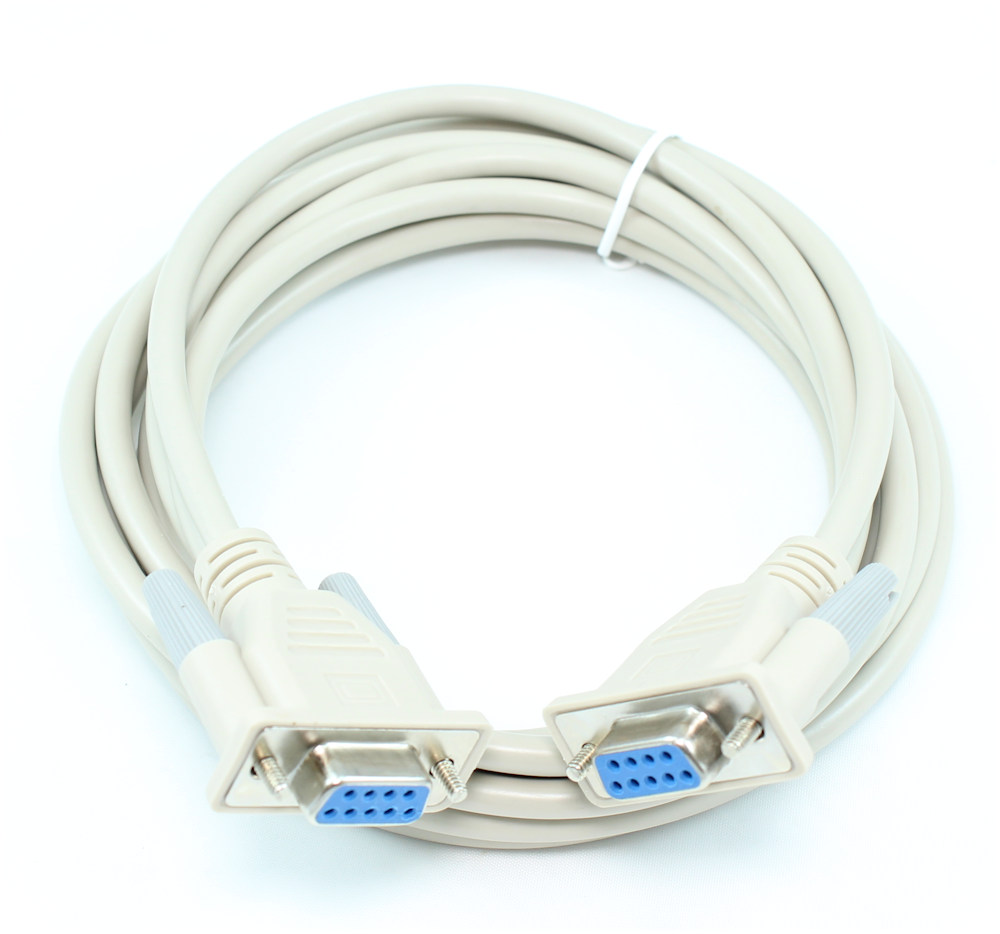

Serial DB9/DB9 Straight-thru RS232 Female to Female Cable
 |
|
| Lengths Available: | 3ft, 6ft, 10ft, 15ft, 25ft, | ||
| Colors Available: | |||
| Part Numbers this model: | BE-180225, FE-9F9F-06, FE-9F9F-10, FE-9F9F-15, FE-9F9F-25, | ||
| Sales Category: | Serial, Modem, & Parallel Printer Cables | Wire Gauge (AWG): | 30 AWG |
| Connector A: | Serial DB9 (RS-232) Female | Specification: | |
| Connector B: | Serial DB9 (RS-232) Female | Number Ports: | N/A |
| Export Tariff Code (HST): | 8544422000 | Transfer Rate: | |
| Feature / Style: | Images Length/Size Shown: | 10 FT | |
| # Positions: | 9 | Shielding: | |
| Convert From/To: | Type: | DB9 | |
- Fully wired/pinned (all 9 connectors)
- 9pin Female to 9pin Female connectors with Thumb Bolts
- 30AWG wires, CCS, AL Mylar shielding, drain wire
- PVC 45Pa jacket, ivory, ~5.0mm
- Voltage Tested to 300V/10ms
- Insulation resistance: 10M Ohm (min)
