Lengths Available: |
6in, 1.5ft, 2ft, 3ft, 6ft, 8ft, 12ft, 15ft, 20ft, 25ft, 35ft, 50ft, 75ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-4CTPR-06IN-MM, FE-4CTPR-01-MM, FE-4CTPR-02-MM, FE-4CTPR-03-MM, FE-4CTPR-06-MM, FE-4CTPR-08-MM, FE-4CTPR-12-MM, FE-4CTPR-15-MM, FE-4CTPR-20-MM, FE-4CTPR-25-MM, FE-4CTPR-35-MM, FE-4CTPR-50-MM, FE-4CTPR-75-MM, |
| |
|
|
Sales Category: |
3.5MM 4 Conductor Cables and Adapters |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
3.5mm TRRS 4 Conductor Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Stereo (4 Conductor, TRRS) |
Images Length/Size Shown: |
35 FT |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|

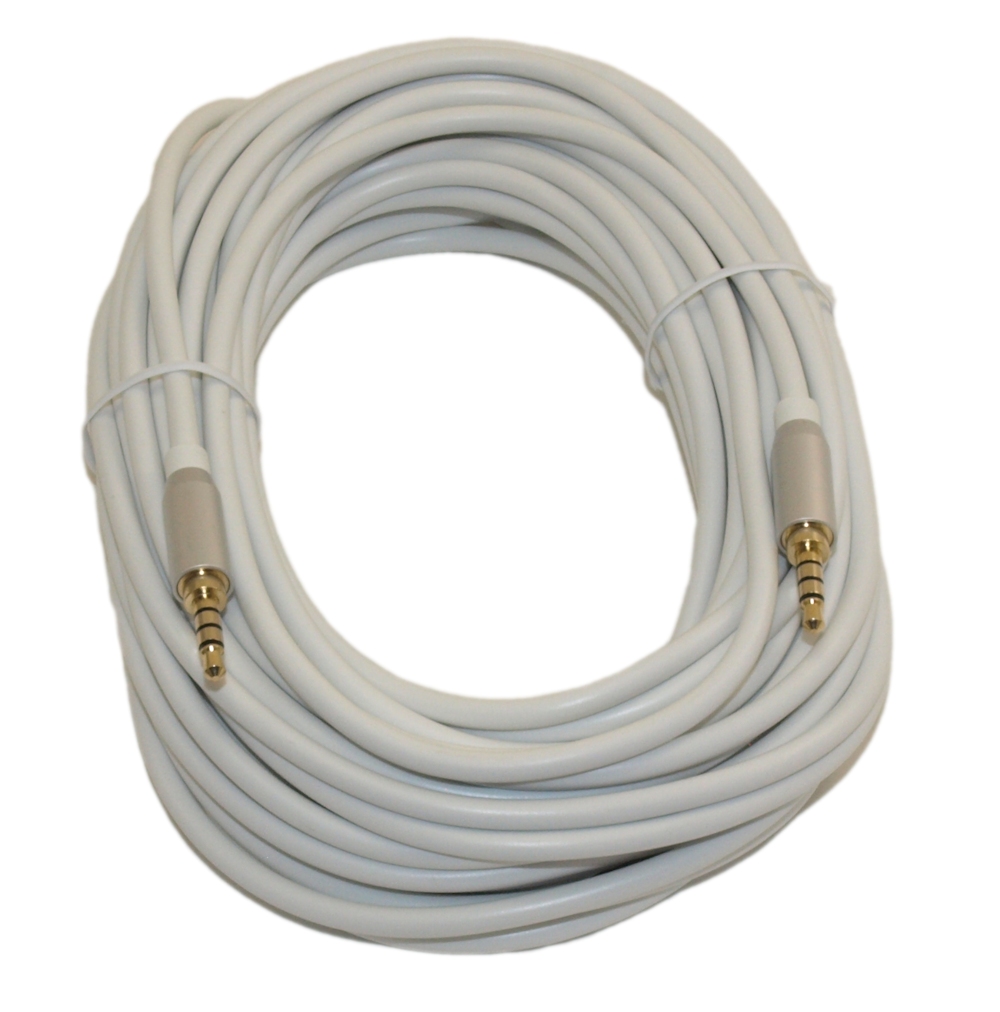

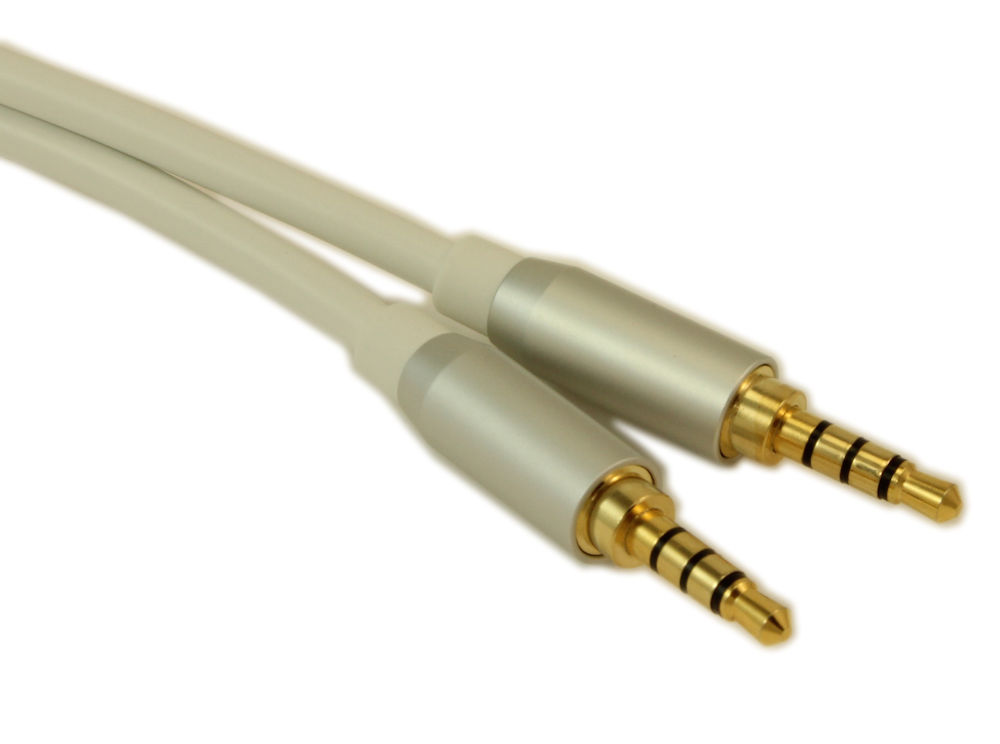

Our PREMIUM line of our 4 conductor cable connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has metal shell connectors (silver), gold plated conductors, and 28AWG stranded copper wire.
Specifications:- Connector: 3.5mm (1/8") Male to Male
- 4 conductor, connected straight through
- Outer Diameter of Cable: 3.5mm
- Outer Diameter of Metal Shell Connector (Silver): 8.4mm
- Durable connector to cable shell suitable for commercial or industrial usage
- 4 individually PVC protected 28AWG copper (CU) stranded wires (Red, White, Green, Yellow)
- Connector ends are GOLD PLATED
- RoHS-2 Compliant (Lead Free soldering)
- White PVC Cabling
- Silver Metal Shells
Compatibility Note: This cable MAY not be compatible with products that make use of volume or switching control
|
