3.5mm 4 Conductor TRRS BOTH ANGLED Mini +Mic / Video M/M Cable
|
|
|
|
|
|
|
Lengths Available: |
1.5ft, 3ft, 6ft, 10ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-4CT-01-90, FE-4CT-03-90, FE-4CT-06-90, FE-4CT-10-90, |
| |
|
|
Sales Category: |
3.5MM 4 Conductor Cables and Adapters |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
3.5mm TRRS 4 Conductor Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
4 Conductor |

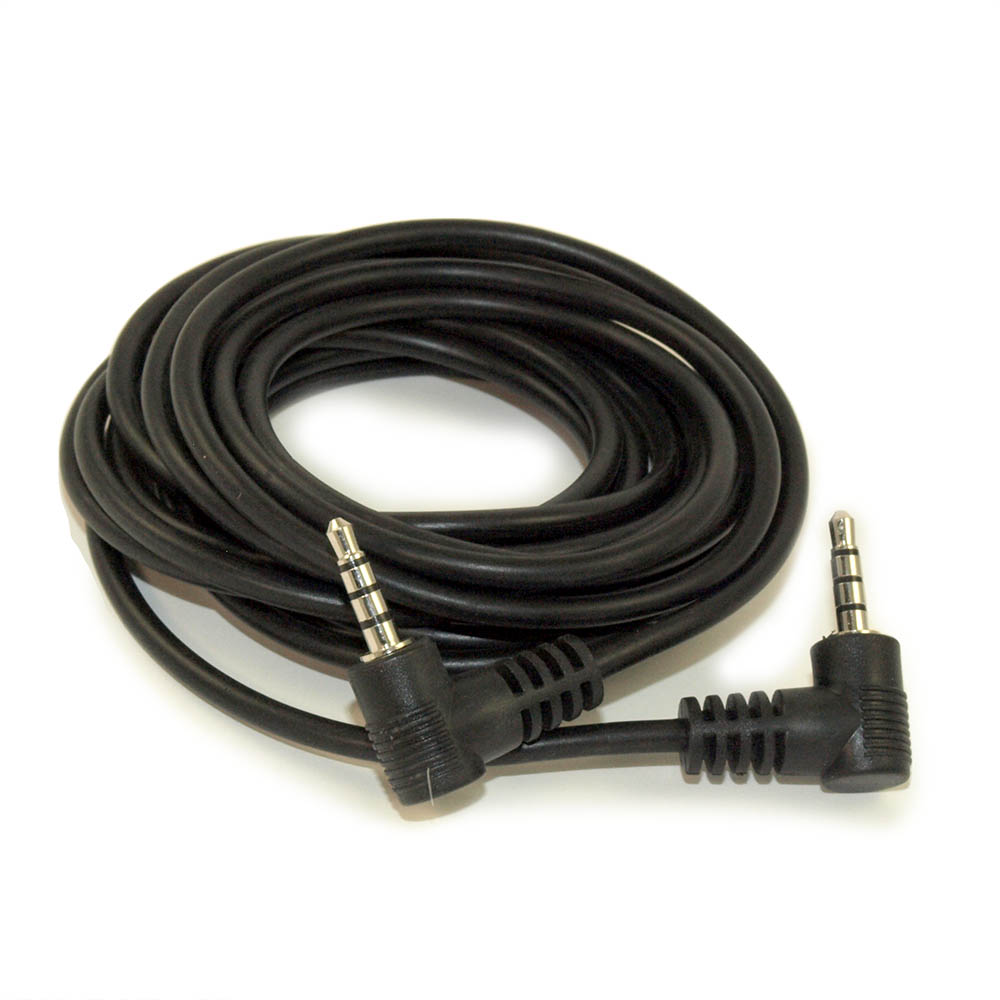

Images Length/Size Shown: |
10 FT |
|
# Positions: |
|
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
|
|
| |
Connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. Both ends are angled at 90 degrees.
Specifications:- Connector: 3.5mm (1/8") Male to Male
- 4 conductor, connected straight through

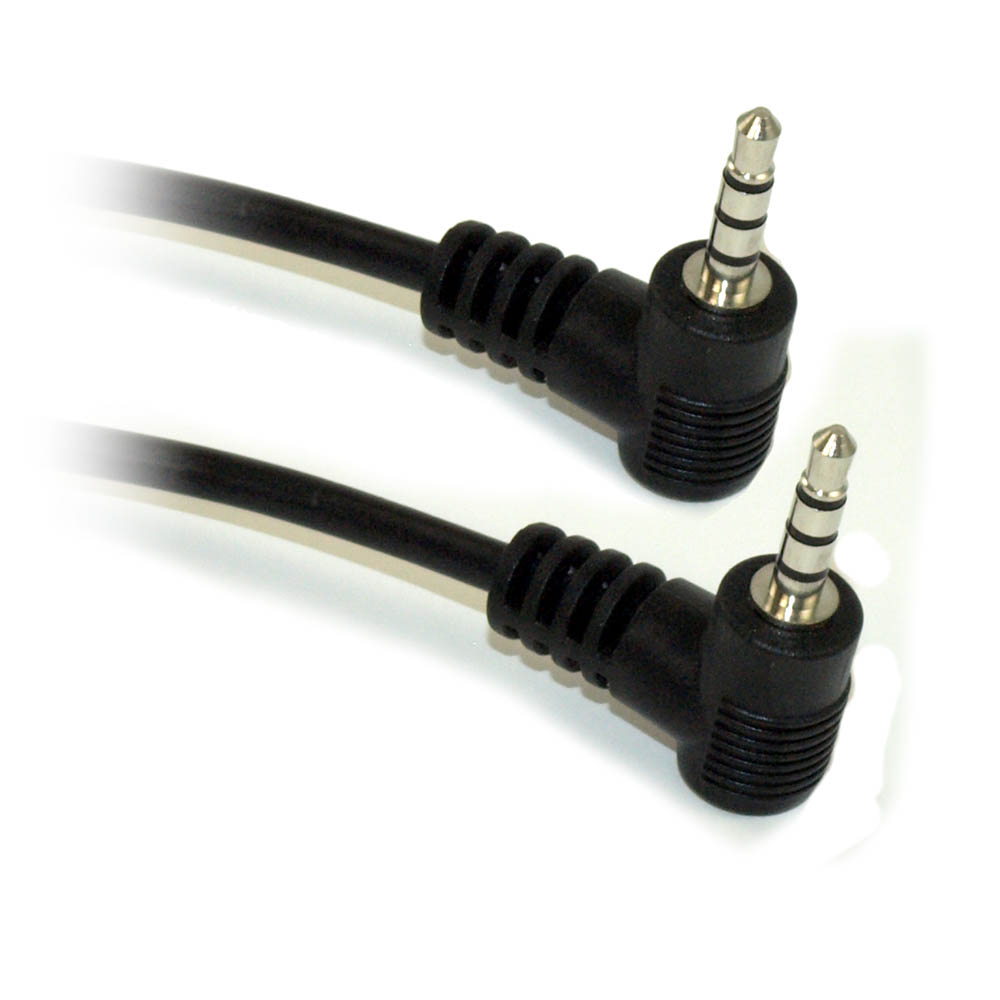

- End 1: 90 Degree Angle, End 2: 90 Degree Angle
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of Molded Connector: 10.3mm
- 4 individually PVC protected 30AWG wires (Red, White, Green, Black tip to sleeve)
- 28AWG Braided copper wire
- Outer Wire Diameter (OD): 3.0mm, Black
- RoHS Compliant
- See TECH DRAWING for 90 degree angle connector dimensions
- Connector end is nickel plated
|
