Lengths Available: |
6in, 10in, 1.5ft, 1.5ft, 2ft, 3ft, 6ft, 12ft, 15ft, 25ft, 50ft, |
|
Colors Available: |
Black, White,
|
|
Part Numbers this model: |
FE-4CT-06IN-MM, FE-4CT-10IN-MM, FE-4CT-01-MF, FE-4CT-01-MM, FE-4CT-02-MM, FE-4CT-03-MM, FE-4CT-06-MM, FE-4CT-12-MM, FE-4CT-15-MM, FE-4CT-25-MM, FE-4CT-50-MM, |
| |
|
|
Sales Category: |
3.5MM 4 Conductor Cables and Adapters |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
3.5mm TRRS 4 Conductor Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
4 Conductor |
Images Length/Size Shown: |

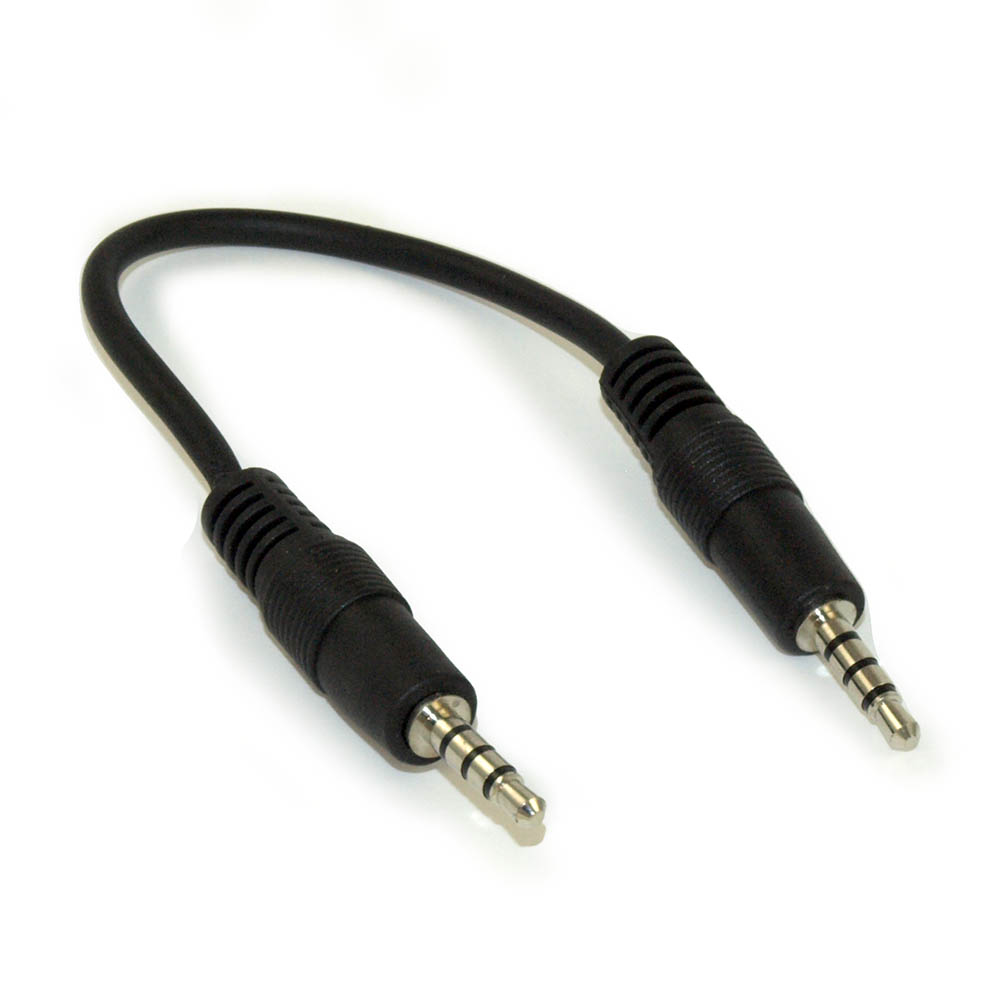

6 IN |
|
# Positions: |
|
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
|
|
Connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has a PVC jacket, molded ends with strain relief, and inner hood soldered 360 degrees.
Specifications:- Connector: 3.5mm (1/8") Male to Male
- 4 conductor, connected straight through
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of Molded Connector: 10.3mm
- 4 individually PVC protected 28AWG (Red, White, Green, Yellow)
- Conducting Wire: 7*0.12mm Copper, PVC OD: 3.5mm, black color
- Cable Shielding: No
- Connector ends: Nickel Plated
Compatibility Note: This cable MAY not be compatible with products that make use of volume or switching control
|
