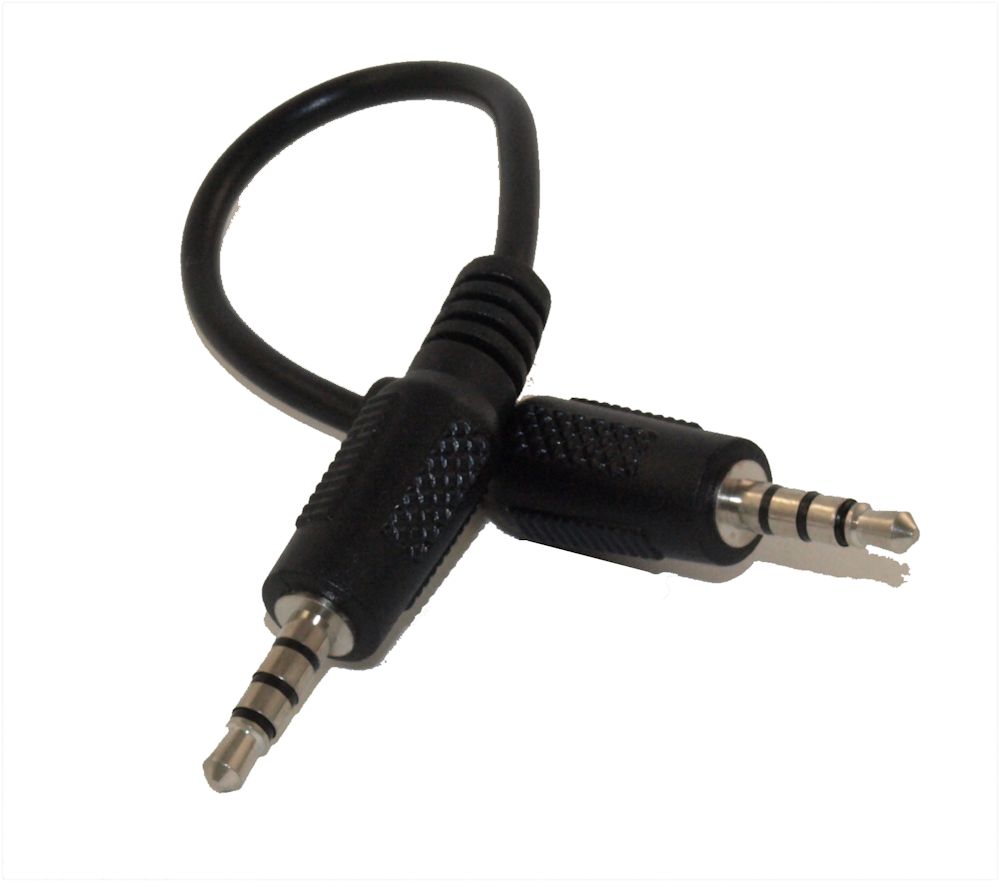

6inch 3.5mm 4 Conductor TRRS OMTP Male to 4 Conduct TRRS CTIA Male Adapter
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-4CT-06IN-CTIA |
| |
|
|
Sales Category: |
3.5MM 4 Conductor Cables and Adapters |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
3.5mm TRRS 4 Conductor Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
4 Conductor |
Images Length/Size Shown: |
6 IN |
|
# Positions: |
|
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
|
|
| |
This product is a SPECIALIZED CTIA to OMTP (or vice versa) 4 conductor cable. Most devices need a STRAIGHT THROUGH extension cable. Use this adapter cable if you have a device that uses the CTIA wiring standard and need to convert to the OMTP wiring standard (or vice versa)
Specifications:- Connector: 3.5mm (1/8") Male to Male
- 4 conductor, OMTP male to CTIA male
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of Molded Connector: 10.3mm
- 4 individually PVC protected 30AWG wires (Red, White, Green, Yellow)
- Connector end is nickel plated
|
