Lengths Available: |
6in, 10in, 1.5ft, 2ft, 3ft, 6ft, 12ft, 15ft, 20ft, 25ft, 35ft, 50ft, 75ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-3MM-6IN-MF, FE-3MM-10IN-MF, FE-3MM-01MF, FE-3MM-02MF, FE-3MM-03MF, FE-3MM-06MF, FE-3MM-12MF, FE-3MM-15MF, FE-3MM-20MF, FE-3MM-25MF, FE-3MM-35MF, FE-3MM-50MF, FE-3MM-75MF, |
| |
|
|
Sales Category: |
3.5MM & 2.5MM Cables and Adapters |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
3.5mm TRS Stereo Male |
Specification: |
|
|
Connector B: |
3.5mm TRS Stereo Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Stereo (3 Conductor, TRS) |
Images Length/Size Shown: |
12 FT |
|
# Positions: |
|
Shielding: |
- |
|
Convert From/To: |
|
Type: |
|
|

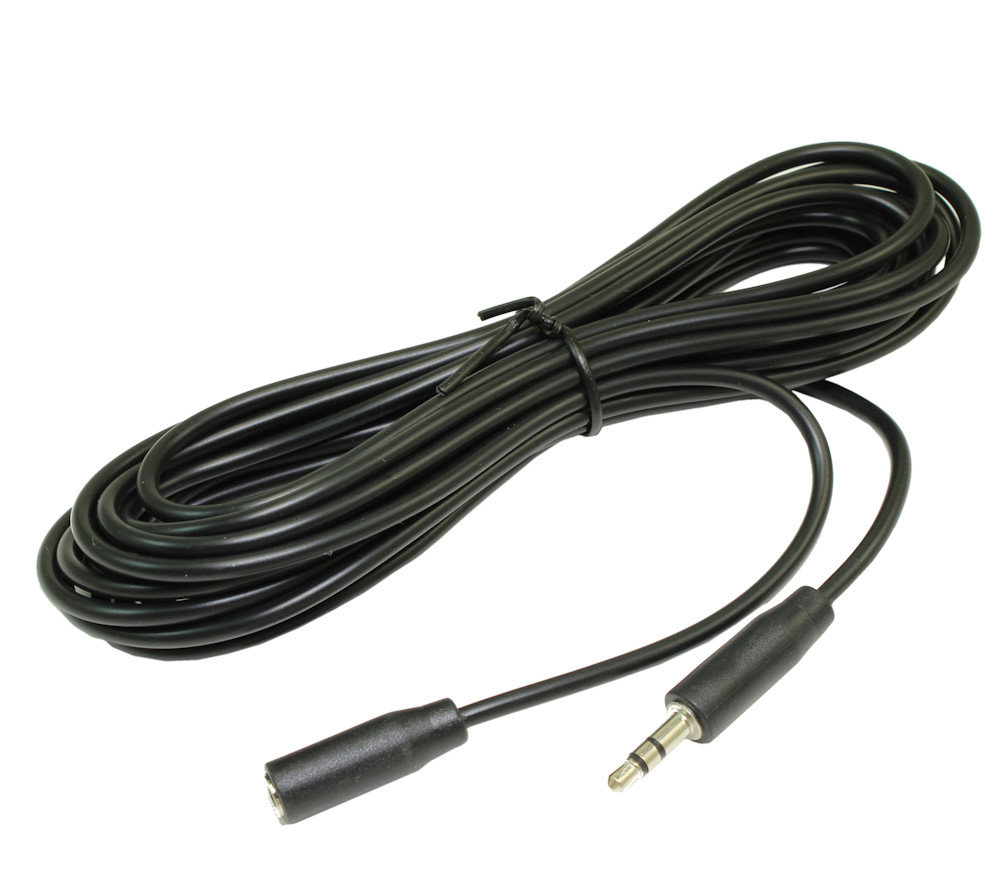

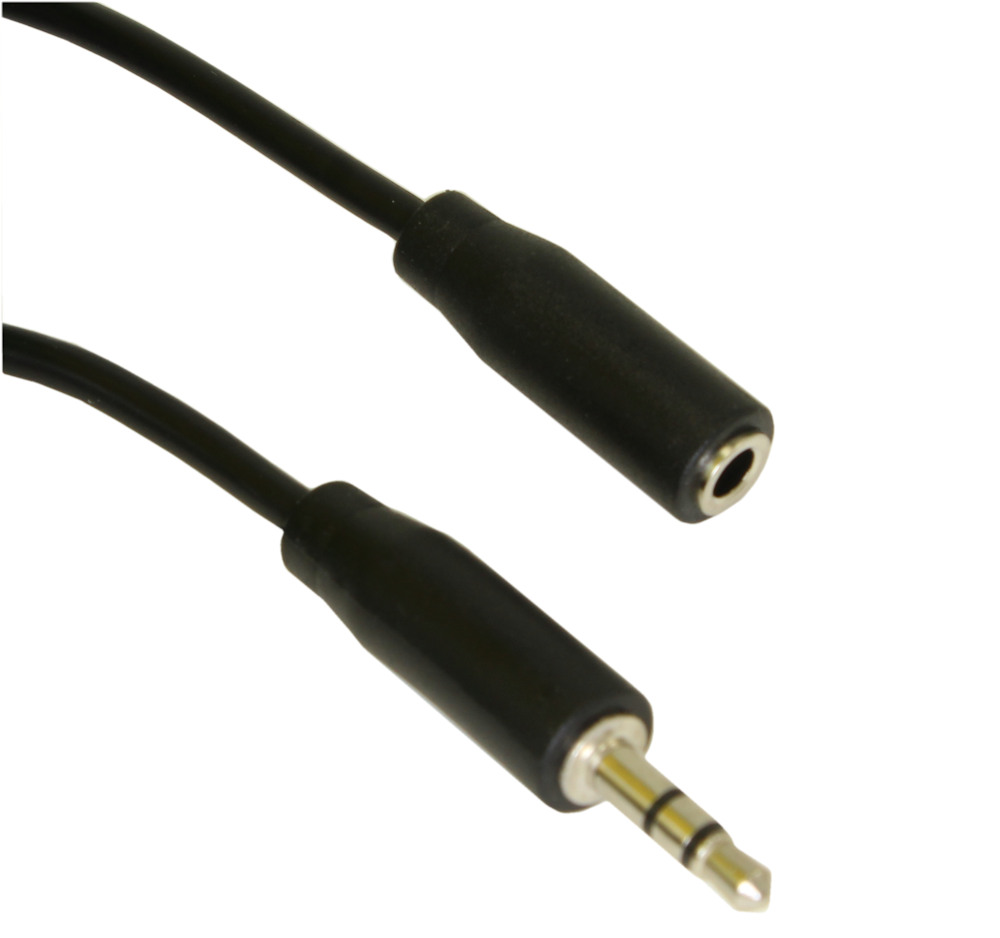

EXTENDS any stereo audio devices. Specifically design for computer or smart-phone audio applications. This revised model has SLIM PVC connector ends (8.5mm/0.33inch) at both the MALE and FEMALE end. It works with any PC sound card, speaker, headset, portable CD players, and microphone with a 3 conductor (2 black ring) 3.5mm connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This unshielded cable is ideal for general purpose audio.
Specifications:- Connector: 1 - 3.5mm (1/8") Male, 1 - 3.5mm (1/8") Female
- Outer Diameter of Cable: 3.00mm
- 3 Conductor TRS Stereo, 28AWG CCS
- Nickel Plated Connectors
- Insulation Type: PVC 1.00mm
- (SLIM) Outer Diameter of Molded Connector: 8.5mm, Length: 26mm
- Pin Assignments: 1-1, 2-2, 3-3 (See tech drawing)
- Temperate Min/Max Rating: -10 to 65 degrees C (14 F to 149 F)
- Cable Shielding: No
- Ferrite Cores: No
|
