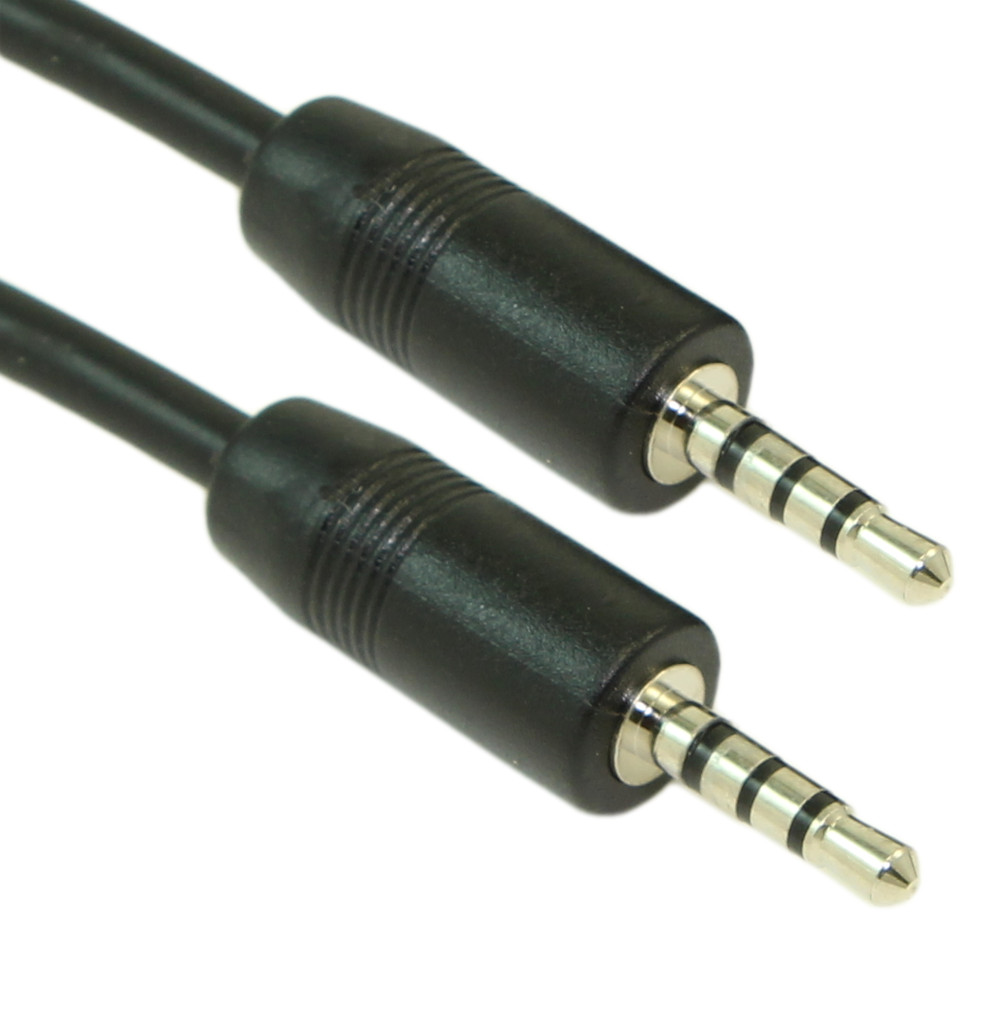

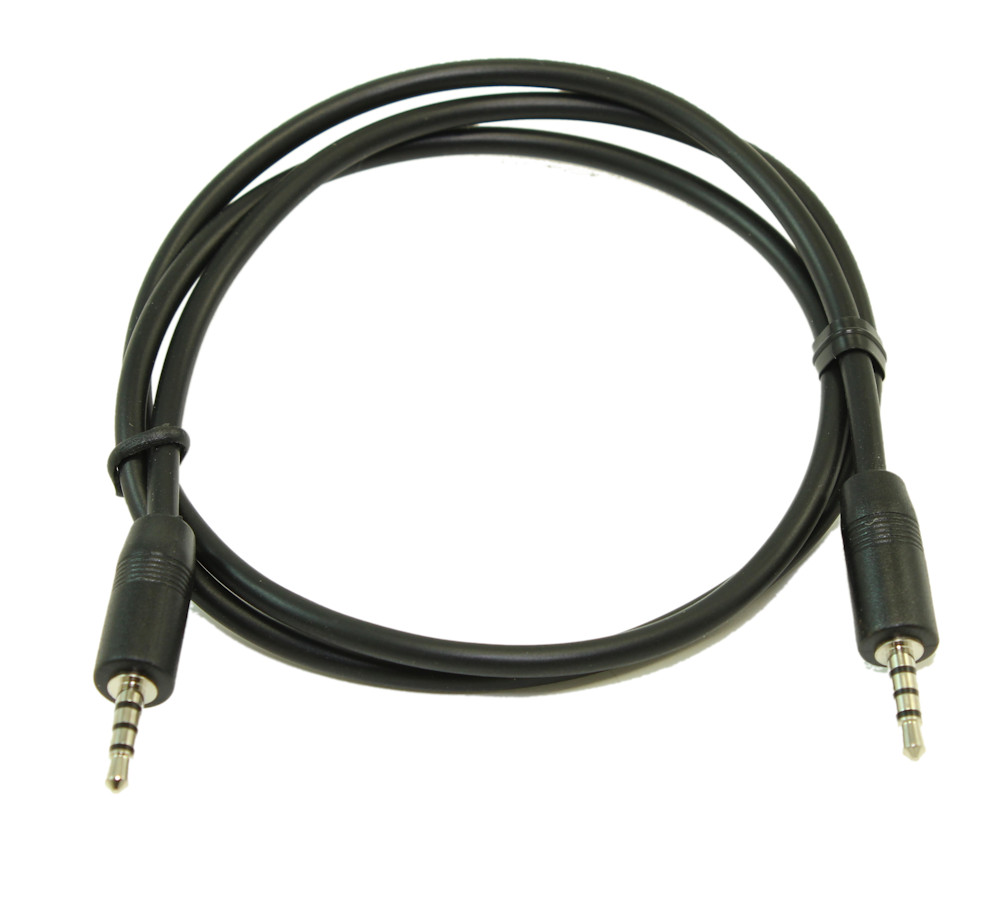

2.5mm SLIM TRRS (4 conductor) Male to Male Audio Cable


 Lengths Available: 6in, 1.5ft, 2ft, 3ft, 6ft, 12ft,
 Colors Available:
 Part Numbers this model: FE-25TRRS-6IN-MM, FE-25TRRS-01-MM, FE-25TRRS-02-MM, FE-25TRRS-03-MM, FE-25TRRS-06-MM, FE-25TRRS-12-MM,

 Sales Category: 3.5MM & 2.5MM Cables and Adapters  Wire Gauge (AWG): 28 AWG
 Connector A: 2.5mm TRRS 4 Conductor Male  Specification:
 Connector B: 2.5mm TRRS 4 Conductor Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Stereo (4 Conductor, TRRS) Images Length/Size Shown: 2 FT
# Positions: Shielding: -
Convert From/To: Type:

Connects any TRRS(4 conductor - 3 channel and ground) audio devices that use the smaller 2.5mm sub-mini (0.098 inches) connector. Basic shielding to protect against radio frequency and electromagnetic interference at the connector end. This cable has a PVC jacket, molded ends. This cable is NOT shielded. This cable has been redesigned with new slimmer PVC molded ends to fit into tight spaces. A TRRS cable typically is used for left/right audio PLUS a microphone connection OR left/right audio PLUS a video connection.

Specifications:
  • Connector: 2.5mm (0.098'') Male to Male TRRS 4 Conductor
  • Outer Diameter of Cable: 3.00mm
  • 4 Conductor, TRRS 28AWG
  • Nickel Plated
  • Insulation Type: PVC 1.00mm
  • (SLIM) Outer Diameter of Molded Connector: 8.4mm
  • Shielding: No
  • Connector end is nickel plated
NOTE: This cable is NOT suitable for STEREO (left/right) channel audio. This is a THREE CHANNEL (TRRS) cable
