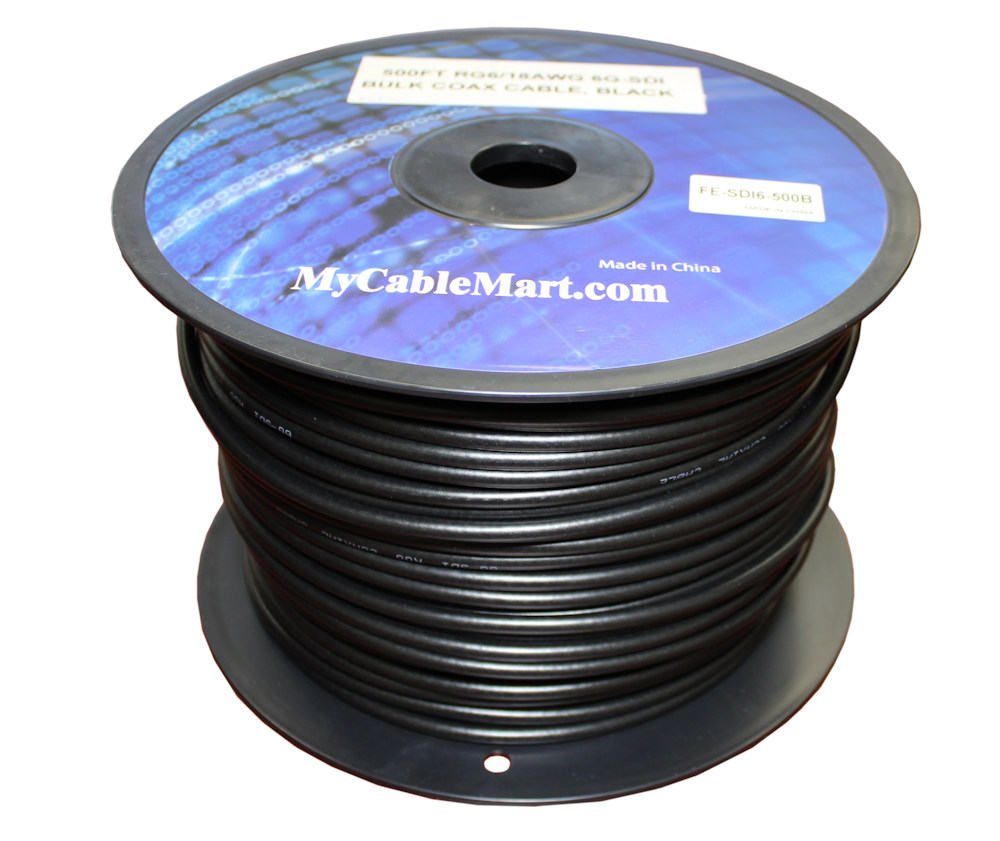

RG6/18AWG 6G-SDI (4K) Bulk Coax HD Video Cable, 6Ghz, BLACK **PER FOOT**


 Lengths Available: 8in, 12in, 1ft, 1.5ft, 2ft, 3ft, 6ft, 8ft, 10ft, 12ft, 15ft, 20ft, 25ft, 50ft, 75ft, 100ft, 150ft, 200ft, 250ft, 500ft, 1000ft,
 Colors Available: Black
 Part Numbers this model: FE-SDI6-8IN, FE-SDI6-12IN, FE-1FT-SDI6, FE-SDI6-01, FE-SDI6-02, FE-SDI6-03, FE-SDI6-06, FE-SDI6-08, FE-SDI6-10, FE-SDI6-12, FE-SDI6-15, FE-SDI6-20, FE-SDI6-25, FE-SDI6-50, FE-SDI6-75, FE-SDI6-100, FE-SDI6-150, FE-SDI6-200, FE-SDI6-250, FE-SDI6-500B, FE-SDI6-1000B,

 Sales Category: SDI (Serial Digital Interface) Cables  Wire Gauge (AWG): 18 AWG
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 1 FT
# Positions: Shielding:
Convert From/To: Type:

This product is sold PER FOOT. Order the number of feet that you need, and we will cut this TOTAL QUANTITY LENGTH for you! BNC/SDI terminators NOT included (sold separately).

This specialized 6G-SDI (Serial Digital Interface) standards to support 6 Gbps, and maximum resolutions to 4Kx2K (2160P30 YUV 4:2:2) at 30Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 6G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, and 3G-SDI specifications (SMPTE 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 6G-SDI cabling instead of HD-SDI, or 3G-SDI provides the future-proofing you need!

Specifications:

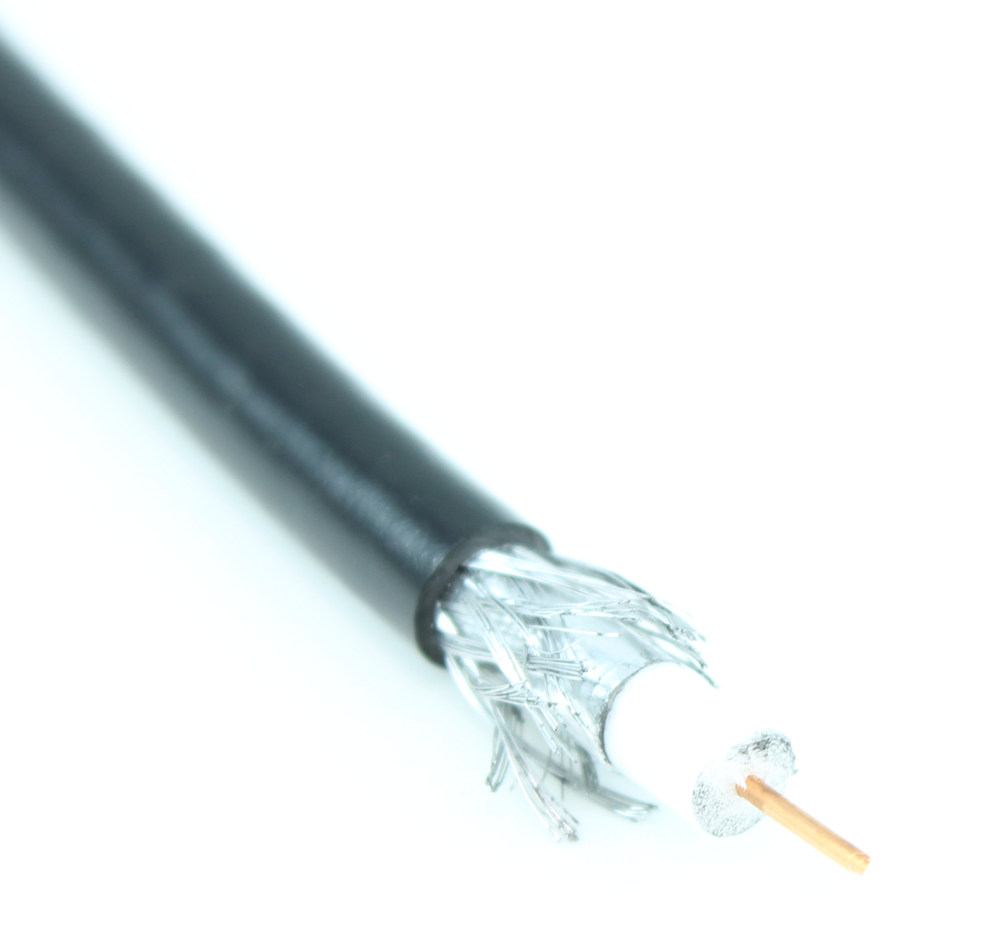

  • 6G-SDI RG6 Coaxial Cable
  • Meets SCTE IPS-SP-001, UL1655, UL13, UL444
  • RoHS 3 Compliant
  • 18AWG bare solid copper core (1.0mm)
  • Nominal Thickness: 0.07 inches
  • Diameter from Shielding: 5.4mm
  • Outer Insulation Diameter: 7.0mm
  • Diameter from Dielectric: 4.8mm
  • Braided and Foil shielded
  • Temperature Rating: -20 to 60 C
  • Impendence: +-3.0 Ohms 75
  • Conductor DCR@20C: 28.6
  • Capacitance: 15.5 pF/ft
  • Performance: 1Mhz to 3000Mhz: 0.89 to 37.88 db/100m) - see PDF document for complete table


Pre-cut BULK CABLE is NOT returnable under any circumstances
