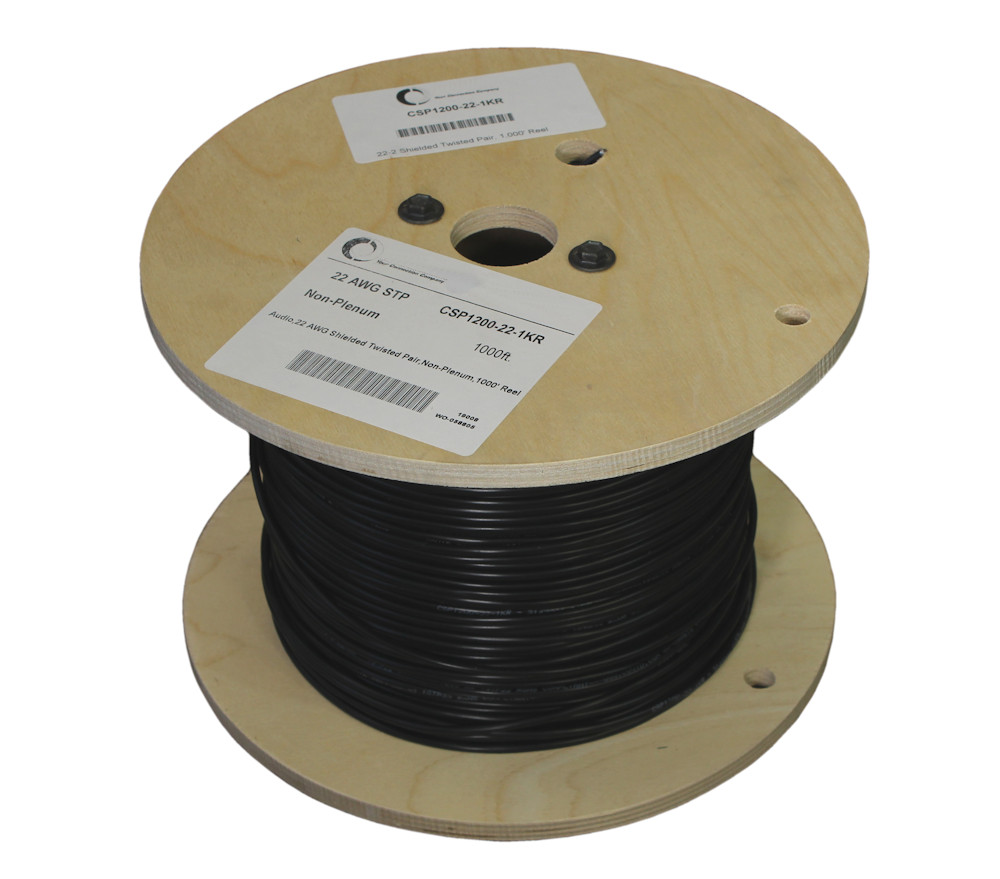

1000ft Shielded Twisted Pair 22AWG/2 Conductor, Black

Lengths Available:
Colors Available:	Black
Part Numbers this model:	CV-CSP1200-22-1KR

Sales Category:	RG6 Coax Cables and Adapters	Wire Gauge (AWG):	22 AWG
Connector A:	Not Applicable	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	1000 FT
# Positions:		Shielding:
Convert From/To:		Type:

Audio Cable - 22 AWG Shielded Twisted Pair - Non-Plenum. Suitable for making your own XLR, 1/4inch, or other professional using 2 conductor, or 3 conductor (using drain wire as ground) cable.

Specifications:

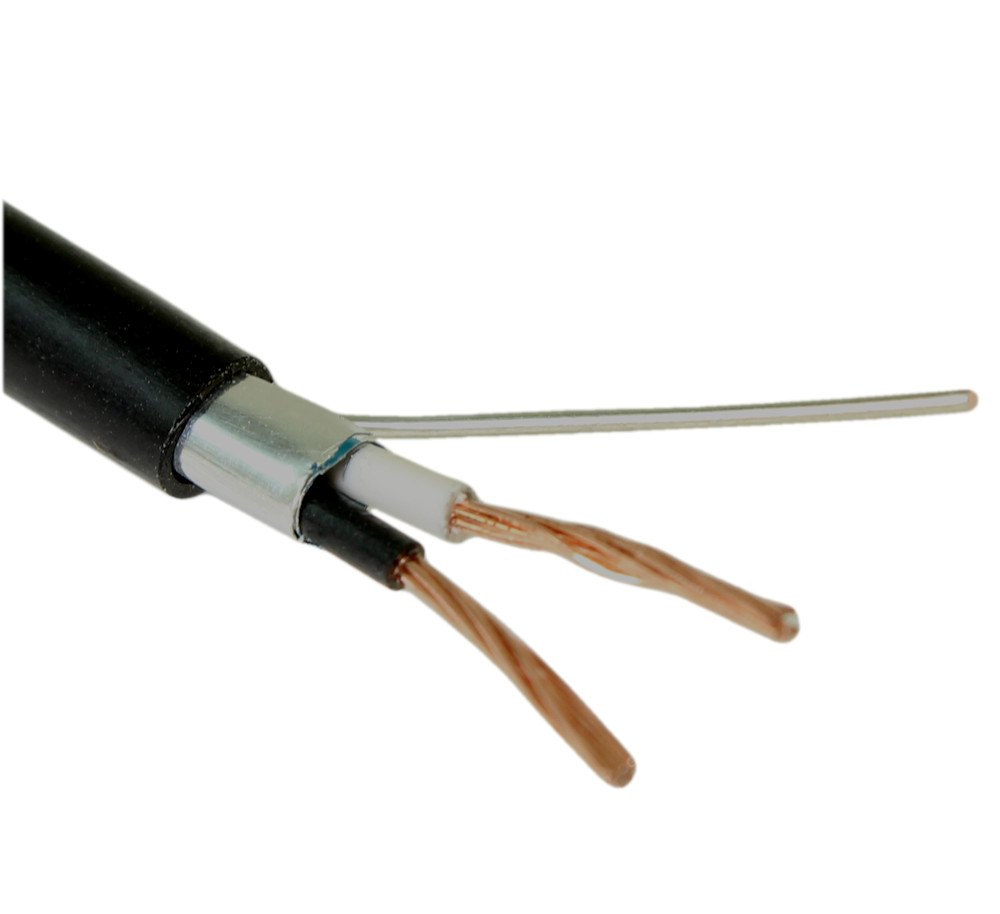

22AWG 2 Conductor + 1 Drain wire + Shield Foil
Stranded Pure Copper Wire (CU)
PVC Jacket, Black, Nylon Rip Cord
Outer Diameter: ~0.133in
Test Voltage: 300v, 12Ohms/1,000ft
Shield Type: Aluminum/Mylar 25% Overlap, Drain: 22 AWG (7/26) Bare Copper, Tinned Stranded Copper
UL Listed, Rohs 3
