Lengths Available: |
6in, 1.5ft, 3ft, 3ft, 6ft, 10ft, 15ft, 25ft, 35ft, 50ft, 75ft, 100ft, 150ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-VGA-6IN, FE-VGA-01F, FE-VGA-03F, BE-180440, BE-180455, BE-180456, MR-SVGAF-15MM, FE-VGA-25F, FE-VGA-35F, FE-VGA-50F, FE-VGA-75F, FE-VGA-100F, FE-VGA-150F, |
| |
|
|
Sales Category: |
VGA Cables & Adapters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
VGA HD15 Male |
Specification: |
|
|
Connector B: |
VGA HD15 Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
3 FT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|

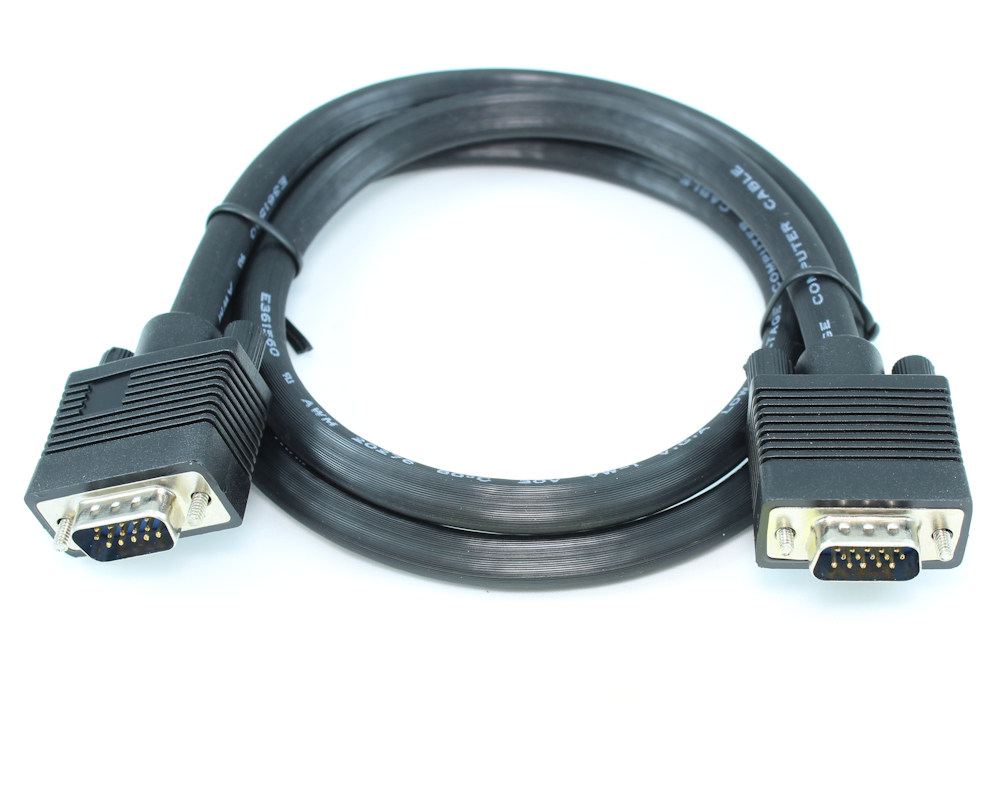

This VGA Male/Male cable features a low loss, double shielded design. Comes with durable molded connectors with thumbscrews (at both male and female end) for a secure connection. Great for connecting high resolution analog displays. Comes with a lifetime warranty for peace of mind. 2 Male 15pin connections, VGA connections are also commonly referred to as HD15, DB15 (a misnomer), PC in/out, RGB and RGBHV. This is a FULLY PINNED, FULLY WIRED (15 wires) cable for full DDC2/E-DDC support.
Specifications:
- Supports all VGA monitors including analog flat panel display, high resolution desktop, CAD and graphic workstations.

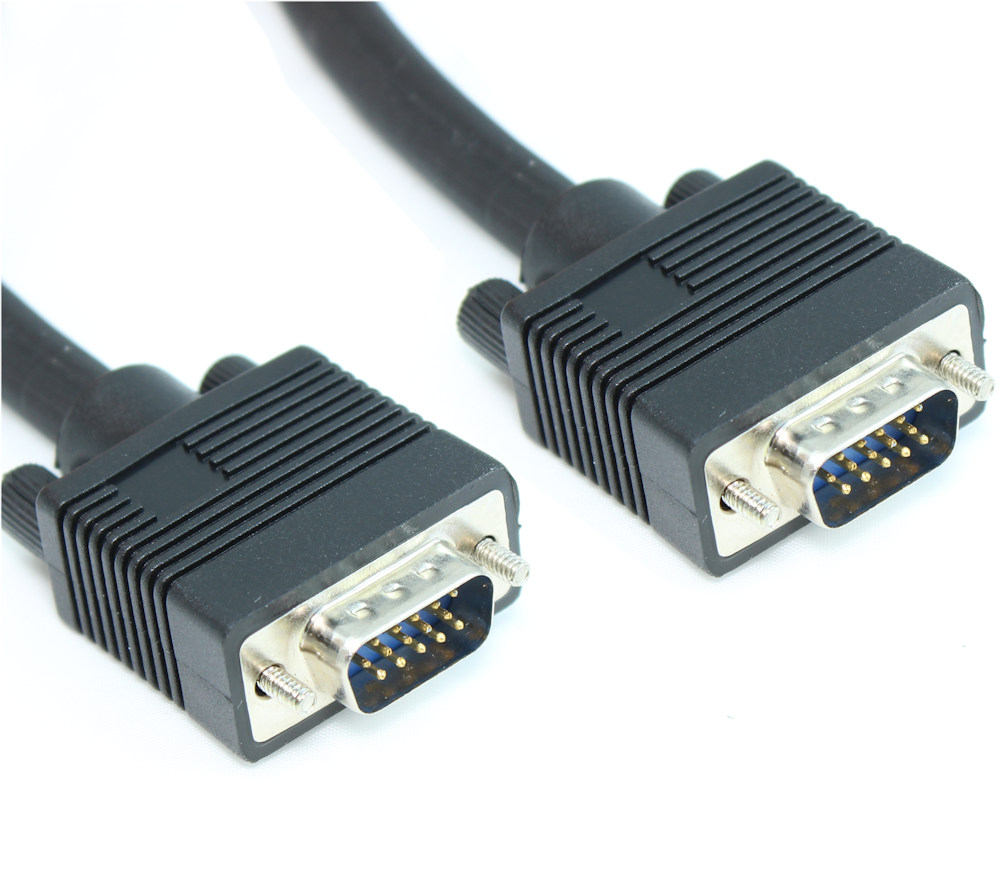

- 2 MALE Connectors: Fully Pinned 15 male with thumb-bolts
- All 15 wires connected "straight through"
- Supports resolutions UP TO 2048X1536px @85 Hz (388 MHz). Max Resolution obtained may vary depending on signal strength and cable length.
- Wiring Connection: Wires/Pins 1, 2, 3: Coax; 6, 7, 8 G: straight through but also connected to drain (G); remainder of wires straight through
- Triple shielded for maximum graphics performance preventing signal loss, screen ghosting & loss of color
- DDC2/E-DDC Data Support (for monitor detection by OS)
- Gold Plated Connectors
- Have matched impedance w/PVC jacket
- Color: Black
|
