Lengths Available: |
6in, 10in, 12in, 1.5ft, 3ft, 3ft, 6ft, 10ft, 15ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-USB-AA-6IN, FE-USB-AA-10IN, FE-USB-AA-12IN, FE-USB-AA-01, FE-USB-AA-03, BE-150103BK, BE-150104IV, FE-USB-AA-10, FE-USB-AA-15, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Standard Type A Male |
Specification: |
USB 2.0 |
|
Connector B: |
USB Standard Type A Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
480Mbps |
|
Feature / Style: |
Data Transfer and Charge |
Images Length/Size Shown: |
6 FT |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
Latest USB version 2.0 specification, supports the new High Speed data rates of the latest USB 2.0 peripheral devices! And is also fully compatible with all earlier USB devices.

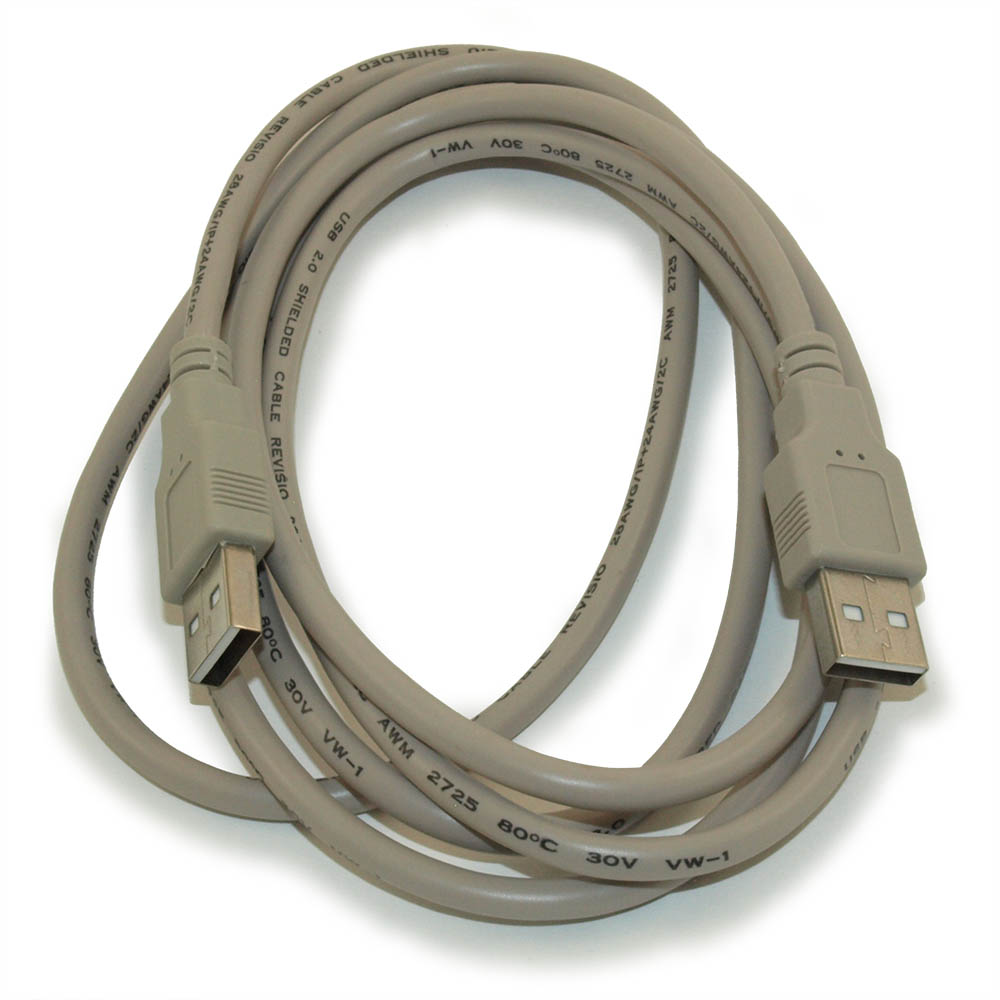

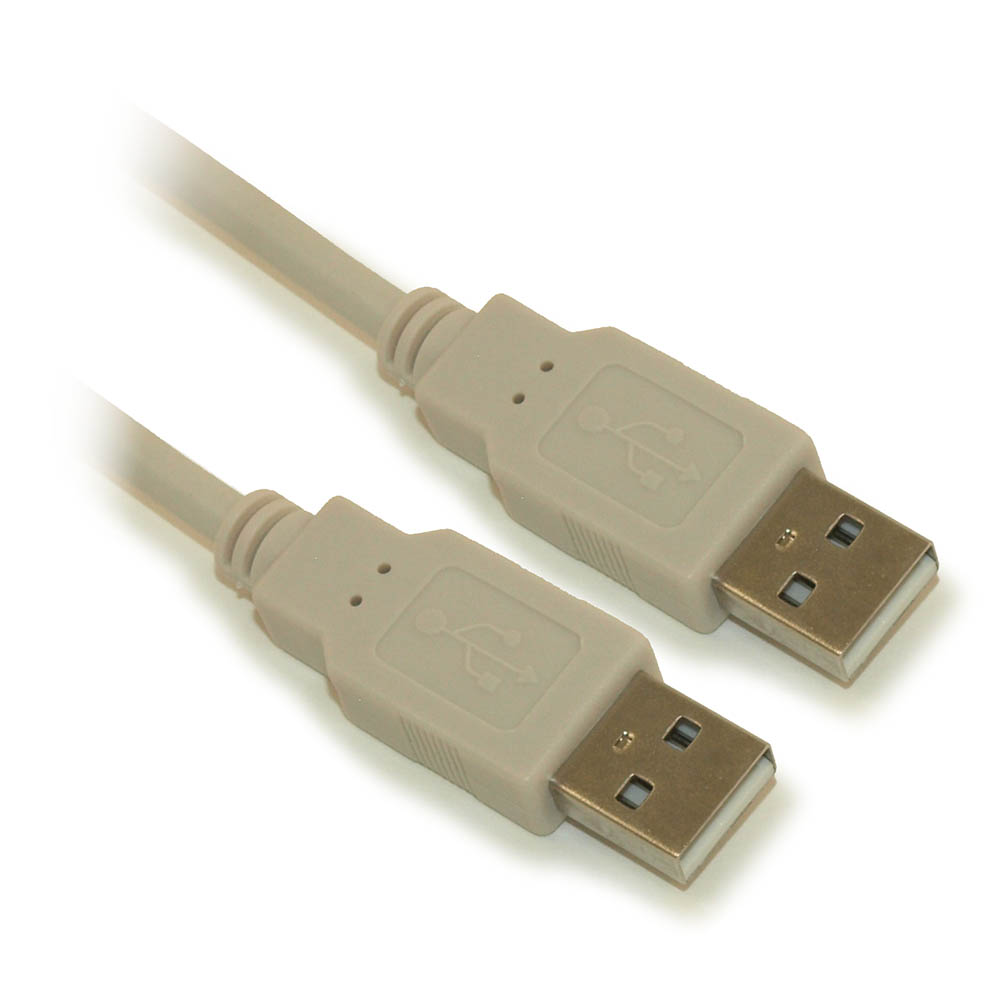

Brand-new! Fully Guaranteed! Use with both PC and Apple systems. Great for external drives, printer, scanner, CDRW, etc. High quality, standard A-to-A, Male-to-Male cable with molded connectors. This standard cable will connect your computer to most USB devices.
Specifications:
- Cable Ground AWG: 28AWG*1P
- Conductor AWG: 24AWG*2C TC
- Shielding: Braid 32*0.12mm CCAM
- Cable Outer Diameter (OD): 4.5mm
- Connectors: USB 2.0 A type 4 conductor both ends
- Withstanding Voltage: DC 200v 0.01 Sec
- Insulation Resistance: 10m Ohms min
- Conductive Resistance (tested on 6 inch sample): 3 Ohms Max.
- Cable Outer Diameter (OD): 4.5mm
|
