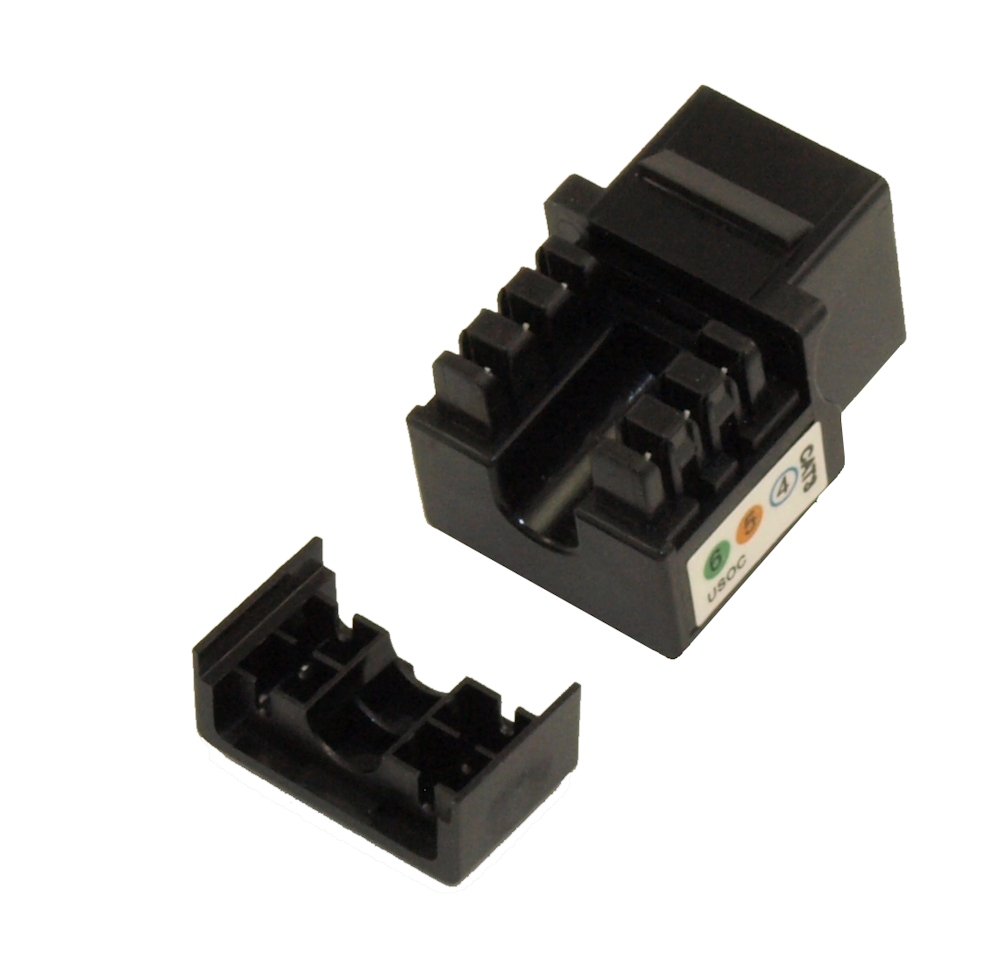

Keystone Wallplate Jack Insert/Punch-down for Phone (RJ11/RJ12) for 2/3 Lines

Lengths Available:
Colors Available:
Part Numbers this model:	BE-101501BK

Sales Category:	Wallplate: Keystone	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Telephone RJ11 Female	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	EA
# Positions:		Shielding:
Convert From/To:		Type:

Easy to use, tool-less (no soldering or screwdriver req.) modular RJ-11/12 Keystone jack. To be used with keystone wall plate or panel, suitable for standard phone connections. Up to 3 line phone support. Wiring diagram on clip. North American wiring conventions use the paired BLUE middle connectors for line 1, the TAN/ORANGE connectors for line 2, and optionally, the GREEN outer connectors for line 3.
RJ-11/12 Keystone Jack is 6-position 6-conductor (6P6C) and designed for voice application. The jack is compatible with all RJ11 and RJ12 modular plugs and wall plates.
Specifications and Features:

Terminate with 110 punch down tool

Includes an integrated color wiring diagram

Compatible with all wall plates, surface mount boxes, and blank patch panels

Works with all modular phone wires

Available in black, ivory, white (this product is BLACK)

Termination cap included

UL listed
Installation Note: When using our 4 and 6 hole Decora Plate Inserts, these inserts can NOT be installed "side-by-side" as the hole inserts are spaced too closely
