Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 14ft, 15ft, 20ft, 25ft, 30ft, 50ft, 100ft, |
|
Colors Available: |
Black, Blue, Gray, Green, Orange, Purple, Purple, Red, White, Yellow,
|
|
Part Numbers this model: |
BE-100516WT, BE-100501WT, FE-C5-02-WHI, HA-C5-03-WHI, BE-100500WT, BE-100504WT, BE-100513WT, HA-C5-07-WHI, FE-C5-10-WHI, FE-C5-14-WHI, BE-100507WT, BE-100514WT, FE-C5-25-WHI, FE-C5-30-WHI, BE-100509WT, BE-100511WT, |
| |
|
|
Sales Category: |
CAT 5E Networking Cables |
Wire Gauge (AWG): |
24 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
20 FT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|

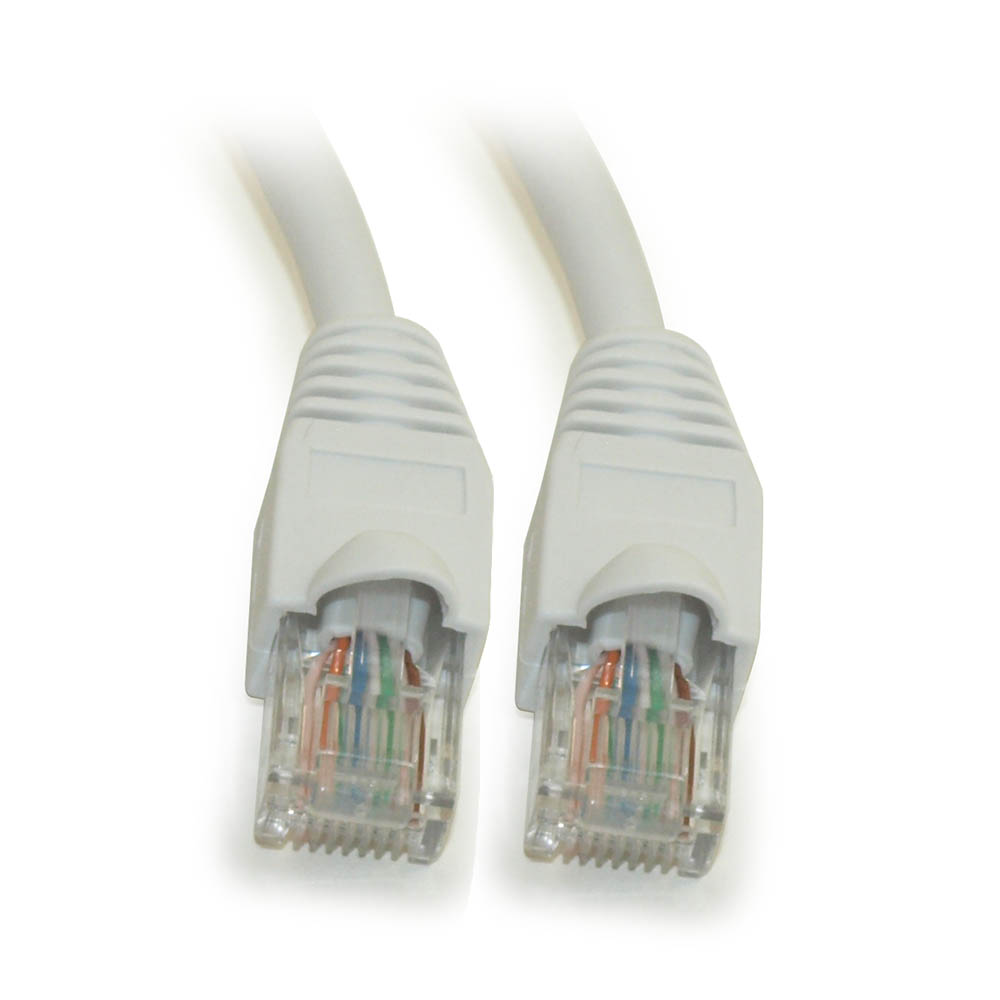

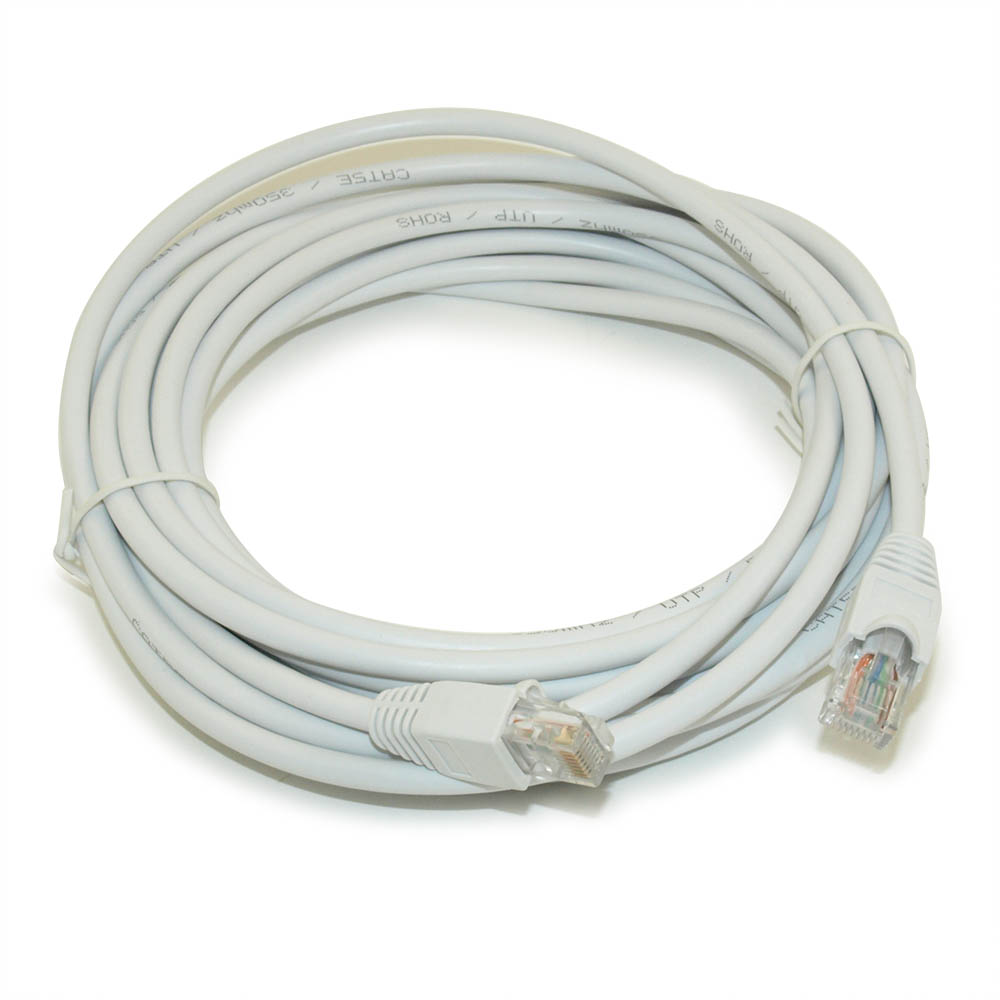

Connects any CAT5 or CAT5E (Enhanced) application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. Uses stranded wires for added cable flexibility.
Technical Specifications:- 24AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 1000ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for up to 1Gbit Networks in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- Cable Category: CM NEC Rated for In-wall installation (Home or business)
- EIA/TIA TSB-40A ETL Verified, for Stranded 568B standards
- 50u" Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS Compliant
- UL Listed
|
