Lengths Available: |
6in, 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 10ft, 20ft, 25ft, 30ft, 35ft, 40ft, 50ft, 60ft, 75ft, 100ft, 150ft, 200ft, ea, |
|
Colors Available: |
Black, Gray,
|
|
Part Numbers this model: |
FE-C5-6IN-BLK, FE-C5-01-BLK, BC-C5MB-2BLK, FE-C5-03-BLK, FE-C5-04-BLK, FE-C5-05-BLK, FE-C5-06-BLK, BE-100505BK, BE-100506BK, FE-C5-20-BLK, FE-C5-25-BLK, BE-100519BK, BC-C5MB-35-BLK, HA-C5-40-BLK, FE-C5-50-BLK, FE-C5-60-BLK, BE-100510BK, BE-100511BK, BE-100512BK, BE-100515BK, BC-C5MB-14BLK, |
| |
|
|
Sales Category: |
CAT 5E Networking Cables |
Wire Gauge (AWG): |
24 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
USB 40Gbps (USB4 40Gbps) |
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
40Gbps |
|
Feature / Style: |
Molded/Snagless Plug to Plug |
Images Length/Size Shown: |
150 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Unshielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|

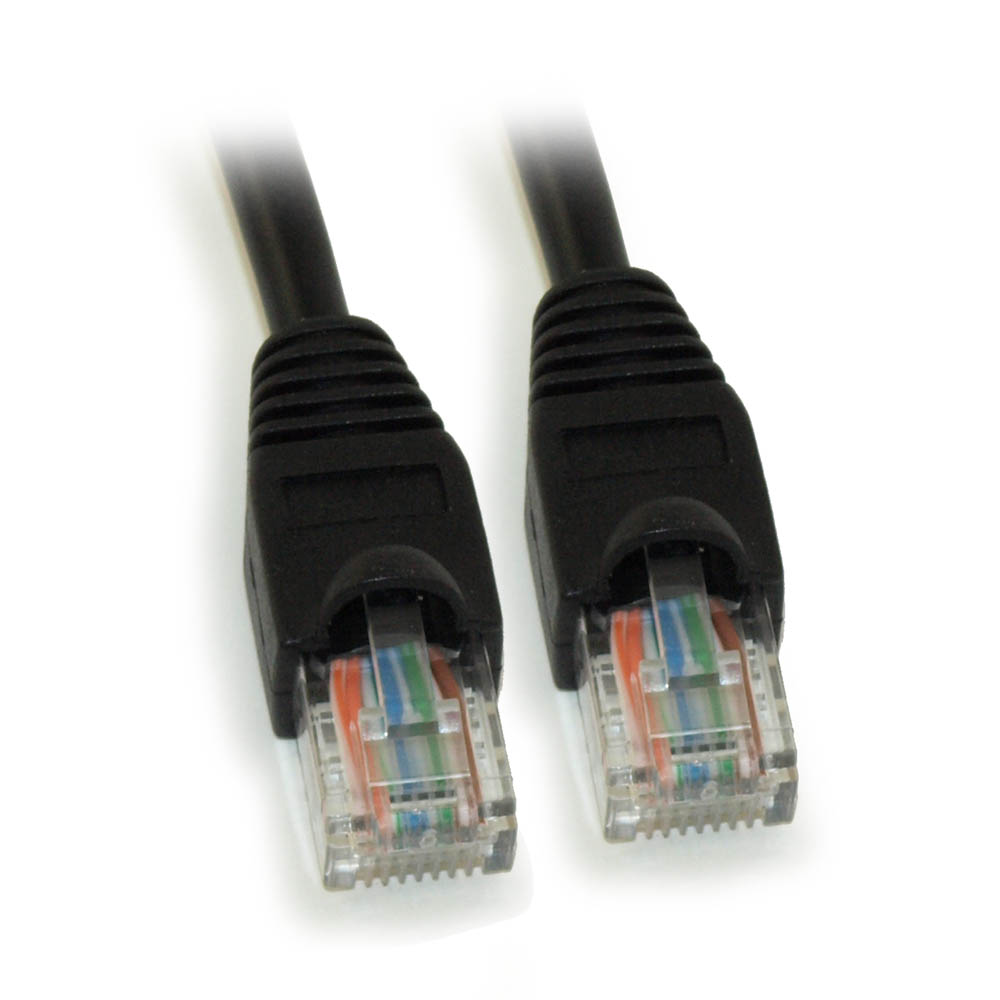

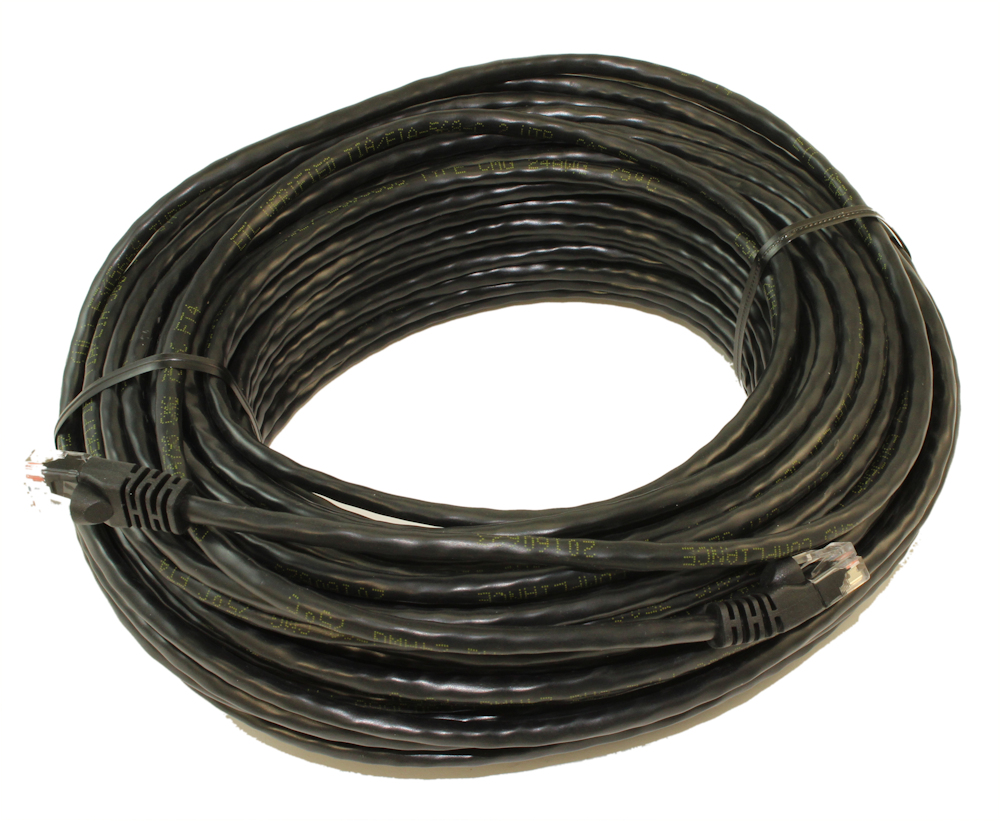

Connects any CAT5 application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. It has stranded wires for added cable flexibility. (Length: 150ft; Color: Black)
Technical Specifications:- 24AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 1000ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for up to 1Gbit Networks in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- Cable Category: CM NEC Rated for In-wall installation (Home or business)
- EIA/TIA TSB-40A ETL Verified, for Stranded 568B standards
- 50u" Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS Compliant
- UL Listed
|
