Lengths Available: |
1ft, 2ft, 3ft, 5ft, 7ft, 10ft, 15ft, 25ft, 35ft, 50ft, 300ft, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
BE-100371BK, BE-100372BK, BE-100373BK, BE-100375BK, BE-100377BK, BE-100378BK, BE-100360BK, BE-100361BK, BE-100362BK, BE-100363BK, BE-101022BL, |
| |
|
|
Sales Category: |
CAT 8 Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
Molded Plug, Strain Relief Jack to Plug |

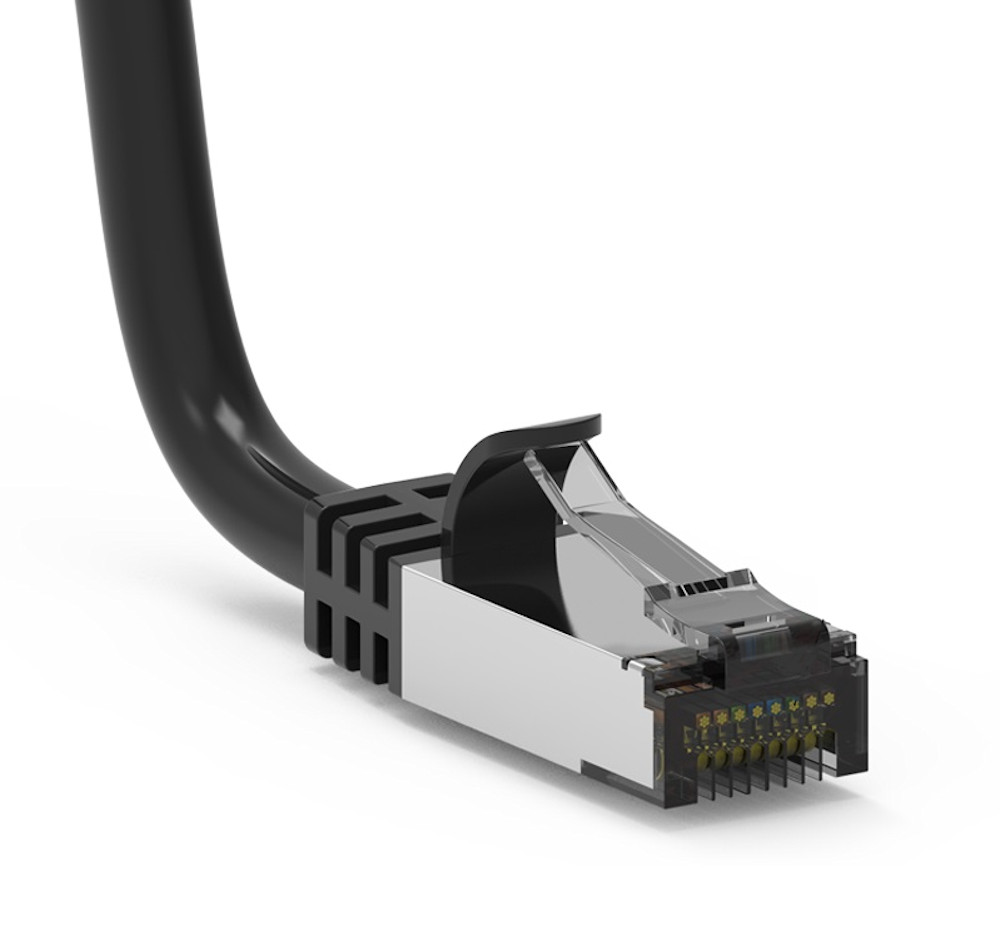

Images Length/Size Shown: |
10 FT |
|
# Positions: |
8p8c (RJ45, Ethernet) |
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
Round Cable |
|
Cat 8 26AWG Ethernet Network Cables are capable to reach up to 40Gbps transfer speeds and up to 2GHz bandwidth using copper conductors and RJ45 connectors. Cat8 Ethernet Cables are the first future proof, cost effective, high performance solution, besides Cat 8 patch cables are backwards compatible with all categories Cat.5E, Cat.6, Cat6A, Cat.7.
Technical Specifications:- Complaint with TIA/EIA standard by UL and ETL, RoHS Compliant
- 26AWG stranded copper wire x 4 pairs
- UL, cUL, and ETL Listed
- RoHS 2.0 compliant
- Double shielded: Each pair foil shielded / 4 pair braid shielded
- 50 micron gold plated RJ45 shielded plug
- Suitable for 10Gbase-T networks
- Max data rate: Up to 40Gps / 2000 Mhz (2Gb)
- Wiring: T568B standard
- Molded shielded snugless boot
|
