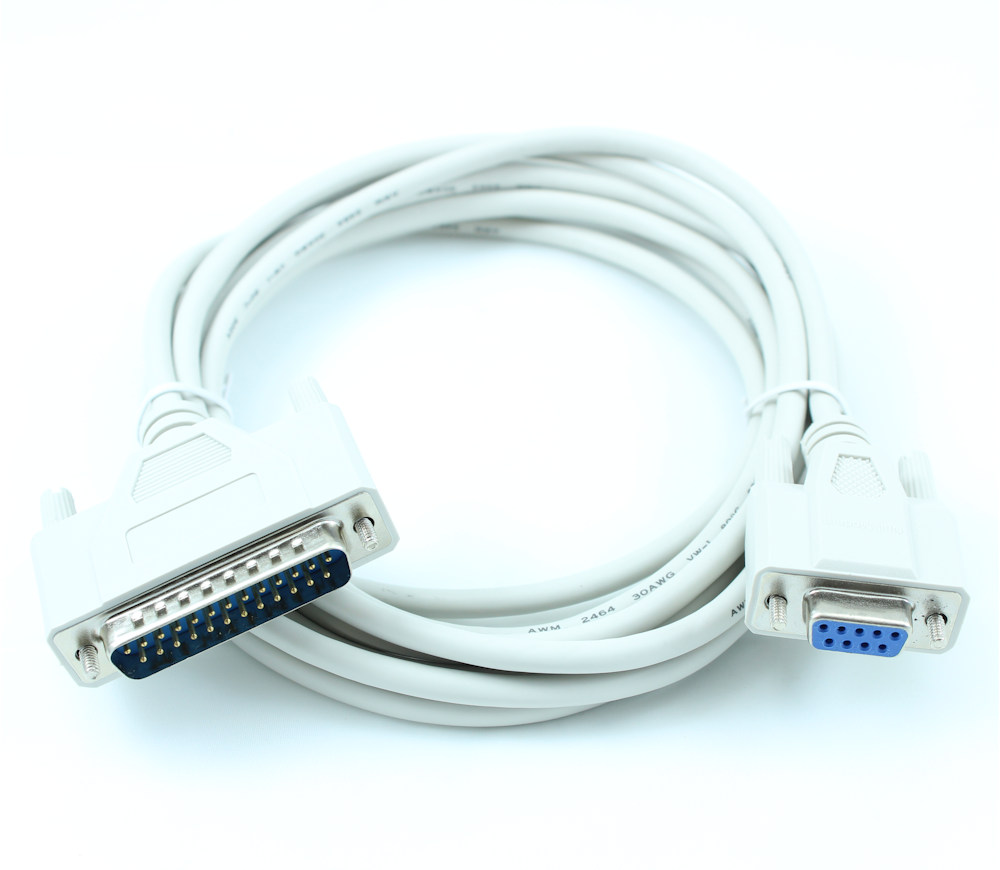

15ft Serial NULL-MODEM, DB25 MALE TO DB9 FEMALE CABLE
|
|
|
|
|
|
|
Lengths Available: |
6ft, 10ft, ea, |
|
Colors Available: |
|
|
Part Numbers this model: |
BE-180501, BE-180502, BC-NM925-15FM, |
| |
|
|
Sales Category: |
Serial, Modem, & Parallel Printer Cables |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
Serial DB9 (RS-232) Female |
Specification: |
|
|
Connector B: |
Serial DB25 (RS-232) Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
9, 25 |
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
DB9, DB25 |
|
| |
A null modem serial cable (frequently called a crossover cable) is used to connect two DTE devices together without the use of a DCE device in between. For this to happen, the Transmit (TXD) and Receive (RXD) pins on one of the serial connectors are flipped. Null modem is a communication method to directly connect two DTEs using an RS-232 serial cable. The name stems from the historical use of RS-232 cables to connect two teleprinter devices or two modems.
Specifications- Null-Modem terminations
- Pin-Outs: 1 - 4&5, 2 - 2, 3 - 3, 4 - 6, 5 - 7, 6 - 20, 7&8 - 8, 9 - 22, G G

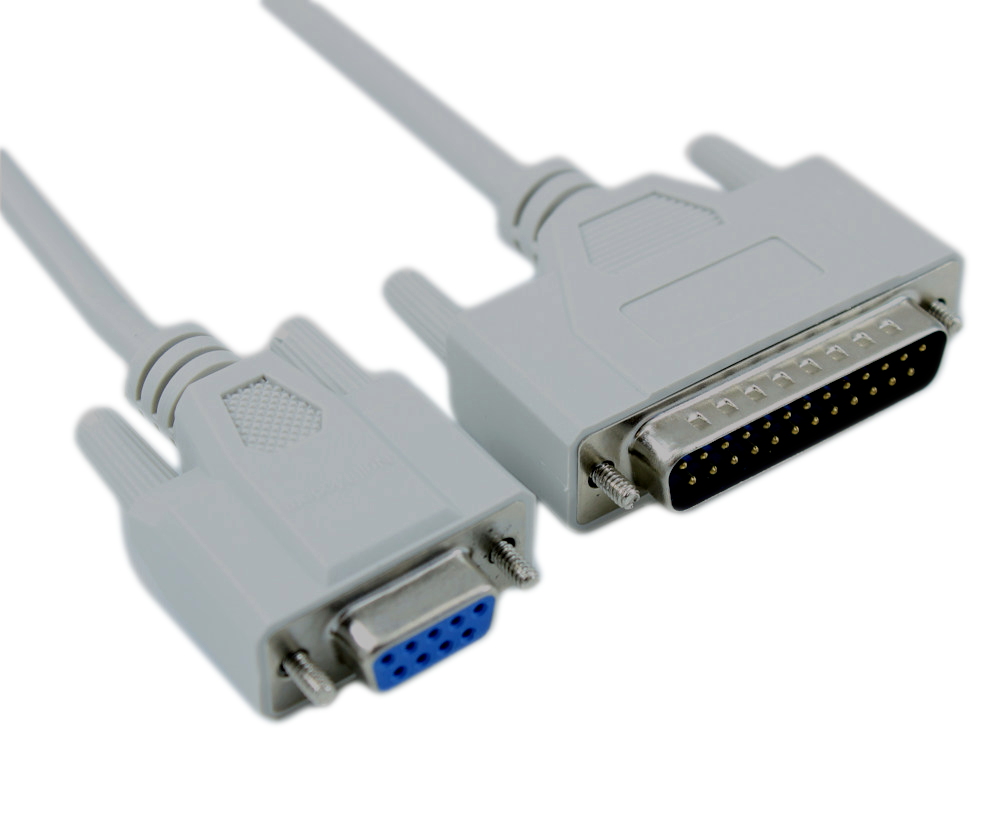

- Connector A: DB9 FEMALE, Connector B: DB25 MALE
- Cable Construction: PVC 45Pa, Ivory
- Nickel Plated conductors
- Cable Spec: 28AWG
|
