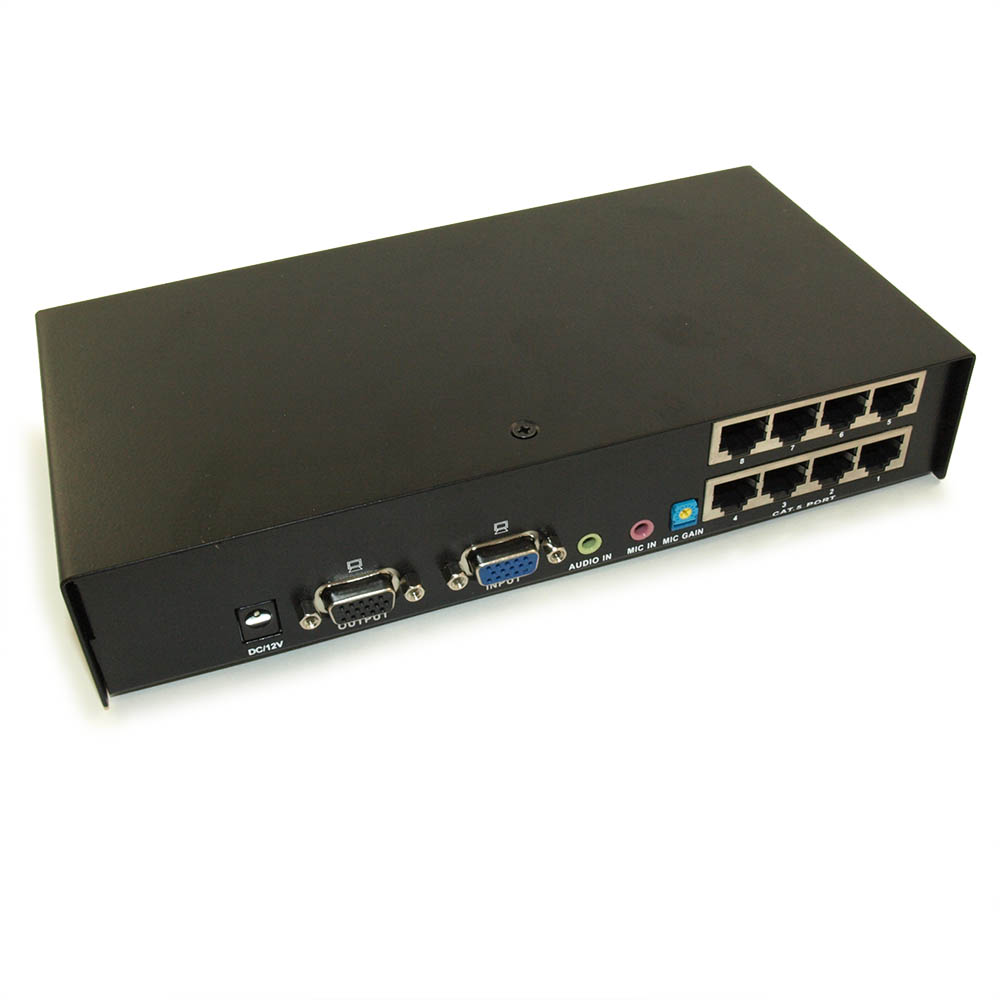

8 Port VGA Video/Audio Splitter/DISTRIBUTION Hub via CAT5/RJ45 up to 590ft

Lengths Available:
Colors Available:
Part Numbers this model:	BB-VAC5-EX8

Sales Category:	VGA Switch and Video Distribution	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	VGA HD15 Female	Specification:
Connector B:	VGA HD15 Female	Number Ports:	N/A
Export Tariff Code (HST):	8525503035	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	8 PORT
# Positions:		Shielding:
Convert From/To:		Type:

Extends video signal up to 300 meters (984ft) using the VGA Extender System and CAT5/RJ45 cable. This transmitter or local module provides 8 VGA/Audio distribution amplifier port over CAT5 plus local port that allows connection of another monitor near the computer. Supports 96KHz audio sampling rate and maximum video resolution of 2048x1536 @ 60Hz for up to 50meters, 1280x1024 @ 60Hz for up to 100meters, 1024x768 @ 60Hz for up to 180meters, 800x600 @ 60Hz for up to 200meters, & 640x480 @ 60Hz for up to 300meters.

This must be used in conjunction with BB-VAC5-ER Extender System's Receiver/Remote Module. See related product shown at right. 1 BB-VAC5-ER must be purchased for EACH receiving video unit.

Includes transmitter and power adaptor. Required Cables: Solid CAT5e/6 Cables.

(Connectors: 3.5mm/HD15/RJ45 Females)
