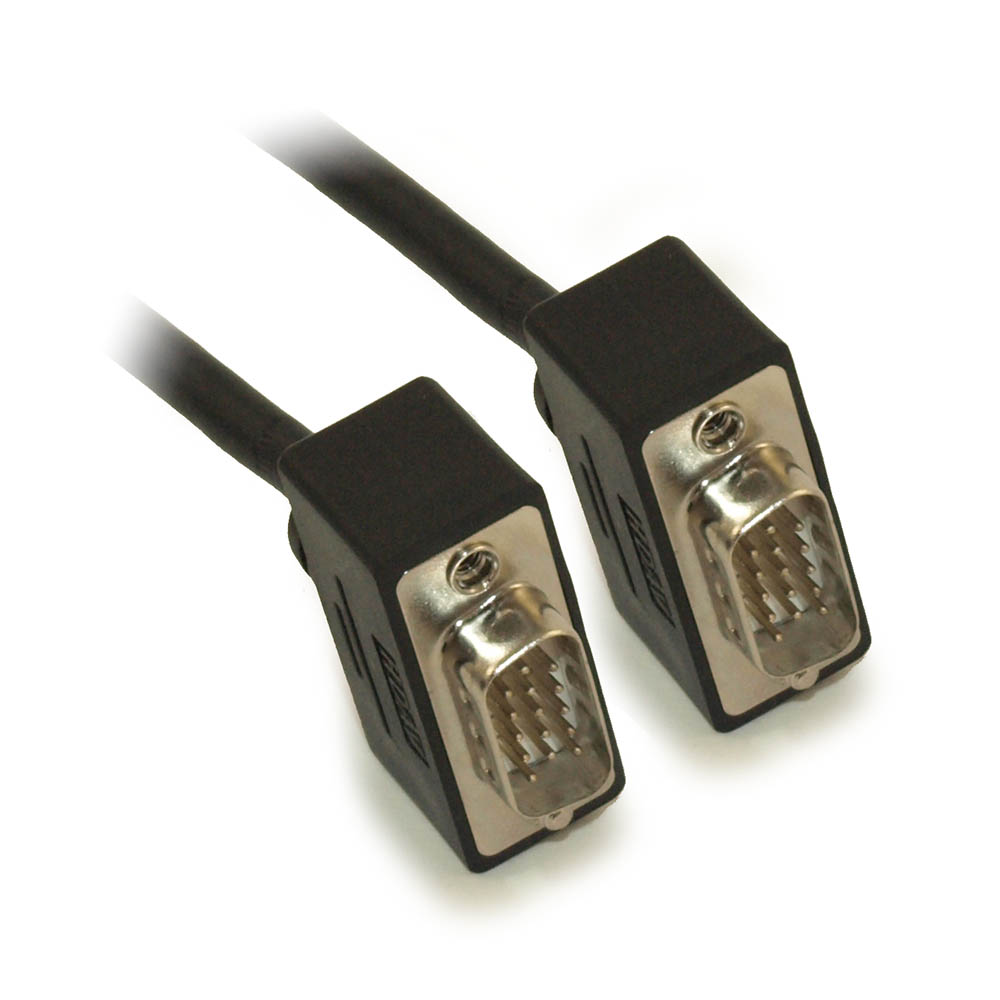

VGA ULTRA-THIN Male/Male Compact End Triple Shielded Cable
 |
|
| Lengths Available: | 1ft, 2ft, 2ft, 3ft, 3ft, 6ft, 10ft, 10ft, 15ft, 35ft, 75ft, 100ft, | ||
| Colors Available: | |||
| Part Numbers this model: | FE-VGAT-01, FE-VGATF-02, FE-VGAT-02, FE-VGATF-03, FE-VGAT-03, FE-VGAT-06, FE-VGATF-10, FE-VGAT-10, HA-VGAT-15, BB-CC388M1-35, BB-CC388M1-75, BB-CC388M1-100, | ||
| Sales Category: | VGA Cables & Adapters | Wire Gauge (AWG): | Not Specific / Not Applicable |
| Connector A: | VGA HD15 Male | Specification: | |
| Connector B: | VGA HD15 Male | Number Ports: | N/A |
| Export Tariff Code (HST): | 8544422000 | Transfer Rate: | |
| Feature / Style: | Mono | Images Length/Size Shown: | 100 FT |
| # Positions: | 15 | Shielding: | Shielded |
| Convert From/To: | Type: | HD15 | |
Connects any VGA video to any computer, switch or splitter with HD15 female port. Supports all VGA monitors including analog flat panel display, high resolution desktop, CAD and graphic workstations. Its UltraThin diameter provides space-saving design and flexibility not found on regular VGA cables. Interchangeable mounting allows you to replace the thumbscrews with included stand-off screws and can be mounted on a face plate. Unlike other thin VGA cable, this high performance cable goes up to 100ft without signal booster, and triple shielding for maximum graphics performance, prevents signal loss, screen ghosting & loss of color. cables are UL listed, have matched impedance, PVC jacket, molded ends with thumbscrews and inner hood soldered 360 degrees to the connector for complete end to end shielding.
This is the ''full-wired'' with all 15 pins. This is NOT compatible with some very old ''EGA'' monitors.
(Connectors: HD15 Male to Male; Length: 100ft)
- Outer Cable Diameter: 5.5mm
- 32 AWG for 3 coax lines
- 30 AWG for remaining connectors
