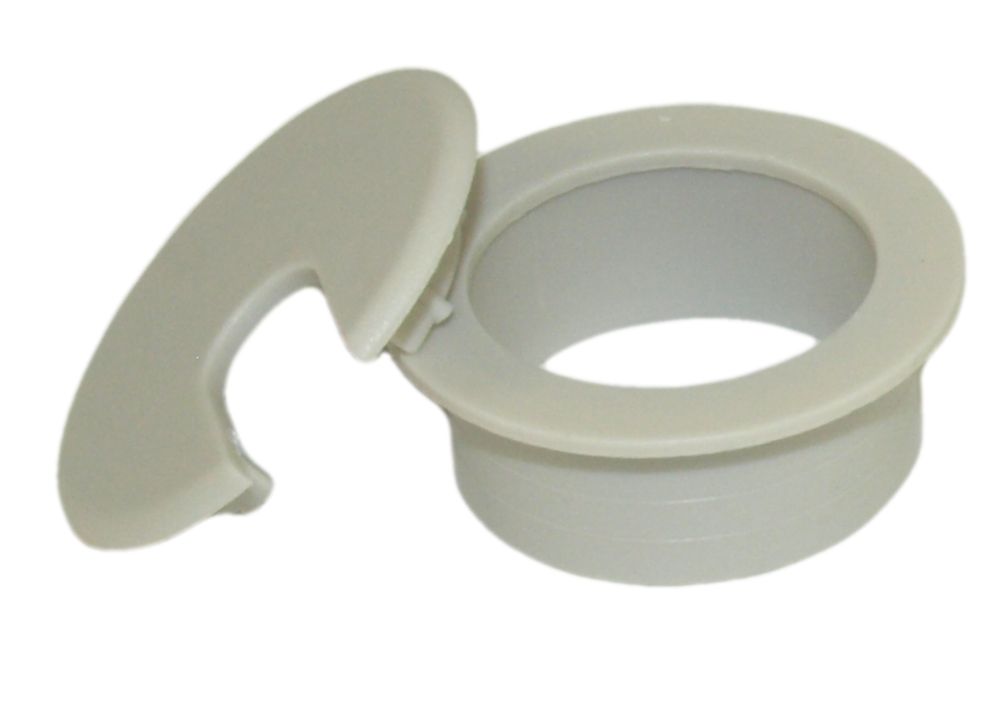

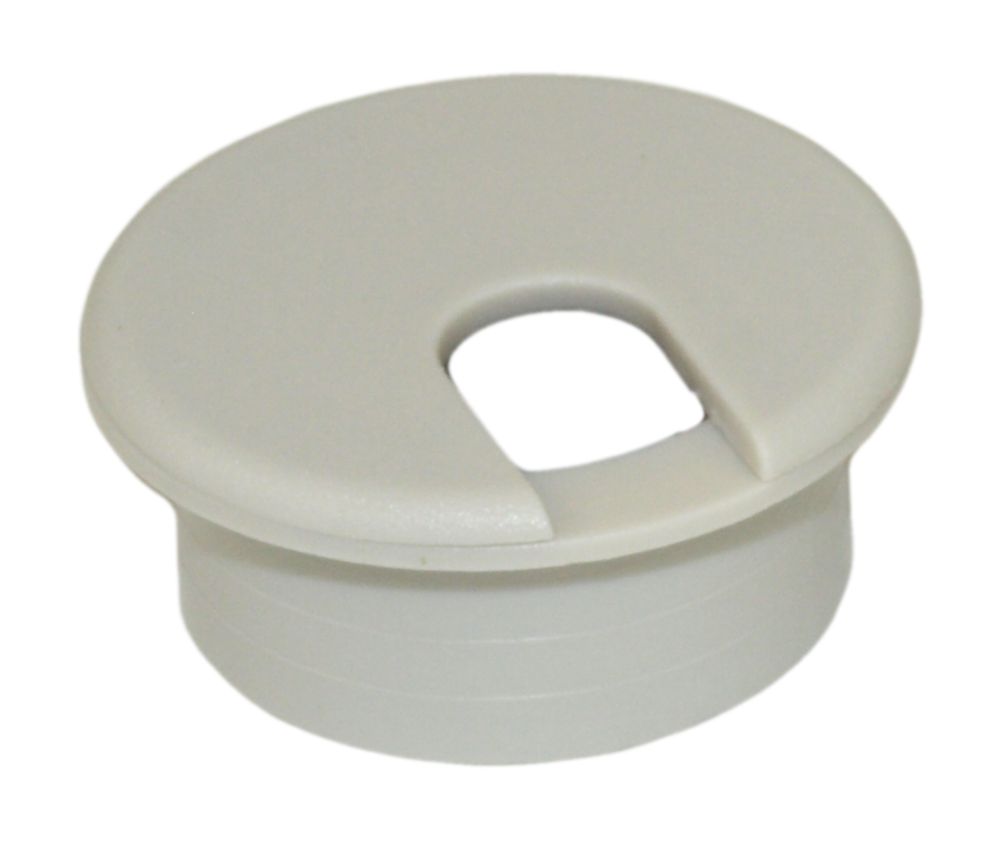

1 1/2" CUT-HOLE Light Gray Round Wire Management Grommet with Removable Lid

Lengths Available:	11/2in,
Colors Available:	Almond, Black, Brown, Coco Brown, Gray, Gray, White,
Part Numbers this model:	BA-1037LTGY,

Sales Category:	Grommets	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Not Applicable	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	3918105000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	1 1/2 IN
# Positions:		Shielding:
Convert From/To:		Type:

Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified, and either press or glue into place.

Specifications:

Cut-Hole Size Required: 1.5".
Inside Usable Diameter: 1.25"
Grommet Insert Width: 1.5"
Grommet Lid Width: 1.9"
Grommet Depth: .625"
Size Tolerances May Vary

Important Installation Note: The Grommets are manufactured to be slightly less that the hole size. For example, if we have a grommet advertised at 1.5 inches (example size ONLY), when measured on a caliper, it will measure at approx. 1.460 inches - or approx .04 inches LESS than the hole size of 1.5inches. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit, a small amount of glue or silicon may be needed.

Please see technical drawing (Product Manual) below for size and shape details.
