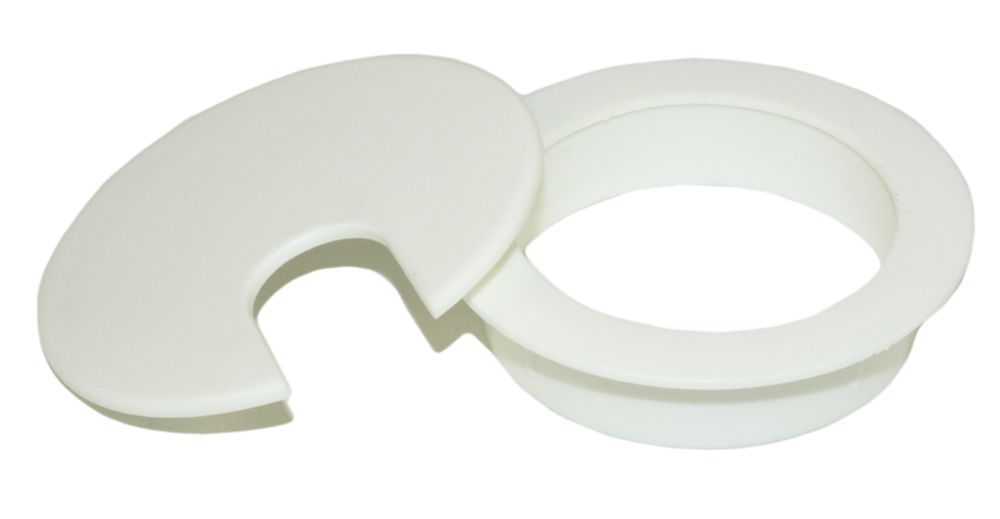

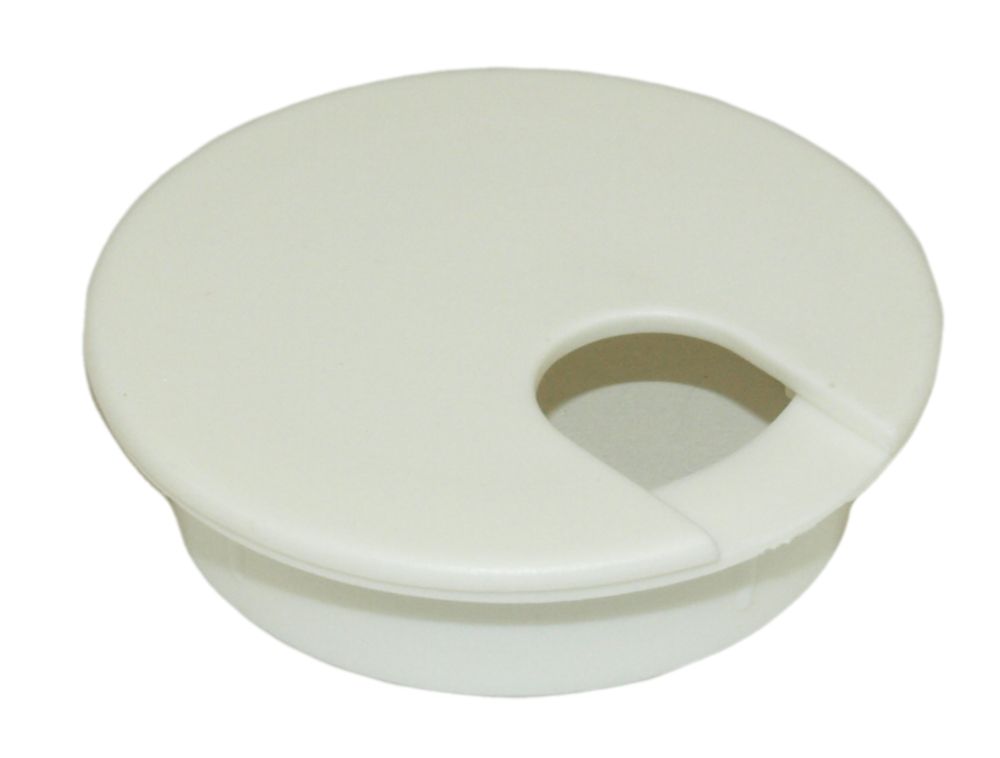

2 1/2"" CUT-HOLE SIZE White Round Wire Management Grommet w/ Removable Lid


 Lengths Available: 11/2in, 13/4in, 1in, 21/2in, 23/8in, 2in, 3in, 3/4in, 4in,
 Colors Available: Black, Brown, Brown, Gray, Tan, White,
 Part Numbers this model: BA-1037WH, BA-1039WH, BA-1041WH, BA-1031WH, BA-1038WH, BA-1035WH, BA-1043WH, BA-1108WH, BA-1040WH,

 Sales Category: Grommets  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 3918105000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 2 1/2 IN
# Positions: Shielding:
Convert From/To: Type:

Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified, and either press or glue into place.

Specifications:
  • Hole Size Required: 2.5".
  • Grommet Insert Width: 2.459"
  • Grommet Lid Width: 2.972"
  • Grommet Depth: Approx 0.625"
  • Inside Usable Diameter (Approx): 2.21"
  • Size Tolerances May Vary


Important Installation Note: The Grommets are manufactured to be slightly less that the hole size. For example, if we have a grommet advertised at 2.5 inches (example size ONLY), when measured on a caliper, it will measure at approx. 2.459" inches - or approx .04 inches LESS than the hole size of 2 inches. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit, a small amount of glue or silicon may be needed.

Please see technical drawing (Product Manual) below for size and shape details.
