Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

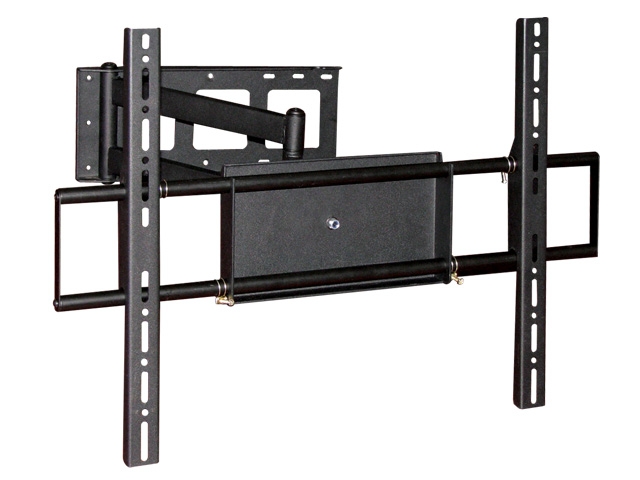

Adjustable Tilting up/down (+15° forward, -5° Back) and Swivel left/right (+-90°) Wall Mount Bracket for LCD Plasma (Max 110Lbs, 32~50inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most any 32in to 50in flat panel screen and plasma TVs up to 110 lb weight that comply with VESA mounting standards.

The REAR mounting plate is 17.7" wide. This mount can be single stud mounted (see note below).

The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.

Compatibility:

• Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 750x500.

• Mounting holes on television should be 27" or less apart horizontally & 19" or less apart vertically

• Maximum weight capacity: 110lbs/50kg

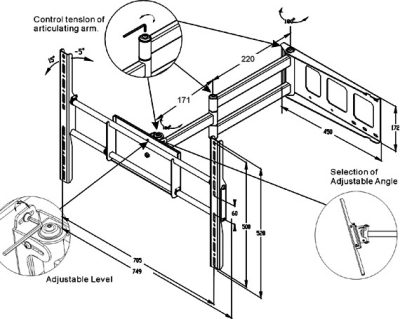

  Dimensions:

• Wall Back mount plate width: 17.71"

• Wall Back mount plate height: 6.77"

• TV Front mount plate width: 27.75"

• TV Bracket arm height: 20.47"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

  Range of Motion:

• Tilt: up to 5 degrees upward & 15 degrees down (variable) (Lock In Fixed Position)

• Swivel: -90 to +90 degree rotation (depending on TV size and location from wall)

• Mount continues to allow for left/right swivel after mounting, with tension controlable via supplied hex tool

• Extension from wall: 5" to 16"

  Design & Construction:

• Solid toughened steel construction

• Durable scratch resistant

• Black Finish

• Easy installation

  Included in Box:

• Mount

• Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)

• User manual

IMPORTANT INSTALLATION NOTE: The SINGLE STUD solution should only be performed if you are able to "center mount" it on that single stud. You should also be ABSOLUTELY SURE that you are locating your lag bolts in the CENTER of the wooden stud. If you are unable to "center mount" (which means that you are putting the lag bolts through the mount plate in the CENTER of the mount plate), you must mount in such a manner that you are using 2 studs.

Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits


NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
